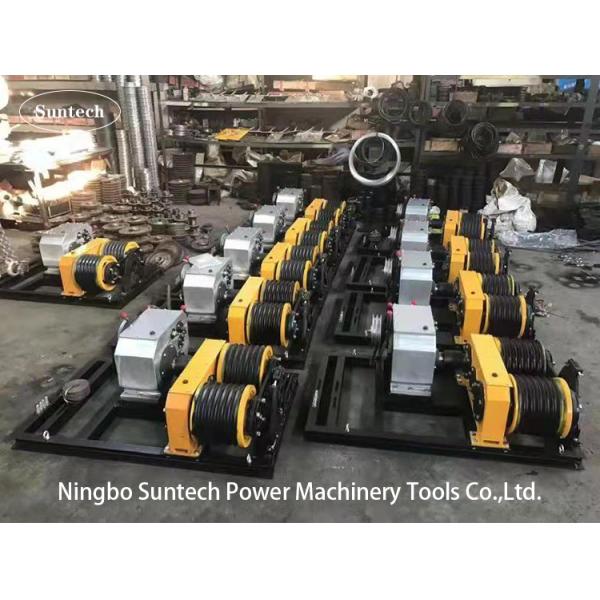

JJM1Q Line Construction 1 Ton Winch , Cable Pulling Gasoline Powered Winch
JJM1Q Line Construction 1 Ton Winch , Cable Pulling Gasoline Powered Winch
Specifications
Brand Name :
Suntech
Model Number :
JJM1Q
Certification :
CE,SGS
Place of Origin :
Ningbo,Zhejiang,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
200set/month
Delivery Time :
15-20 days
Packaging Details :
Wooden cases
Name :
Cable Pulling Winch
Application :
Transmission Line
Capacity :
10KN-80KN
Power :
Gas or diesel
Usage :
For pulling
Net Weight :
120kg
Description

JJM1Q YAMAHA Gasoline Cable Pulling Winch 1 Ton,Gasoline Powered WInch

Light Weight JJM1Q YAMAHA Gasoline Cable Pulling Winch 1 Ton

1. It is used for tower erection

2. It is used for pole setting

3. Stringing wire in electrical power line construction.

Winch can be modified as per requirement,

such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Technical Data JJM1Q YAMAHA Gasoline Cable Pulling Winch 1 Ton,Gasoline Powered WInch

Model NO. Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM1-Q Yamaha engine 4 HP (Slow) 10.0 0.8 36
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!
Electric motor (Slow) 10.0 0.8 48
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!

Maintenance and safe use

JJM1Q YAMAHA Gasoline Cable Pulling Winch 1 Ton,Gasoline Powered WInch

1. Engine use and maintenance, according to the machine instructions.
2. Lifting shall not exceed in line with use.
Lubricating oil surface must be kept within 1/4
3. gearbox, before using the machineoutside the bearing should add oil.
4. Automatic burning cars and interlock brakes, should always pay attention to the wear of the friction plate, the automatic braking gear and back tighten loose gap of 0.5mm, if the gap is greater than 1.5 mm, you must replace the friction plate, or likely to cause accidents.
5. Automatic brake load the gearbox, automatic normal lifting, due to the reverse gearis stuck, there is no "beep beep" sound when the back loose.
6. The bearing support frame is anchored on both sides of the reel anchor point, it can not be used as an anchor point to another location.
7. After the long-distance transport aircraft, before use, must be a detailed examination of the various components fastening screws loose, ministries parts is stagnant leak.Gearbox ZL4 aluminum body with screws on it should not be too tight and unnecessarydisassembly, but can not use a hammer.
JJM1Q Line Construction 1 Ton Winch , Cable Pulling Gasoline Powered Winch
