Pilot Wire Bundled Nylon Sheave 508x75MM Conductor Stringing Pulley Block
Pilot Wire Bundled Nylon Sheave 508x75MM Conductor Stringing Pulley Block
Pilot Wire Bundled Nylon Sheave 508x75MM Conductor Stringing Pulley Block
Pilot Wire Bundled Nylon Sheave 508x75MM Conductor Stringing Pulley Block
Specifications
Brand Name :
Suntech
Model Number :
SHDN508
Certification :
ISO
Place of Origin :
NINGBO
MOQ :
1 SET
Price :
Get Latest Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800 sets per sets
Delivery Time :
7-15DAYS AFTER DEPOSIT
Packaging Details :
Wooden Case
Material :
Nylon
Type :
pulley block
Application :
stringing,cable construction
Name :
ACSR Conductor Stringing Block
Size :
508x75MM
Rated load :
20KN
Usage :
Power construction
Sheave width :
75mm
Description

Pilot Wire Bundled Nylon Sheave 508x75MM Conductor Stringing Pulley Block

Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead

transmission line construction.

Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or

strengther nylon wheel with PU liner.

508mm stringing blocks

Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort.

1.Maximum suitable conductor ACSR400

2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ508×Φ408×75(mm)

3.Sheave dimension Φ508×Φ408×110(mm) can be customized

Technical Data

Item number Model Number of sheaves Rated load (kN) Weight (kg) Features

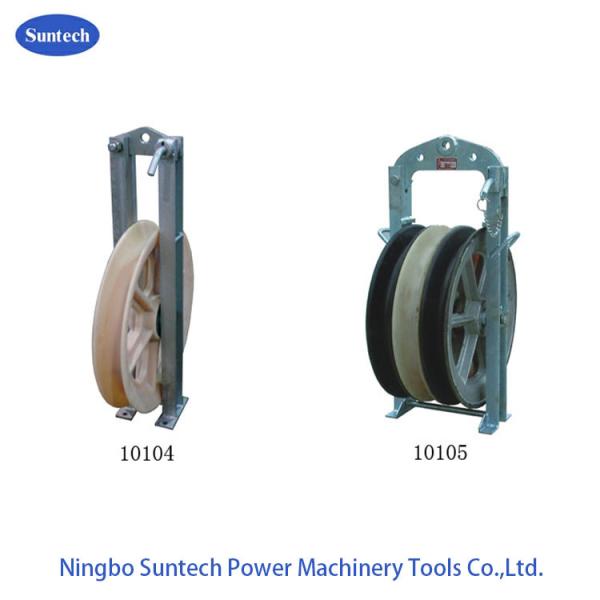

10101 SHD508 1 20 18 Rubber lined aluminium sheave
10102 SHS508 3 40 61

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave
10103 SHW508 5 60 93
10104 SHDN508 1 20 16 MC nylon sheave
10105 SHSLN508 3 40 47

Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave
10106 SHWLN508 5 60 79
10107 SHSQN508 3 40 38 MC nylon sheave
10108 SHSQN508 5 60 70

Pilot Wire Bundled Nylon Sheave 508x75MM Conductor Stringing Pulley Block

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
