Steel Reinforced Bare Aluminum Conductor For Overhead Electric Cable
Steel Reinforced Bare Aluminum Conductor For Overhead Electric Cable
Steel Reinforced Bare Aluminum Conductor For Overhead Electric Cable
Steel Reinforced Bare Aluminum Conductor For Overhead Electric Cable
Steel Reinforced Bare Aluminum Conductor For Overhead Electric Cable
Steel Reinforced Bare Aluminum Conductor For Overhead Electric Cable
Steel Reinforced Bare Aluminum Conductor For Overhead Electric Cable
Steel Reinforced Bare Aluminum Conductor For Overhead Electric Cable
Specifications
Brand Name :
Suntech Power
Model Number :
ACSR
Certification :
ISO9001,CCC
Place of Origin :
Ningbo,China
MOQ :
2000m
Price :
Get the newest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4000Ton/Month
Delivery Time :
10-15 workdays
Packaging Details :
Exported Wooden Case or Containers
Name :
Acsr Conductor Electric Cable
Type :
High Voltage
Application :
Overhead
Material :
Aluminum steel conductor
Usage :
High Tensile Steel Strand
Standard :
BS IEC ASTM DIN
Description
Overhead Cable Aluminum Conductor Steel Reinforced Bare Acsr Conductor Electric Cable
1.Product Description

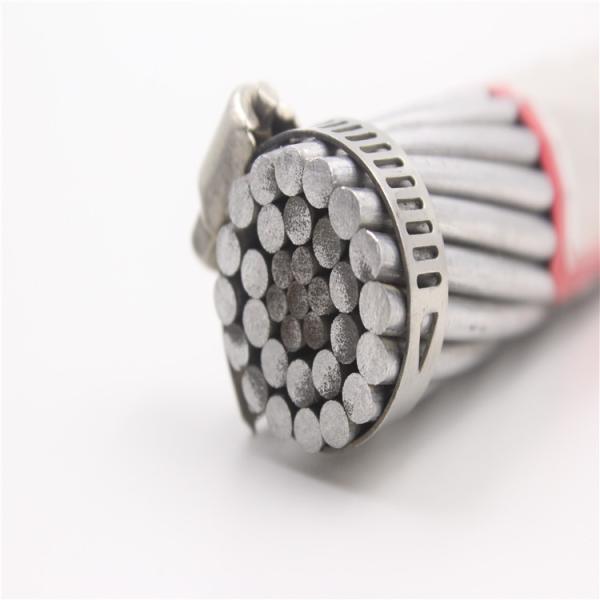

ACSR (Aluminum Conductor Steel Reinforced) Cable consisting of galvanized steel core, which surrounded by concentric layers of aluminum wire, and grease if necessary.

2.Application

ACSR, AAC, AAAC,ASCSR&ACAR conductor widely used in power transmission lines with various voltage levels. Since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys etc aerial line.

ACSR Technical Characteristics Based on Standard BS 215

Code name Nominal aluminum area Stranding and wire diameter Sectional area of aluminum Total sectional area Approx. overall diameter Approx. mass Calculated D.C. resistance at 20oC Calculated breaking load
Al Steel
mm2 No./mm mm2 mm2 mm kg/km ohm/km kN
RABBIT 50 6/3.35 1/3.35 52.88 61.7 10.05 214 0.5426 18.35
DOG 100 6/4.72 7/1.57 105 118.5 14.15 394 0.2733 32.7
WOLF 150 30/2.59 7/2.59 158.1 194.9 18.13 726 0.1828 69.2
DINGO 150 18/3.35 1/3.35 158.7 167.5 16.75 506 0.1815 35.7
LYNX 175 30/2.79 7/2.79 183.4 226.2 19.53 842 0.1576 79.8
ZEBRA 400 54/3.18 7/3.18 428.9 484.5 28.62 1621 0.0674 131.9

ACSR Technical Characteristics Based on Standard ASTM B 232

Code name

Nominal

AWG/MCM

 Stranding and wire diameter Sectional area of aluminium Total sectional area Approx. overall diameter Approx. mass Calculated D.C. resistance at 20oC Calculated breaking load
Al Steel
No./mm mm2 mm2 mm kg/km Ω/km kN
Turkey 6 6/1.68 1/1.68 13.29 15.48 5.04 54 2.1586 5.24
Swan 4 6/2.12 1/2.12 21.16 24.71 6.36 85 1.3557 8.32
Sparrow 2 6/2.67 1/2.67 33.61 39.22 8.01 136 0.8535 12.7
Robin 1 6/3.0 1/3.0 42.39 49.49 9.0 171 0.6767 15.85
Raven 1/0 6/3.37 1/3.37 53.48 62.38 10.11 216 0.5364 19.32
Quail 2/0 6/3.78 1/3.78 67.42 78.65 11.34 273 0.4255

23.62

3.Standard

BS-215-2-70 ACSR

BS EN 50182:2001

ASTM B233/B232M-99

Packaging & Shipping

PACKAGING&SHIPPING

Different package for customer choose !

For the Overhead Conductor(AAC AAAC ACSR ACAR ACSR/AW),we usually use the standard wooden drum to package as the belowing picture.We can design the different package types according to the customer's requirements.

Our Services

BEST SERVICES!

1.Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM /ODM

2.Own Factory: Reliable source of raw materials,we can offer you the factory price.

3.Free sample: Free Sample to provide ,but the sample freight must be paied by customers;

4.Speed Delivery: 15-30 days,Professional transport team.

5.All type test: Professional technical equipment ensure the high quality.

6.Warranty period: Free product warranty period is usual 3-5 years.
