IEC 60420 10KV High Voltage Vacuum Load Break Switch
IEC 60420 10KV High Voltage Vacuum Load Break Switch
IEC 60420 10KV High Voltage Vacuum Load Break Switch
IEC 60420 10KV High Voltage Vacuum Load Break Switch
IEC 60420 10KV High Voltage Vacuum Load Break Switch
IEC 60420 10KV High Voltage Vacuum Load Break Switch
Specifications
Brand Name :
Suntech
Model Number :
FZ(R)N21-12D
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Get The Newest Price
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
8000pcs per month
Delivery Time :
30-35days after Payment
Packaging Details :
Exporting Cartons and Pallets
Product Name :
Alternating-Current Load Switch
Altitude :
Under 1000M
Ambient Temperature :
-40℃-+40℃
Usage :
High and Low Voltage
Description

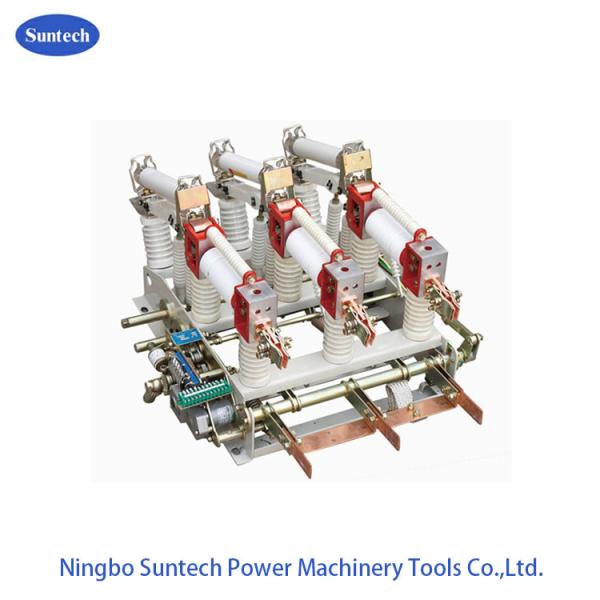

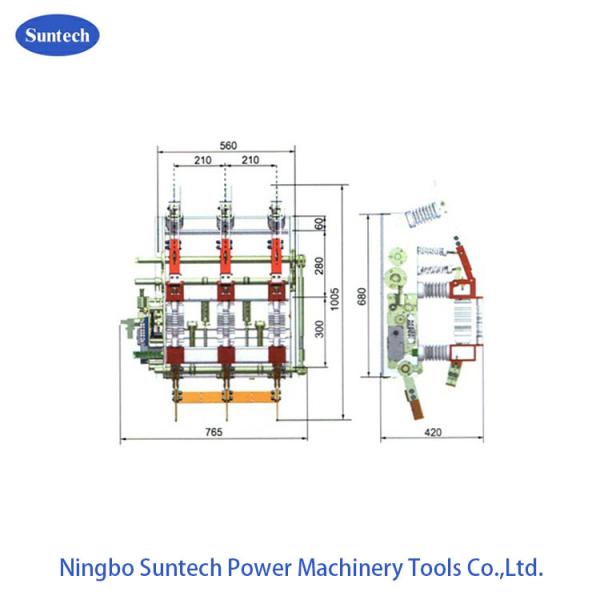

Indoor Long Electrical Life AC 10KV High Voltage Vacuum Load Break Switch

FZ(R)N2 1-12D indoor high-voltage alternatin-current vacuum load switch-fuse combination(“combination" for short) is used in power systems with an AC frequency of 50 Hz and a rated voltage of 10 kV to break load currents, overload currents and short-circuit currents. It particulaly applies to the places needing control, protection for oilfree maintenance-free and frequently-operated ring network power supply units and terminal power supply transformers.

The combination is charaterized by large breaking capacity, high safety and stability, long electrical life, support for frequent operation, less maintenance, etc. It has an apparent isolating gap, an earthing switch with making capability, an electric spring actuator and remote control capability.

1.1 Technical parameters

Item Unit Reference value
Rated voltage kV 12
Rated frequency Hz 50
Maximum rated current of the fuse A 125
Rated transfer current A 3150
Rated short-circuit breaking current(expected effective value) kV 31.5
Rated short-circuit making current (expected peak value) kV 80

1min power-frequengy

withstand voltage

 Vacuum gap, interpole, pole to-ground kV 42
lsolating gap kV 48

Lightning impulse

withstand voltage

 Vacuum gap, interpole, pole-to-ground kV 75
Isolating gap kV 85
Output energy of the fuse striker J 2-5

1.2 Technical parameters for disconnector assembling

Item Unit Reference value
Non-synchronous making of the three contacts mm ≥3
Deviation of making of the three contacts mm ≤1
Positive pressure of the contact switch N 260±30
Size of the gap mm ≥150
Circuit resistance μΩ ≤40

Product standards

1. GB 16926-1997 High-voltage alternating-current load switch-fuse combinations

2. IEC 60420 High-voltage alternating-current load switch-fuse combinations
Ambient condition

1. The altitude: under 1000M.

2. The ambient temperature: -40℃-+40℃.

3. The relative humidity of air: monthly≤90%, daily≤95%.
