VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam
VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam
VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam
VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam
VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam
VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam
VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam
VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam
Specifications
Brand Name :
Tongveo
Model Number :
TEVO-VHD202U
Certification :
ISO9001,CE,FCC,ROHS
Place of Origin :
China
MOQ :
1 piece
Price :
USD$479/piece
Payment Terms :
L/C, T/T, Western Union, Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability :
3000 pieces per month
Delivery Time :
1-10 working days
Packaging Details :
Foam packaging inside; standard carton packaging outside
Image Sensor :
1/3 inch Exmor CMOS
Effective pixel :
2.1 mega pixel（16:9）
Zoom :
20x optical zoom
Horizontal Angle :
Near-end 55.5deg～Far-end 3.0deg
Control Protocol :
VISCA PELCO-D PELCO-P（RS-232 RS485）
Video output :
USB
Description

TONGVEO VHD202U USB2.0 1080P PTZ Camera 20x Zoom Camera Rotatable Screen Cam Laptop Webcam With H.264 for YouTube Skype Facebook

Main features
- USB video output
- 1/3" Exmor CMOS
- 2.1 mega pixel
- HD1080P
- 20X optical zoom
- Pan: 0-340deg Tilt :0deg~120deg
- Support RS-232, RS-485,
- With IR remote control
- Supports H.264
Tips: Press the Number(1-9) directly to call the reserved preset. Fast and Smooth

PRESET+Number: To set preset position of this number

RESET+Number: To clear preset position of this number.

Highlight

  • 20x optical zoom

  • Sleek and intelligent design

  • Plug & Play USB Connectivity

  • Crystal clear HD1080P image quality

  • Preset: 9 via IR remote setting (255 via RS232)

  • Wide field of view with no video distortion

  • 1/3 inch high quality, 2.1MP (16:9) CMOS sensor

  • Superior quality with Full Glass Lens Material

  • Support ceiling mount, wall mount and tripod mount (Reverse mountable)

  • 2D and 3D NR for best video quality in different lighting conditions

  • Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control

  • Compatible with most leading video conferencing software and platform

  • Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth

Pictures

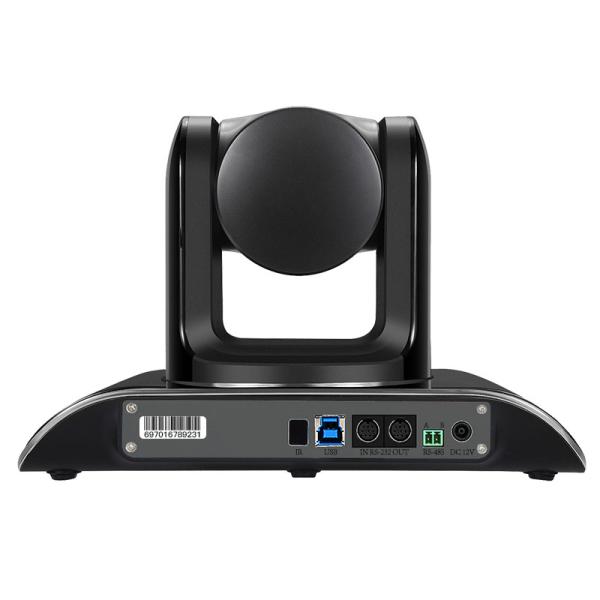

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam


VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop WebcamVHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam

Specification

Product No. TEVO-VHD202U
Image Sensor 1/3 inch Exmor CMOS
Effective pixel 2.1 mega pixel(16:9)
Horizontal Resolution 1080p30/25 720p30/25
Signal standard NTSC/PAL
Zoom 20x optical zoom
Focal length F=4.7mm(wide)-94.0(tele)
Horizontal Angle Near-end 55.5deg～Far-end 3.0deg
Gain control Auto/manual
Focus Auto/manual
SNR ratio ge50dB
Wide dynamic D-WDR
Shutter speed 8to1/ 10000s(auto)
Preset position IR remote control supports 9 presets
PELCO Protocol supports 255 presets
Pan/Tilt movement range Pan: 340deg(max speed 80deg/S) Tilt: 120deg(max speed 60deg/S)
Control terminal RS-232 RS485
Control Protocol VISCA PELCO-D PELCO-P(RS-232 RS485)
Video output USB
Noise Reduction 2D/3D
Work temperature -10degC-~50degC
Storage temperature -20degC~60degC
Baud rate 2400/4800/9600/19200bps
Decoder Built-in
Address set 1~255
Installation Support desktop Tripod Wall mount and Ceiling mount
Power supply DC12 V/ 2A
Power consumption 12 W
Net weight/Gross weight 1.7kg/3.5kg
Dimension(LXWXH) 260*175*180 mm /296*255*218mm (before / after packing)
Accessories DC 12V Power adaptor, IR remote control, Manual, USB cable, Ceiling brackets & screws.
What's in Box?
1 x Camera
1 x DC/12V power adaptor
1 x IR remote control
1 x Manual
1 x USB cable
1 x Brackets & screws
1 x Warranty
1 x Certificate of qualification
