Specifications
Supply Ability :
5000000
Payment Terms :
L/C, T/T, Western Union, Paypal
Brand Name :
Tongveo
Model Number :
TEVO-NV20A
Certification :
ISO9001,CE,FCC,ROHS
Place of Origin :
China
MOQ :
1 piece
Delivery Time :
1-10 working days
Packaging Details :
Foam packaging inside; standard carton packaging outside
Image Sensor :
1/3" CMOS
Effective Pixel :
2.38 Mega Pixel(16:9)
Horizontal Resolution :
1080P60/50/30/25, 1080I60/50, 720p60/50
Focal Length :
F=5.5mm(Wide)-110(Tele)
Zoom :
20X Zoom
Horizontal View Angle :
Near-End 54.7 Deg;-Far-End 3.3 Deg;
Sn Ratio :
>=50dB
Preset Position :
Remote-Controller Support 9 Presets
Pan Movement Range :
Pan: 350 Deg; (Max Speed 80deg;/S)
Tilt Movement Range :
Tilt: 90 Deg; (Max Speed 60deg;/S)
Control Terminal :
RS-232, RS485
Control Protocol :
Visca, Pelco-D, Pelco-P (RS-232, RS485)
Video Output :
USB, SDI, HDMI
Installation :
Support Desktop, Tripod, Wall Mount and Ceiling Mo
Accessories :
DC 12V Power Adaptor, IR Remote Control, Ceiling B
Trademark :
CE, FCC, ROSH,
Transport Package :
Carton
Specification :
1.5kg/2.85kg(before / after packing)
Origin :
China
HS Code :
8525801302
Port :
Shenzhen, China
Type :
Video Conferencing System
Video :
Video
Composition :
Camera, IR Remote, USB Cable
Communication :
Wired
Pointing Feature :
Omni-Directional
Color :
Black
Description

TONGVEO NV20A USB HDMI Conference Camera HD 1080p PTZ Camera SDI Cam 20X Zoom Video Conference Camera
USB, 3G-SDI, HDMI
HD1080P
2.38 mega pixel
20X optical zoom
Pan: 350° Tilt : 90°
VISCA, PELCO-D/P, RS232, RS485
Tips1: Press the Number(1-9) directly to call the reserved preset. Fast and Smooth

PRESET+Number: To set preset position of this number.
RESET+Number: To clear preset position of this number.

Tip2: SDI support 328ft(100m)

3G-SDI video transfer, HDMI support 98ft(30m) HD video transfer and USB support 66ft(20m) HD video transfer.

Tip 3: Image Flip and Image Mirror.

Press MENU - IMAGE - Mirror, and adjust Left/Right/UP/DOWN to manipulate image flip and Mirror.

Main features of This NV20A USB HDMI Conference Camera

  • 20x optical zoom

  • Sleek and intelligent design

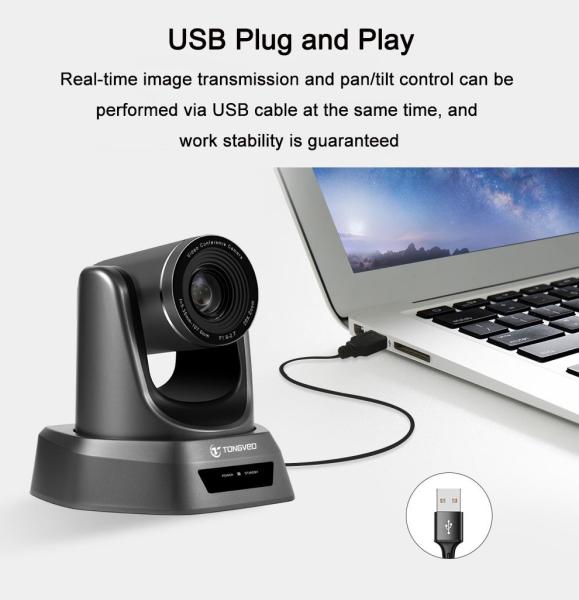

  • Plug & Play USB Connectivity

  • Accurate, smooth and silent PTZ Movement

  • Preset: 9 via IR remote setting (255 via RS232)

  • Wide field of view with no video distortion

  • 1/3 inch high quality, 2.1MP (16:9) CMOS sensor

  • Superior quality with Full Glass Lens Material

  • Support HD1080P60/50/30/25,720P60/50,etc.

  • Support USB, HDMI and SDI 3 video output at the same time

  • Support ceiling mount, wall mount and tripod mount (Reverse mountable)

  • 2D and 3D NR for best video quality in different lighting conditions

  • Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control

  • Compatible with most leading video conferencing software and platform

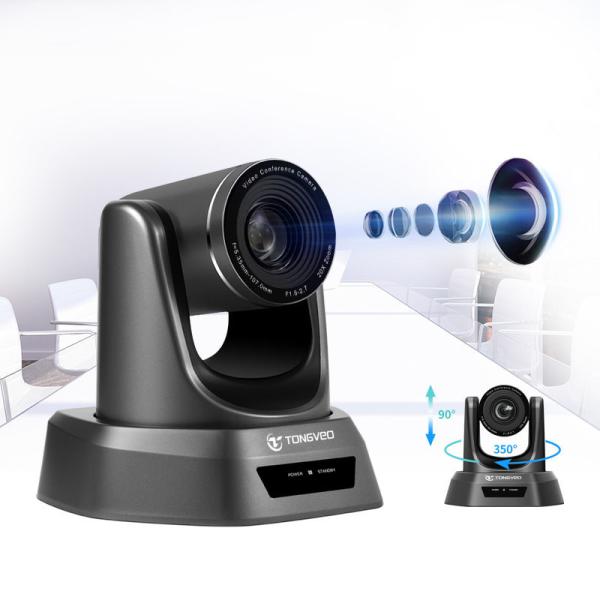

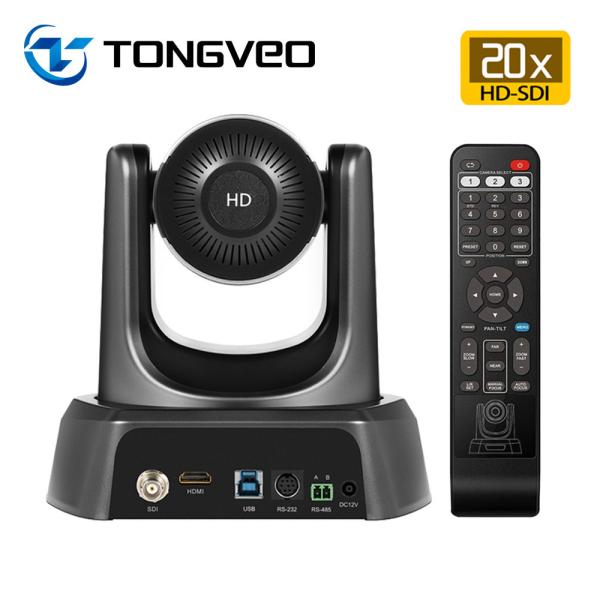

Pictures of This NV20A USB HDMI Conference Camera

HDMI SDI Church PTZ Camera 20X optical zoom camera for large conference room
HDMI SDI Church PTZ Camera 20X optical zoom camera for large conference roomHDMI SDI Church PTZ Camera 20X optical zoom camera for large conference roomHDMI SDI Church PTZ Camera 20X optical zoom camera for large conference roomHDMI SDI Church PTZ Camera 20X optical zoom camera for large conference room
HDMI SDI Church PTZ Camera 20X optical zoom camera for large conference roomHDMI SDI Church PTZ Camera 20X optical zoom camera for large conference roomHDMI SDI Church PTZ Camera 20X optical zoom camera for large conference roomHDMI SDI Church PTZ Camera 20X optical zoom camera for large conference roomHDMI SDI Church PTZ Camera 20X optical zoom camera for large conference roomTechnical Parameters of This NV20A USB HDMI Conference Camera

Model No.

TEVO-NV20A

Image Sensor

1/3" CMOS

Effective pixel

2.38 mega pixel(16:9)

Horizontal Resolution

1080P60/50/30/25, 1080i60/50, 720P60/50

Focal length

F=5.5mm(wide)-110(tele)

Signal standard

NTSC/PAL

Zoom

20x zoom

Horizontal view angle

Near-end 54.7°~Far-end 3.3°

Gain control

Auto/manual

Focus

Auto/manual

SN ratio

≥50dB

Shutter speed

1/30 sec to 1/10,000s, auto

Preset position

Remote-controller support 9 presets

PELCO Control Protocol supports 255 presets

Pan/Tilt movement range

Pan: ±175°(max speed 80°/S), Tilt: -35°~+55°(max speed 60°/S)

Control terminal

RS-232, RS485

Control Protocol

VISCA, PELCO-D, PELCO-P (RS-232, RS485)

Video output

USB, SDI, HDMI

Noise Reduction

2D/3D

Work Temperature

-10°~50°

Work Humidity

-20°~60°

Baud rate

34800/9600bps

Decoder

Built-in

Address Set

1~64

Installation

Support desktop, Tripod, Wall mount and Ceiling mount

Power supply

DC12V/2A

Power

12W

Weight

1.5kg/2.85kg(before / after packing)

Size

162*172*175mm /257*220*210mm (before / after packing)

Accessories

DC 12V Power adaptor, IR remote control, Ceiling brackets & screws, Manual

What is In The Box?
1 X Camera
1 X USB Cable
1 X DC 12V power adaptor
1 X IR remote control
1 X Celling Brackets
1 X Manual
