IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera
Specifications
Supply Ability :
50000PCS Per Year
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Brand Name :
Tongveo
Model Number :
TEVO-VHD102U
Certification :
ISO9001,CE,FCC,ROHS
Place of Origin :
China
MOQ :
1 piece
Delivery Time :
1-10 working days
Packaging Details :
Foam packaging inside; standard carton packaging outside
Model NO. :
TEVO-VHD102U
Horizontal Angle :
Near-End 47°~Far-End 5.3°
Focus :
Auto/Manual
Trademark :
Tongveo
Transport Package :
Giftbox Package
Specification :
conference camera
Origin :
China
HS Code :
8525801302
Port :
Guangzhou, China
Description

10X Optical Zoom 1080P Conference Video PTZ Camera USB2.0 Output

1. 10x optical zoom
2. USB Video Output
3. Sleek and intelligent design
4. Plug & Play USB Connectivity
5. Crystal clear HD1080P image quality
6. Wide angle 90°,Pan: 0-340°
7. RS-232,RS-422,RS-485, IR remote control
8. 2.1 mega pixel
Items
Parameters
Image Sensor
1/2.9 inch SONY HD CMOS
Effective pixel
2.1 mega pixel (16:9)
Horizontal Resolution
1080p 30/25 720p 30/25
Signal standard
NTSC/P AL
Zoom
10x optical zoom
Focal length
F=5.0mm(wide)-50.0(tele)
Horizontal Angle
Near-end 47°~Far-end 5.3°
Gain control
Auto/manual
Focus
Auto/manual
SNR ratio
≥50dB
Wide dynamic
D-WDR
Shutter speed
8to1/ 10000s(auto)
Preset position
IR remote control supports 9 presets
PELCO Protocol supports 256 presets
Pan/Tilt movement range
Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)
Control terminal
RS-232, RS485
Control Protocol
VISCA, PELCO-D, PELCO-P (RS-232, RS485)
Video output
USB2.0
Video Compression Format
YUV, MJPEG, H.264
Noise Reduction
2D/3D
Work temperature
-10°C-~50°C
Storage temperature
-20°C~60°C
Baud rate
2400/4800/9600/19200bps
Decoder
Built-in
Address set
1~256

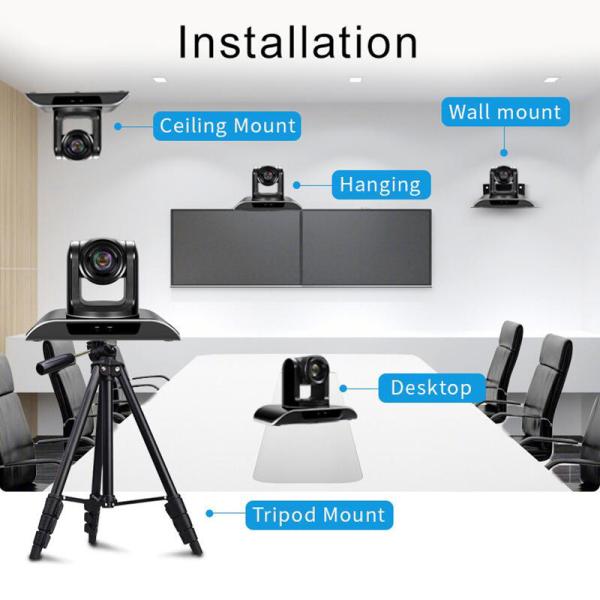

Installation
Support desktop, Tripod, Wall mount and Ceiling mount
Power supply
DC12 V/ 2A
Power consumption
12 W
Net weight/Gross weight
1.7kg/3.5kg
Dimension(LXWXH)
260*175*180 mm /296*255*218mm (before / after packing)
Accessories
DC 12V Power adaptor, IR remote control, Manual, RS232 cable, USB 2.0 cable, Ceiling brackets & screws.

IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera

IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ CameraIR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera

IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera


IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera

Packaging & Shipping

1. Delivery:
For sample orders, we have products in stock; same day shipping when we get the order;
For purchase order, we will ship within 3-7 working days;
2. Packaging:

Foam packaging inside; standard carton packaging outside.

IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera

IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera

Company Profile

1.Who we are?
Due to our extensive partner network, Tongveo can play a decisive role in international or global video conferencing projects. We focused on developing and implicating the technology of video conferencing products,SD,HD PTZ video conference camera and omnidirectional conference microphone speakers.We are proffessional and we have good reputation in product development, production, sales and after service. We can design produce and sale directly in order to ensure the most competitive price and excellent quality under control.All of our products are compliant with CE,FCC and Rosh standards. We have established a sound sales & service network.Offices has been set up in Shenzhen, Hongkong, Beijing, Guangzhou, Xi'an,etc.We also successfully sold our products to many foreign countries. We are sincerely to make any meeting better and easier! Welcome your OEM/ODM orders.

IR Remote Control 10X TEVO VHD102U USB2.0 1080P PTZ Camera2. What we do?
We designing, tooling, produce and sale directly in order to ensure the most possible competitive price and excellent quality under Control. Our Product: Video conference camera,Video conference omnidirectional microphone, video Conference software product Video conference system, audio conference system, Network Conference system, Education system, Tele-medicine system, Courtrooms, Public safety system, Financial facility, Airports, Prisons, Highways, Port, Forest Fire Prevention, Schools and Customs systems.
Our advantages
1.Strictly QC process
1) Four times strict 100% inspection Raw Material Inpection + Semi-finished product inspection + Finished product inspection + Customer commissioned inspection (AQL 2.5 Standard)
2) 72 hours of pre-delivery aging test. We owns our independent aging test lab and all products undergo 72-hour aging test before shipment.
2. Warranty We provide 24 months wanrranty guarantee, replacement within 3 months, and 24 months free maintainance. Enjoy lifetime technical support service. (firmware upgrade service etc )
3. Qualified Certificates. Our products are produced in strict compliance with international standards ( CE, FCC, RoHS, VCCI, ISO 9001 ).
4. Japanese Production Guide. Completely follow the strict Japanese production standards to guide production.
