1080P HD IP Conference Camera 10X 20X PTZ Conference Camera
1080P HD IP Conference Camera 10X 20X PTZ Conference Camera
1080P HD IP Conference Camera 10X 20X PTZ Conference Camera
1080P HD IP Conference Camera 10X 20X PTZ Conference Camera
1080P HD IP Conference Camera 10X 20X PTZ Conference Camera
1080P HD IP Conference Camera 10X 20X PTZ Conference Camera
Specifications
Brand Name :
Tongveo
Model Number :
TEVO-VHD20N
Certification :
ISO9001,CE,FCC,ROHS
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
3000 pieces per month
Delivery Time :
1-10 working days
Packaging Details :
Foam packaging inside; standard carton packaging outside
Model :
VHD20N IP PTZ camera
Zoom :
20X optical zoom
Effective pixel :
2.38 mega pixel
Sensor :
1/3" HD CMOS
FOV :
55.5 DEGREE
Resolution :
1080P(1920*1080) 720P(1280*720)
Description

HD conference camera 10X 20X PTZ camera conference system for telemedicine

The TEVO-VHD20N Pan/Tilt/Zoom (PTZ) Camera is obtained with RJ45, HDMI , 3G-SDI, and USB2.0 video outputs. 1/3 HD CMOS with 2.38 mega pixel and Full HD 1080p output resolution, and a high dynamic image at 30fps. Wide shooting angle, high-speed, quiet, and precise positioning with smooth PTZ operations. 255 presets, stable remote controlling. Applicable for video conferencing in a medium conference room.

1080P HD IP Conference Camera 10X 20X PTZ Conference Camera

Main Features:

* 20x optical zoom,Sleek and intelligent design,USB, HDMI, SDI, RJ45 Connectivity

* Crystal clear HD1080P image quality,Wide field of view with no video distortion

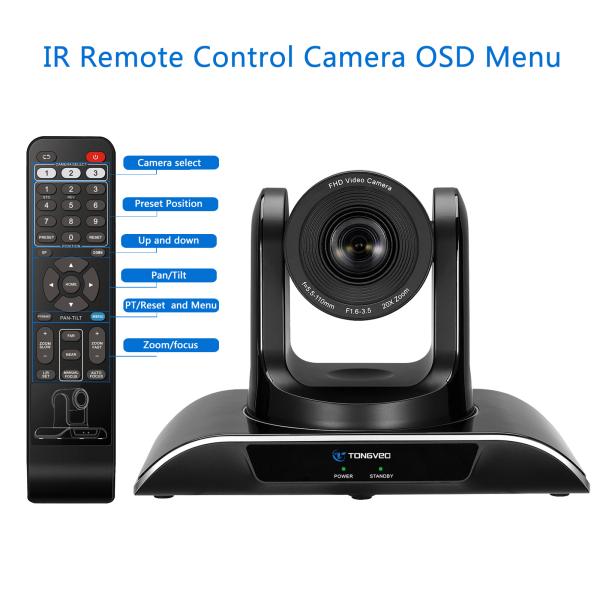

* Preset: 9 via IR remote setting (256 via RS232)

* 1/3 inch high quality, 2.38MP (16:9) CMOS sensor

* Superior quality with Full Glass Lens Material

* Support ceiling mount, wall mount and tripod mount (Reverse mountable)

* 2D and 3D NR for best video quality in different lighting conditions

* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control

Model No.
VHD-20N Conference PTZ camera
Image Sensor
1/3 inch Exmor CMOS
Effective pixel
2.38 mega pixel(16:9)
Horizontal Resolution
1080p30/25, 720p30/25
Signal standard
NTSC/PAL
Zoom
20x optical zoom
Focal length
F=4.7-94mm
Horizontal Angle
Near-end 55.5°~Far-end 3.0°
Gain control/Focus
Auto/manual
SNR ratio
≥50dB
Wide dynamic
D-WDR
Speed
Pan: 0~100°/S(Default: 29°/S), Tilt: 0~80°/S (Default: 20°/S)
Preset position
Preset Point: 9 for remote control, 255 for PELCO, 64 for VISCA.
Pan/Tilt movement range
Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)
Control terminal
RS-232, RS485
Control Protocol
VISCA, PELCO-D, PELCO-P(RS-232, RS485)
Video output
USB,HDMI,SDI,RJ45
Audio input port
3.5mm
Installation
Support desktop, Tripod, Wall mount and Ceiling mount

1080P HD IP Conference Camera 10X 20X PTZ Conference Camera

Highlights:

1. 20X optical zoom 1080P HD video camera

Delivers professional video quality to a conference room or event space. Brilliantly sharp video resolution and outstanding color reproduction

2. 3.5mm Audio input

With a 3.5mm audio input, you can even input a microphone or computer output into the camera, and your RTMP steam goes out to Youtube or Facebook

1080P HD IP Conference Camera 10X 20X PTZ Conference Camera
