M12 Ethernet Switches DC 12-52V PoE 48-57V Wall-mounted 8-port X-coded Femal Connector
M12 Ethernet Switches DC 12-52V PoE 48-57V Wall-mounted 8-port X-coded Femal Connector
M12 Ethernet Switches DC 12-52V PoE 48-57V Wall-mounted 8-port X-coded Femal Connector
M12 Ethernet Switches DC 12-52V PoE 48-57V Wall-mounted 8-port X-coded Femal Connector
Specifications
Brand Name :
KRONZ
Model Number :
U-08T-M12
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Product Name :
M12 Industrial Ethernet Switch
Description :
Unmanaged Switch M12 Series Gigabit 8-port
Power Port :
M12 A-code 5-pin female connector
Indicator :
PWR、Link/ACT、PoE
Switching capacity :
16Gbps
MAC table :
4K
PoE Externsion :
8 x PoE/PoE+
Power :
12-52V DC
Description

M12 Ethernet Switches DC 12-52V PoE 48-57V Wall-mounted 8-port X-coded Femal Connector

Product Description

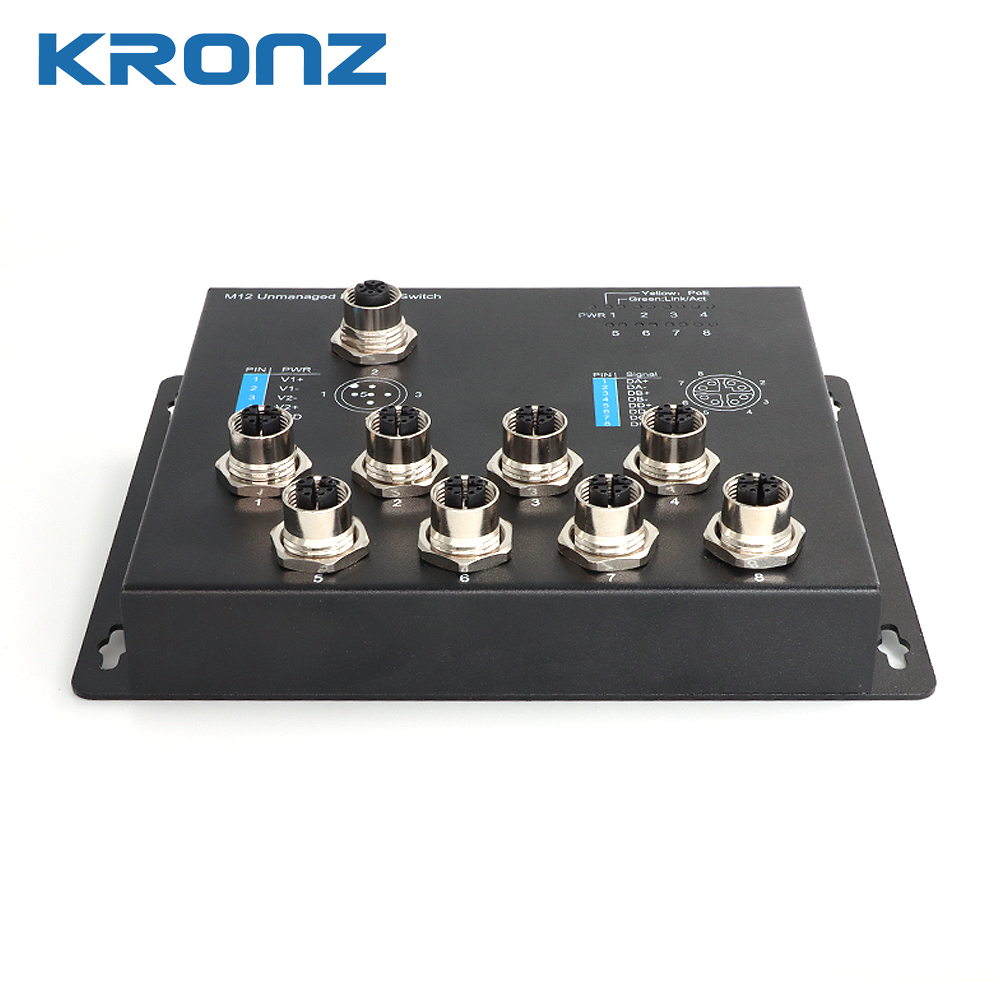

The U-08T-M12 unmanaged Ethernet switch is designed for industrial applications and uses M12 connectors to ensure a tight, sturdy connection and guarantee reliable resistance to environmental disturbances such as vibration and shock. This series of Ethernet switches provides 5 or 8 M12 Ethernet ports, supports IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3x, and has 10/100/1000M, full/half duplex, MDI/MDI-X Adaptable and provide economical solutions for industrial Ethernet.

M12 Ethernet Switches DC 12-52V PoE 48-57V Wall-mounted 8-port X-coded Femal Connector

M12 Ethernet Switches DC 12-52V PoE 48-57V Wall-mounted 8-port X-coded Femal Connector

Product Features

  • -40° ~75° operating temperature range
  • Fanless, silent, low power consumption, energy saving and environmental protection
  • Support DC 12V~57V wide voltage input, adaptable to various industrial power input
  • Plug and play, no configuration required
  • PoE power supply function
  • Metal shell, IP40 protection
  • Support dual power supply redundancy and reverse
  • Supports IEEE 802.3af/at PoE power supply standard, single port provides up to 30W power.
Construction

Model U-08T-M12
Electrical port 8 x M12 X-coded,8-pin female connector
Power port M12 A-coded 5-pin female connector
Indicator PWR,Link/ACT,PoE
Switching capacity 16Gbps
Packet forwarding rate 11.9Mpps
Cache 2Mb
MAC table 4k
PoE externsion 8 x PoE/PoE+
Standard IEEE 802.3,IEEE 802.3u,IEEE802.3ab,IEEE 802.3x
Working mode Network port supports full-duplex,half-duplex auto-negotication, and MDI/MDI-X adaptation
Temperature Working temperature: -40-75° C Storage temperature: -40~85℃
Humidity Working humidity: 10%~90%RH non-condensing Storage humidity: 5%~95RH non-condensing
Installation method Wall-mounted,front plug-in outlet
Heat dissipation method Natural cooling fanless
Power DC: 12-52V; PoE: 48-57V
Size 170x132x41.2 cm
