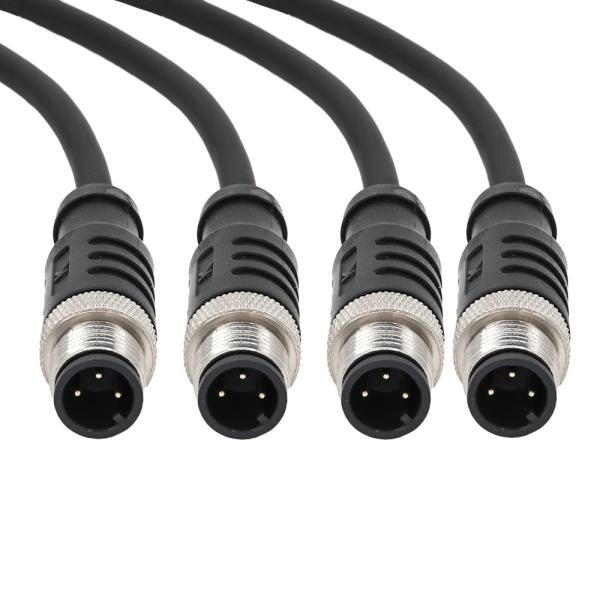

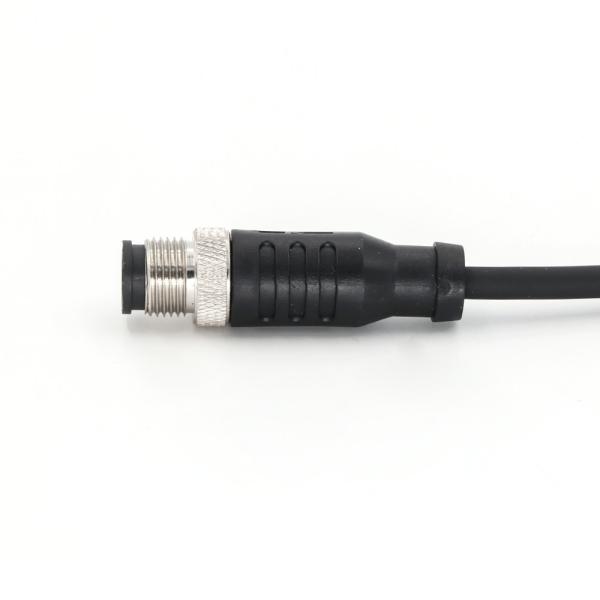

Male M12 8 Pin Connectors Pre Assembled Cable Straight PVC FPM/FKM
Male M12 8 Pin Connectors Pre Assembled Cable Straight PVC FPM/FKM
Male M12 8 Pin Connectors Pre Assembled Cable Straight PVC FPM/FKM
Male M12 8 Pin Connectors Pre Assembled Cable Straight PVC FPM/FKM
Specifications
Brand Name :
KRONZ
Model Number :
M1208M-5/P00R
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Description :
M12 Pre-assembled Connectors
Pin :
8
Wire Color :
1=WH 2=BN 3=GN 4=YE 5=GY 6=PK 7=BU 8=RD
Housing material :
TPU, black
Voltage :
30V
Wire Gauge :
8×0.25 (8×24AWG) PVC, black
Cable Length :
2m/5m/10m/customized
Shielded :
No
Description

M12 8 Pin Connectors IEC 61076-2-101 Pre-assembled Cable Male Straight PVC FPM/FKM

Product Description

A-coded M12 connectors are commonly used for sensors and actuators. They typically feature 3 to 12 pins and are used for signal and low-power applications.

Male M12 8 Pin Connectors Pre Assembled Cable Straight PVC FPM/FKM

Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Male M12 8 Pin Connectors Pre Assembled Cable Straight PVC FPM/FKM

1=WH
2=BN
3=GN
4=YE
5=GY
6=PK
7=BU
8=RD

 A 2A 30V 8×0.25
(8×24AWG)
PVC, black		 Straight 2M M1208M-2/P00R
5M M1208M-5/P00R
10M M1208M-10/P00R
