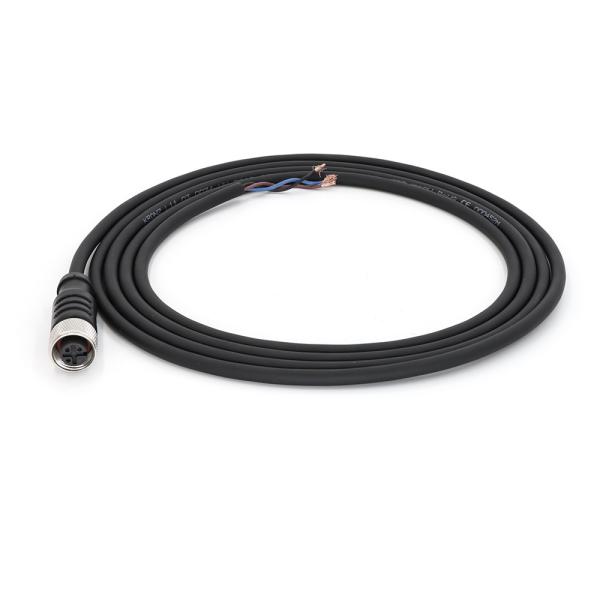

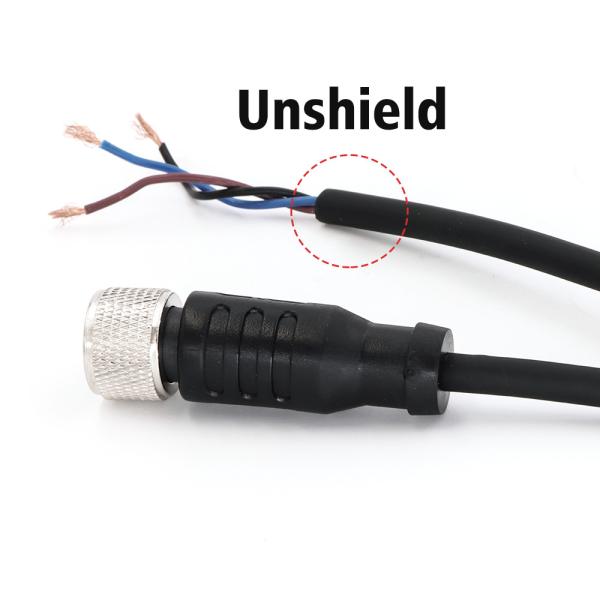

Straight M12 Connector Female 12 Pin Pre Assembled 5M Cable PVC A Code
Straight M12 Connector Female 12 Pin Pre Assembled 5M Cable PVC A Code
Straight M12 Connector Female 12 Pin Pre Assembled 5M Cable PVC A Code
Straight M12 Connector Female 12 Pin Pre Assembled 5M Cable PVC A Code
Specifications
Brand Name :
KRONZ
Model Number :
M1212F-5/P00R
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Description :
M12 Connector 12 Pin
Wire Gauge :
12×0.14 (12×26AWG) PVC, black
Contact carrier material :
PA, black
Standard :
IEC 61076-2-101
Seal material :
≥100MΩ
Pollution degree :
3
Mating cycles :
>100
Cable Length :
5m
Description

M12 Connector Pre-assembled 5 M Cable 12 Pin Straight PVC Female A Code

Product Description

The food and beverage industry requires connectors that can withstand frequent washdowns and exposure to cleaning agents. Stainless steel M12 connectors with high IP ratings are commonly used in these environments. M12 connectors are used in wind turbines and solar power systems to connect sensors and control units, ensuring reliable operation in outdoor environments.

Straight M12 Connector Female 12 Pin Pre Assembled 5M Cable PVC A Code

Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Straight M12 Connector Female 12 Pin Pre Assembled 5M Cable PVC A Code

1=BN

2=BU
3=WH
4=GN

5=PK

6=YE

7=BK

8=GY

9=RD

10=VT

11=GY/PK

12=RD/BU

 A 1.5A 30V 12×0.14
(12×26AWG)
PVC, black		 Straight 2M M1212F-2/P00R
5M M1212F-5/P00R
10M M1212F-10/P00R
