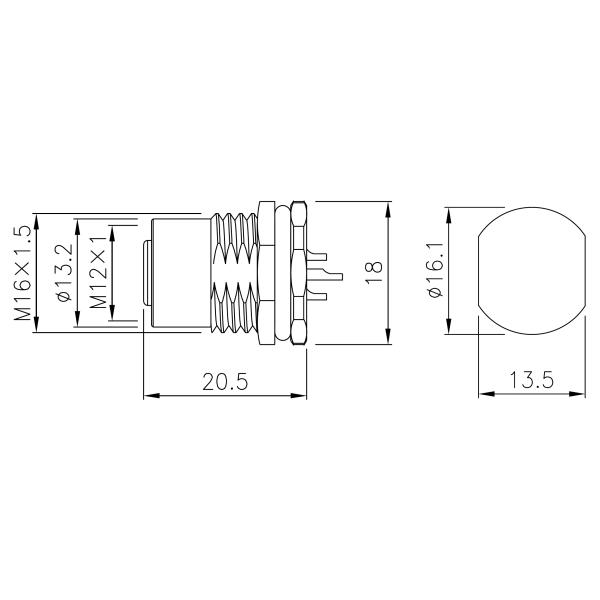

Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5
Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5
Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5
Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5
Specifications
Brand Name :
KRONZ
Model Number :
F1203F-SF/M16
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Name :
M12 flange connector
Pullution Degree :
3
Contact Surface Material :
Brass, gold-plated
Type :
Front Mounting
Contact Resistance :
≤5mΩ
Seal Material :
FPM/FKM
Description

M12 Panel Mount Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5

Product Description

M12 panel mount connectors with screw locking and 3 pin is according to its protection class IP67 dustproof and complete protection against contact.Protection against permanent submersion, Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. With temperatures ranges of -25 °C/85 °C is this M12-A coded female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 250 V and the rated current of 4 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.

Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5

Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Part No.
Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5 Front mounting A 4A 250V Straight Solder cup F1203F-SF/M16
