Unmanaged Industrial Ethernet Switches 5 Port POE 100Base-TX DIN Rail Mounting
Unmanaged Industrial Ethernet Switches 5 Port POE 100Base-TX DIN Rail Mounting
Unmanaged Industrial Ethernet Switches 5 Port POE 100Base-TX DIN Rail Mounting
Unmanaged Industrial Ethernet Switches 5 Port POE 100Base-TX DIN Rail Mounting
Specifications
Brand Name :
KRONZ
Model Number :
UES-05TH
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Paper box packing
Input voltage :
DC12-52V/DC 48-52V(PoE)
Housing :
Metal
Protection rating :
IP40
Mounting :
DIN-rail,wall
Cooling :
Natural-cooling, fanless
Packet buffer memory :
1 Mbit
Power consumption :
< 3W
Bandwidth :
1.6 G
Description

Industrial Ethernet Switches 5-Port POE 100Base-TX Unmanaged DIN Rail Mounting

Product Description

The UES series industrial Ethernet Switches support supports 12~52VDC redundant power input and is secured with a double protection mechanism: power polarity reverse protection and an overload current fuse. These unmanaged switches supports temperature from -40°C to 75°C, with exceptional ruggedness to adapt to various harsh environments, and can be installed in control cabinets in a space-saving way. Features such as DIN rail mounting, wide temperature operation, IP40 protection rating, and LED indicators make it a plug-and-play device, providing reliable and convenient solutions for customers in their network needs.

Product Feature:

■ Ensure reliable data transmission and long working life
■ Transfer speed automatically adjustable via Auto-Negotiation function
■ Half Duplex/Full Duplex,Auto-crossing
■ Store-and-forward switching mode,supporting multiple protocols
■ High quality and reliability, MTBF:300,000 hours
■ Redundant 12-52VDC power input,with reverse-polarity protection
■ Din rail with IP40 metal mechanism
■ Lightning surge impact protection: 5000A (8/20μs)

Technical Data

Products description
5-port unmanaged industrial ethernet switch with PoE(Optional)
Port description
 5 x RJ45 female 8 pin,1-port 10/100/1000Base-T(X) uplink,
4-port 10/100Base-T(X) downlink
MDI/MDI-X auto-crossover,auto-negotiation

Network protocol
 IEEE 802.3 10BaseT
IEEE 802.3i 10Base-T
IEEE 802.3u 100Base-TX/FX
Environmental conditions
Operating temperature
-40~75°C(-40~167°F)
Storage temperature
-40~75°C(-40~167°F)
Relative humidity
5% ～ 95%( no condensation)
MTBF 300,000 hours
Power
Input voltage
DC12-52V/DC 48-52V(PoE)
Connection terminal
 Removable screw terminals block
Overload-current
 Present
Reverse-polarity protection Present
Mechanical characteristics
Housing
Metal
Protection rating
IP40
Mounting DIN-rail,wall
Cooling method
Natural cooling, fanless
Weight
0.36Kg
Size
117.7x 88.7x 34mm (L x W x H)
Standards:
 EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS :
IEC(EN)61000-4-2(ESD) :±8kV contact discharge, ±12kV air discharge
IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)
IEC(EN)61000-4-4(EFT) : Data line : ±4kV CM//±2kV DM ;
IEC(EN)61000-4-5(Surge) : Data line : ±4kV CM//±2kV DM ;
IEC(EN)61000-4-6(Conducted Immunity) : 3V(10kHz~150kHz),
10V(150kHz~80MHz)
IEC(EN)61000-4-16(Common Mode Conducted ) : 30V cont. 300V,1s
IEC(EN )61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
PoE Configuration PoE+Ports: 4FE PoE, 802.3af,802.3at, auto-negotiation
PoE Max Power Per Port :15.4W (IEEE 802.3af)
PoE Max Power Per Port : 30W (IEEE 802.3at)
Performance
Packet buffer menory
1 Mkbit
MAC address
2K
Power consumption
＜ 3W
Bandwidth 1.6G
Forwarding rate 1.488Mpps
Latency ＜ 10μs
Forwarding mode Store-and-forward
LEDs
Power indicator
PWR
Interface
Link status

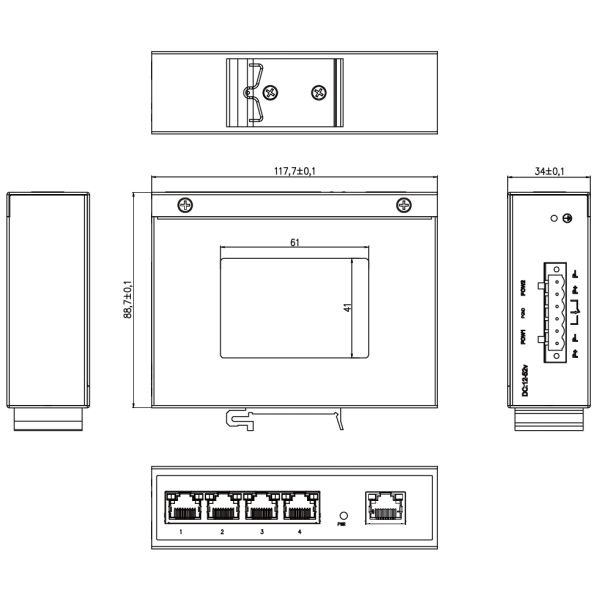

Mechanical Dimension Drawing
