Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-KWHD5
Certification :
ISO9001-2017 RoHS
Price :
Discuss
Packaging Details :
Carton
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
Right angle connector
Gender :
Female
Type :
Right angle
Material :
Brass
Plating :
Gold
Durability :
500 times
High light :
SMA Female Angled PCB Solder Microstrip RF Connector
Description

SMA Female Angled PCB Solder Microstrip RF Connector

Product introduction

SMA series connectors, a wide range of applications, threaded miniature coaxial connectors, suitable for digital communication systems and microwave equipment in RF circuits of microstrip lines or connection cables.
Applications: instrumentation, network, telecommunications, aerospace and navigation, etc.
Product features: four-hole flange installation, microstrip slotting width 0.5 depth 0.9, excellent mechanical and electrical performance, high reliability, frequency bandwidth, etc.

Product specifications

SMA Female RF Connector Angled PCB Solder Microstrip

Important technical parameters

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.06+0.015F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.08√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500 times

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

 / /

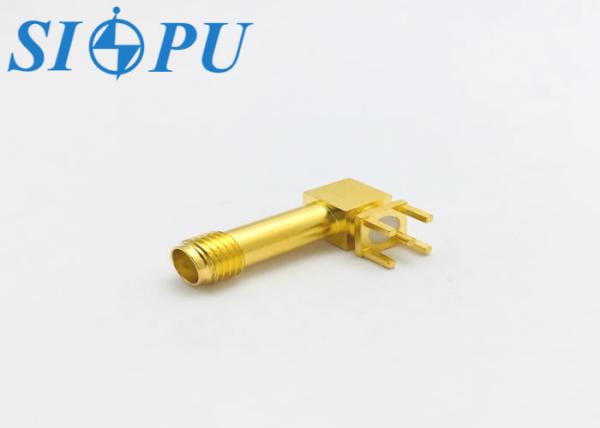

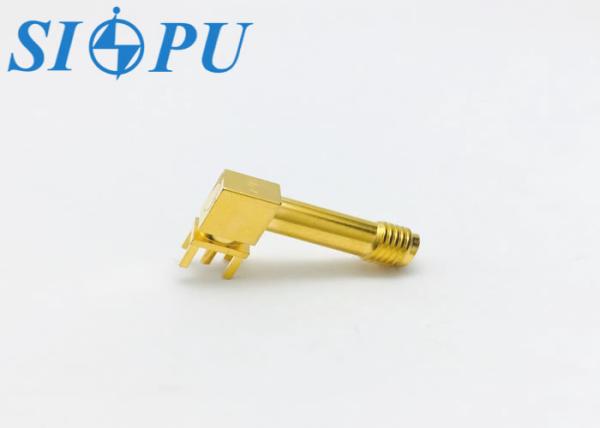

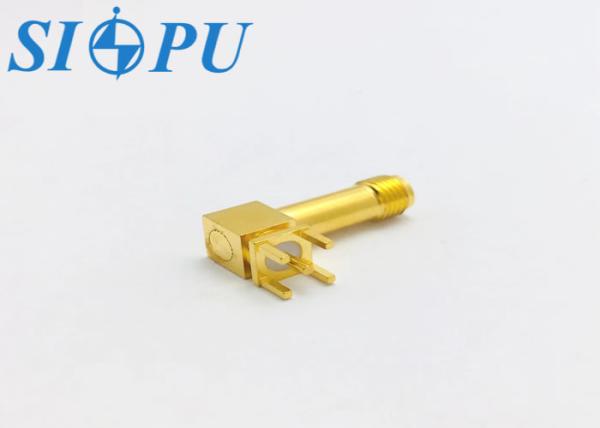

Picture display

SMA Female RF Connector Angled PCB Solder MicrostripSMA Female RF Connector Angled PCB Solder MicrostripSMA Female RF Connector Angled PCB Solder MicrostripSMA Female RF Connector Angled PCB Solder Microstrip
