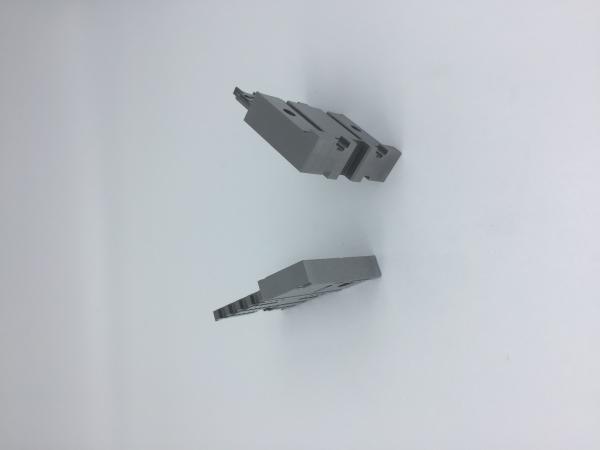

Customized Size Automotive Stamping Parts , Connector Mold Parts Press Size 50T-300T
Customized Size Automotive Stamping Parts , Connector Mold Parts Press Size 50T-300T
Specifications
Price :
Negotiable
Place of Origin :
Dongguan, China(Mainland)
Certification :
ISO9001: 2015
Packaging Details :
Protect the part with film, Put box in plastic bag with label
Delivery Time :
4.It only takes 7-8 working days once the order is placed. Priority arrangement for urgent orders
Supply Ability :
1200-1500 units per month
MOQ :
Negotiable
Payment Terms :
T/T 50% as deposit 50% before shipment or negotiation
Brand Name :
Guan Yao
Product Name :
Precision Connector Mold Parts
Main Machining :
EDM, Grinding, CNC, Wire Cutting
Press Size :
50T to 300T
Material Capabilities :
Fully Make Sure To Meet Your Needs
Quality Tseting :
All Items Inspect Before Shipping
Size :
According To Your Drawing
Description

Customized Size Connector Mold Parts Press Size 50T to 300T OEM ODM Service

Product Descriptions

Category: Precision connector mold parts
Product name: precision connector mold parts
Product size: customization
Hardness: 58-60 HRC
Grinding precision: 0.001mm
Electric discharge processing precision: 0.002mm

1. Product Application: ​

These connector mold parts were fabricated for molded pin connector and were designed for use in a high volume electronics application. It required precision as well as durability, and required features that would enhance the manufacturability of the finished parts. They are designed to allow for frequent change overs during production, while maintaining a high degree of precision.

2. Processing Equipment:

Parts are manufactured utilizing our precision surface grinding, and EDM machines which include Mitsubishi EDM, Sodick EDM, and Charmille EDM.

3. Testing Instruments:
CMM, Nikon Projector, Mitutoyo Digital Caliper, Mitutoyo Digital Height Gauge, Rockwell Hardness Inspection Instrument, etc

Machined Processing

Grinding Mirror EDM

1. EDM Processing

Finish(Ra): 0.13

Accuracy: 0.002-0.005mm

Min Clear radius: 0.03mm

2. Grinding Machine Processing

Finish(Ra): 0.05

Accuracy: 0.001mm

Wire Cutting and CNC

1. Wire-cutting Processing

Finish(Ra): 0.08

Accuracy: 0.002mm

Min Clear radius: 0.05mm

2. High Speed CNC Processing

Finish(Ra): 0.1-0.15

Accuracy: 0.002mm

RPS: 35000

Milling Assembly

1. Professional tool makers for prefect assembly.

2. Milling Processing For pre-rough machining.

Stamping Insert Molding

We have 2 automatic stamping machines with 45 tons to produce terminals for insert molding parts. We can provide one-step service for our customers.
