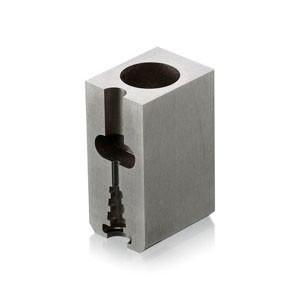

Hardness 58HRC CNC Precision Parts Mould Precise 0.002mm - 0.01mm For Auto Mold
Hardness 58HRC CNC Precision Parts Mould Precise 0.002mm - 0.01mm For Auto Mold
Specifications
Price :
Negotiable
Place of Origin :
Dongguan, China(Mainland)
Certification :
ISO9001: 2015
Packaging Details :
Protect the part with film, Put box in plastic bag with label
Delivery Time :
4.It only takes 7-8 working days once the order is placed. Priority arrangement for urgent orders
Supply Ability :
1200-1500 units per month
MOQ :
Negotiable
Payment Terms :
T/T 50% as deposit 50% before shipment or negotiation
Brand Name :
Guan Yao
Precision :
0.001-0.002mm
Machining Processing :
EDM, Grinding, CNC, Wire Cutting And So On
Accuracy of Grinding :
0.001 mm
Accuracy of EDM :
0.002 mm
Drawing Format :
You Supply Can Be Accepted
Material Capabilities :
Fully Make Sure To Meet Your Needs
Description

OEM CNC Machined Components EDM, Grinding, CNC, Wire Cutting Processing

Product Descriptions

Business Service OEM accepted
Processing Equipment CNC milling machines, wire cutting machines,
surface grinding machines, EDM machines, and more.
Application Auto mold
Measuring& testing Height Gauge, Hardness tester, dimensional detector, projector,
micrometer and so on.
Machining Basis Primary cusromer's drawings, 2D or 3D is ok
Surface Treatment according to our customers’ requirements
Tolerance Accuracy of grinding: 0.001 mm;
Accuracy of EDM: 0.002 mm;
Accuracy of Wire-cutting: 0.002mm;
Accuracy of CNC: 0.002mm
In short, the requirment of tolerance as customer's demand.
OEM ODM Service Yes
Quality Assurance

1. Incoming material control to make sure all the raw materials are qualified.
2. Operators follow the daily check list to check the machines to make sure they are in good conditions, and follow the spec to make products.
3. Use qualified operators and correct parameters to make sure good quality.
4. According to the quality assurance procedure to check the quality.
5. Full quality check after product before shipping.

Special Features

Product Name:Plastic Precision Molding Parts

OEM ODM: Yes

Cavity: Single Cavity/ Multi Cavity

Runner:Hot Runner/Cold Runner

Main Machining: EDM, Grinding, CNC, Wire Cutting

Tolerance:0.005mm

Size:Customer's Requirements

Precision:0.001-0.002mm

Hardness: 58HRC

Press size: 50T to 300T

Molding Type: Herizontal and Vertical type

Quality Tseting: All Items Inspect Before Shipping

Surface Finish: Depends On Your Requirements

Advantage: Fast Delivery

Service Type: Grinding, Milling, Wire EDM,Other Machining Services

Tolerance: As Your Drawings Request

Material Capabilities: Fully Make Sure To Meet Your Needs

We have 43 injection molding machines from 50-300 ton . Japan Fanuc, Taiwan YiZhan and China HongRui. We are professional manufacturer for special engineering resin such as PEEK,PAEK, , PPSU , PEI , LCP , PPS , PFA , PUDF , PCTG , PET , PA66 , PCS etc. Material temperature max 430C and mold temperature max 180C.

1. PEEK

Feature: Heating without harmful substances And heating without deflection.

Application: E-cigarette heating part And Carrier of gene detection instrument.

2. PPE

Feature: Specific permittivity and good weather resistance.

Application: 4G base station.

3. PEI

Feature: High precision, quick response.

Application: IC burn-in socket

4. PARA

Feature: 3D Directions screw structure And good appearance.

Application: Medical operation and Forceps handle.

5. PPSU

Feature: Structural strength and Transparency requirements.

Application: Medical chamber.

6. PBT

Feature: Press-fit terminals insert molding

Application: Automotive sensor

Main Business

1. Nonstandard Circular Component

Discharge angle: 0.02
Discharge tolerance: 0.005mm
Grinding angle: 0.01
Grinding tolerance: 0.001mm
Hardness: 58HRC

2. Precise Tungsten Steel Mold Parts

Discharge angle: 0.02
Discharge tolerance: 0.005mm
Grinding angle: 0.01
Grinding tolerance: 0.001mm
Hardness: 58HRC

3. Precise Plastic Mold Parts

Discharge angle: 0.02
Discharge tolerance: 0.005mm
Grinding angle: 0.01
Grinding tolerance: 0.001mm
Hardness: 58HRC

4. Precise Stamping Die parts

Discharge angle: 0.02
Discharge tolerance: 0.005mm
Grinding angle: 0.01
Grinding tolerance: 0.001mm
Hardness: 58HRC

5. Completed Precise Plastic Molds

Press size:
From 20T to 300T
Including Herizontal and Vertical type.

6. Molding for special engineering resin

Press size: From 50T to 220T
Including Herizontal and Vertical type.
