High Precision Connector Mold Parts Press Size 50T to 300T OEM ODM Service

Product Descriptions

Category: Precision connector mold parts

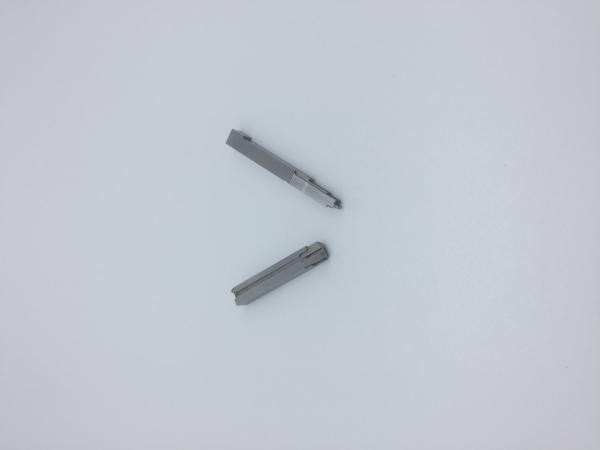

Product name: precision connector mold parts
Product size: customization
Hardness: 58-60 HRC
Grinding precision: 0.001mm
Electric discharge processing precision: 0.002mm

1. Product Application: ​

These connector mold parts were fabricated for molded pin connector and were designed for use in a high volume electronics application. It required precision as well as durability, and required features that would enhance the manufacturability of the finished parts. They are designed to allow for frequent change overs during production, while maintaining a high degree of precision.

2. Processing Equipment:

Parts are manufactured utilizing our precision surface grinding, and EDM machines which include Mitsubishi EDM, Sodick EDM, and Charmille EDM.

3. Testing Instruments:
CMM, Nikon Projector, Mitutoyo Digital Caliper, Mitutoyo Digital Height Gauge, Rockwell Hardness Inspection Instrument, etc

About Us

We have 43 injection molding machines from 50-300 ton . Japan Fanuc, Taiwan YiZhan and China HongRui. We are professional manufacturer for special engineering resin such as PEEK,PAEK, , PPSU , PEI , LCP , PPS , PFA , PUDF , PCTG , PET , PA66 , PCS etc. Material temperature max 430C and mold temperature max 180C.

1. PEEK

Feature: Heating without harmful substances And heating without deflection.

Application: E-cigarette heating part And Carrier of gene detection instrument.

2. PPE

Feature: Specific permittivity and good weather resistance.

Application: 4G base station.

3. PEI

Feature: High precision, quick response.

Application: IC burn-in socket

4. PARA

Feature: 3D Directions screw structure And good appearance.

Application: Medical operation and Forceps handle.

5. PPSU

Feature: Structural strength and Transparency requirements.

Application: Medical chamber.

6. PBT

Feature: Press-fit terminals

insert molding

Application: Automotive sensor
