High Precision Connector Mold Parts EDM, Grinding, CNC, Wire Cutting Processing

Product Descriptions

Category: Precision connector mold parts

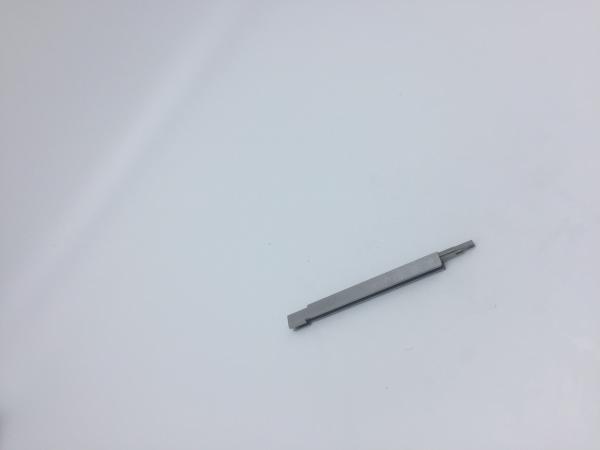

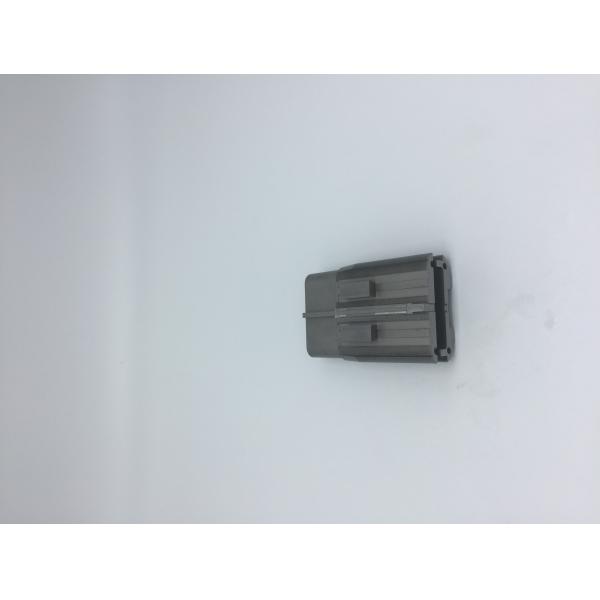

Product name: precision connector mold parts
Product size: customization
Hardness: 58-60 HRC
Grinding precision: 0.001mm
Electric discharge processing precision: 0.002mm

1. Product Application: ​

These connector mold parts were fabricated for molded pin connector and were designed for use in a high volume electronics application. It required precision as well as durability, and required features that would enhance the manufacturability of the finished parts. They are designed to allow for frequent change overs during production, while maintaining a high degree of precision.

2. Processing Equipment:

Parts are manufactured utilizing our precision surface grinding, and EDM machines which include Mitsubishi EDM, Sodick EDM, and Charmille EDM.

3. Testing Instruments:
CMM, Nikon Projector, Mitutoyo Digital Caliper, Mitutoyo Digital Height Gauge, Rockwell Hardness Inspection Instrument, etc

Design & Engineering

Design

Bring your ideas into reality at GY MOULD!

Our team of highly trained engineers are capable of creating simple to complex designs and assemblies in 2D and 3D formats.

• 2D Part Drawings (.DWG, .DXF, .PDF)
• 3D Modeling (.STEP, .STL, .IGES, .X_T)
• Auto cad 2007
• UG NX6, PRO-E Wildfire 5.0 and Solidworks 2010

Process Simulation

At GY, we emphasize the benefits of DFM to our clients with the knowledge that this powerful diagnostic tool will create a more efficient production cycle and ultimately increase profitability.

We also are capable of addressing design issues at the earliest possible stage by utilizing Mold flow® simulation software to identify vital information that helps avoid costly part redesign, tooling changes or modifications such as:

• Filling Pattern
• Sink Mark Estimate
• Warpage Trends
• Time & Pressures
