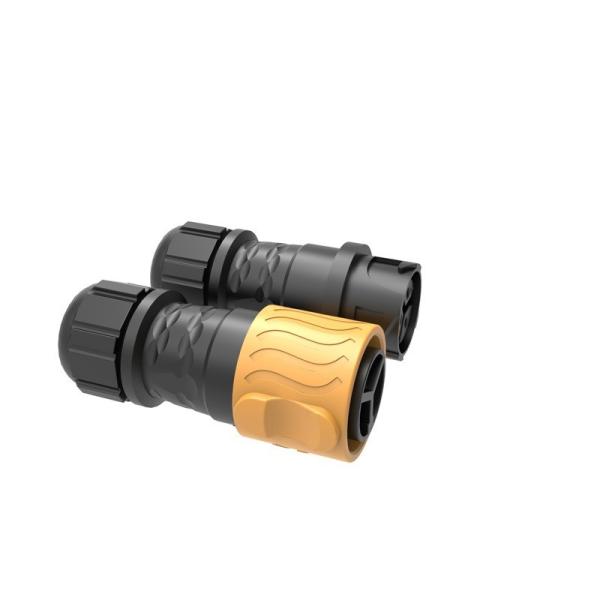

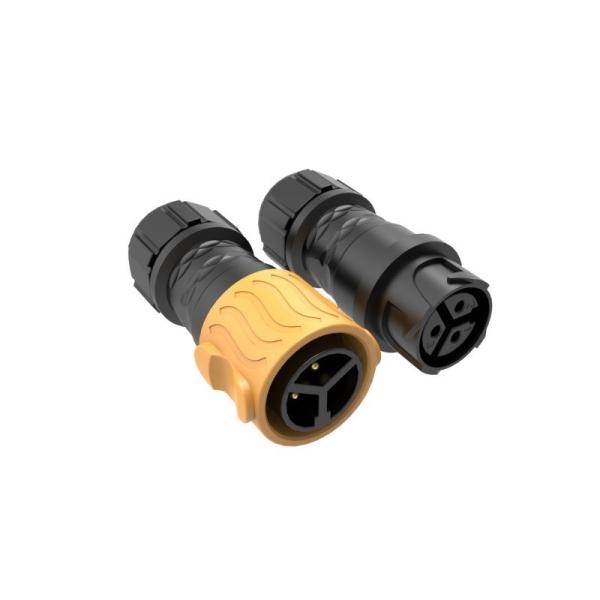

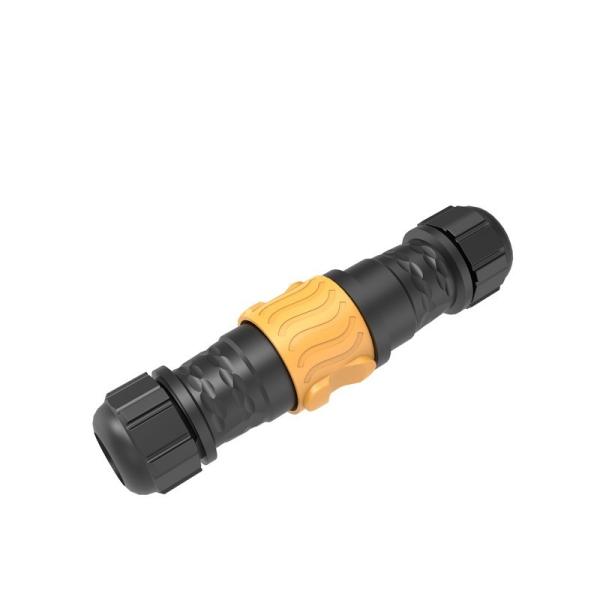

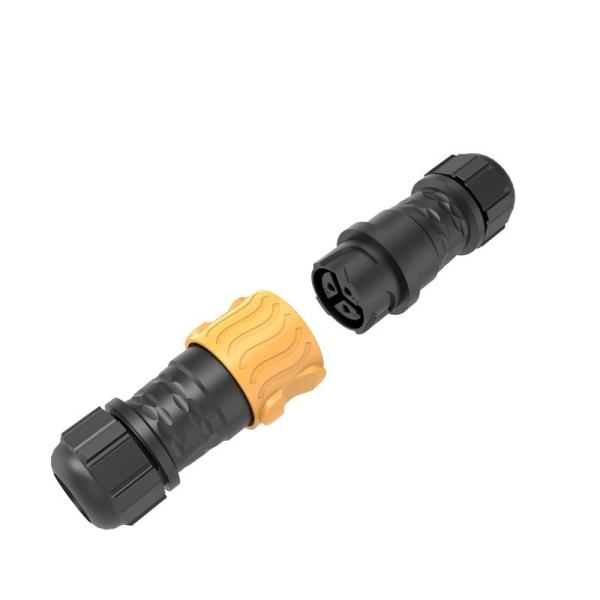

P25 Three Core Waterproof Circular Connector Self Locking Assembly Micro Inverter Box
P25 Three Core Waterproof Circular Connector Self Locking Assembly Micro Inverter Box
P25 Three Core Waterproof Circular Connector Self Locking Assembly Micro Inverter Box
P25 Three Core Waterproof Circular Connector Self Locking Assembly Micro Inverter Box
P25 Three Core Waterproof Circular Connector Self Locking Assembly Micro Inverter Box
P25 Three Core Waterproof Circular Connector Self Locking Assembly Micro Inverter Box
P25 Three Core Waterproof Circular Connector Self Locking Assembly Micro Inverter Box
P25 Three Core Waterproof Circular Connector Self Locking Assembly Micro Inverter Box
Specifications
Brand Name :
Cablein
Model Number :
CB-P25-MDM01-3P-X
Certification :
CE, ROHS, TUV , ETL, CB, SAA
Place of Origin :
Shenzhen China
MOQ :
1PCS
Price :
Price Can Contact With Our Sales
Payment Terms :
T/T, Western Union
Delivery Time :
5-8 Working Days
Packaging Details :
High Quality export carton
Gender :
male and female
Metal :
Gilded brass
Material :
PA66 Nylon
Insertion life :
1000 times
Voltage :
300V
Waterproof :
IP67
Contact Resistance :
<5mΩ
Connection Type :
Solder type
Description

P25 Three-Core Waterproof Circular Connector Self-Locking Assembly Micro Inverter Box Connection Quick Details


Pin: 3 Pin Male Femal Connector Current Rating(A): 25A +5A Max

Material:PA66 Nylon Conenction Way: Self-locking butt typeType

Operating Voltage: 300V Assembly Wire: Soldering or screw fitting

Out Door UV Resistance: Pass Cable Jacket OD: 6-12 mm²

P25 Three-Core Self-Locking Assembly Waterproof Circular Connector Micro Inverter Connection Head Box Connection datasheet

Pins Number 3Pins 3+9 Pins
Rated Voltage 300V 300V
Rated Current 25A 25A + 5A
Insulation voltage 3KV 2KV
DC 500V Insulatin resistance 100MΩ 100MΩ
IP CODE IP67 IP67
Cable Specifications ≤2.5mm² ≤2.5mm²
Assembly cable diameter 6-12mm² 6-12mm²



P25 Three-Core Self-Locking Assembly Waterproof Circular Connector Micro Inverter Connection Head Box Connection Advantages:

The P25 Three-Core Waterproof Circular Connector Self-Locking Assembly is a game-changer for micro inverter box connections. This innovative connector is designed to provide a reliable and secure connection in various environments.

The self-locking feature ensures that the connection stays intact, preventing accidental disconnections. Its waterproof property makes it suitable for both indoor and outdoor applications, protecting the electrical components from moisture and other elements.

The P25 connector is easy to assemble, saving you time and effort during installation. With its precise engineering and high-quality materials, it guarantees long-lasting performance and minimal maintenance. Enhance the efficiency and safety of your micro inverter box connections with this outstanding circular connector.

P25 Three-Core Self-Locking Assembly Waterproof Circular Connector Micro Inverter Connection Head Box Connection Application industries

Application industries:
Stage equipment The smart grid LED lighting
Solar energy equipment Ship equipment Agriculture
Electric power equipment Vehicle equipment Ebike/motorcycle
Communications equipment Heavy machinery Transportation

P25 Three-Core Self-Locking Assembly Waterproof Circular Connector Micro Inverter Connection Head Box Connection Drawing

P25 Three Core Waterproof Circular Connector Self Locking Assembly Micro Inverter Box

FAQ

1. Q: How to buy your products?
A: Contact With Our Sales Team online or By email


* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way


2. Q: Can i get samples?

A: It's my honor for us to offer you samples,you just need pay freight cost.You can let me know your courier number and your detail address,Then I can send you sample at once.
