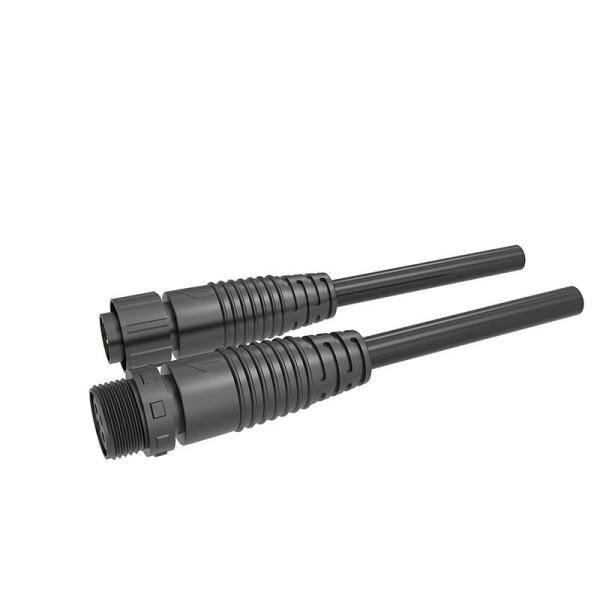

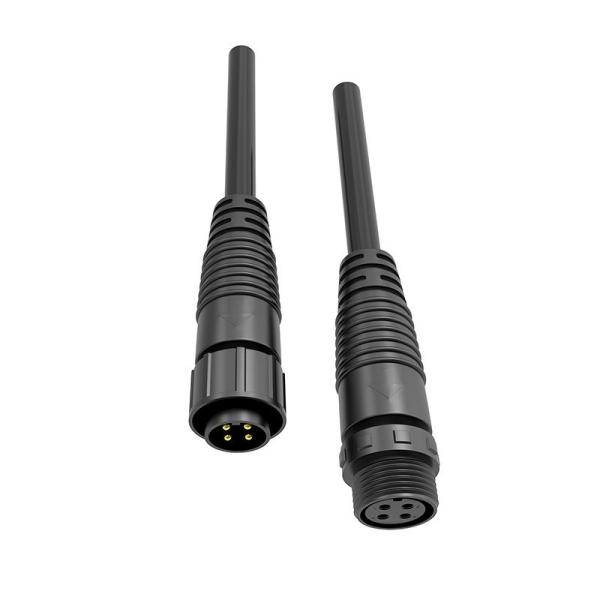

Outdoor M12 Waterproof Male Female Connector Docking Reverse Head Power Cable Quick Details

Pin: 2/3/4/5/2+3/6/8 Pins Male Femal Connector Current Rating(A): 8A+3A Max

Material:PA66 Nylon Conenction Way: Screw-less type waterproof connector

Operating Voltage: 100V Assembly Wire: Soldering or screw fitting

Out Door UV Resistance: Pass Cable Jacket OD: 4-8 mm

Outdoor M12 Waterproof Male Female Connector Docking Reverse Head Power Cable​ datasheet

2/3/4/5 Core Outdoor M12 Male And Female Docking Reverse Connector Waterproof Head Power Cable​ ​advantages:

M12 waterproof power connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.

Once assembled, the M12 Outdoor Waterproof Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M12 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.

This M12 waterproof power Connector has a waterproof rating of IP67. To assemble the M12 Outdoor Waterproof Connector,only a Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.

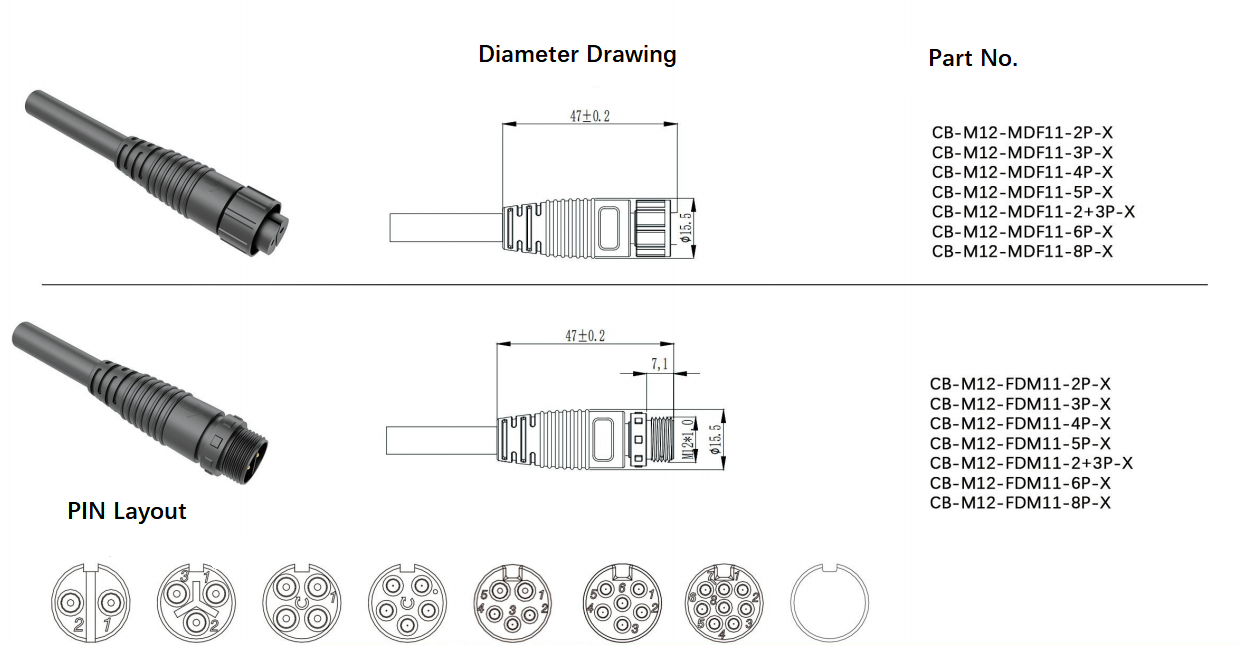

2/3/4/5 Core Outdoor M12 Male And Female Docking Reverse Connector Waterproof Head Power Cable Drawing

FAQ

1. Q: What type waterproof connectors do you have?
A: We have All series type waterproof connectors, Many types are our private mold, some of our connectors are customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector,Livestock industry, poultry industry waterproof connector, New Energy Waterproof Connector, Solar System waterproof connector...

2. Q: How to buy your products?
A: Contact With Our Sales Team online or By email

* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?

A: Please give us email or Phone number,skype or whatsapp ID if possible, we have worked for this industry more than 8 years,we have Professional sales and R&D team , we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.

4. Q: Can i get samples?

A: It's my honor for us to offer you samples,you just need pay freight cost.You can let me know your courier number and your detail address,Then I can send you sample at once.
