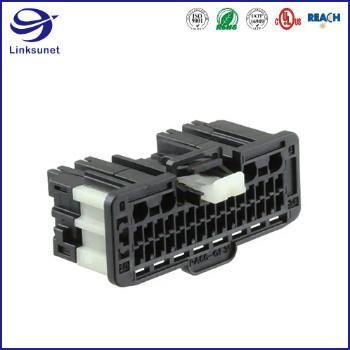

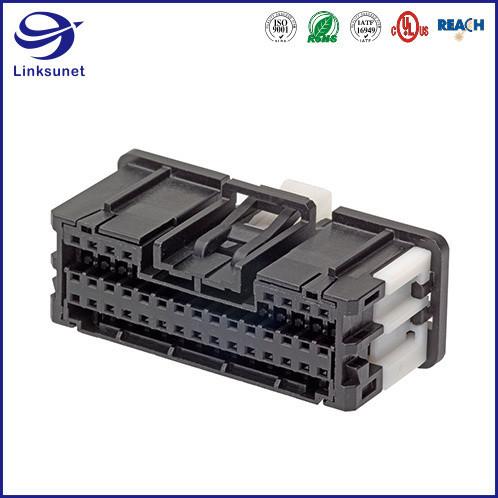

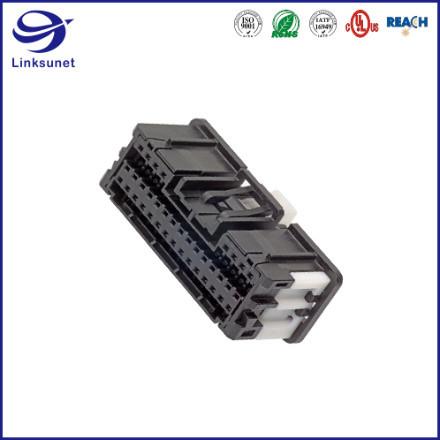

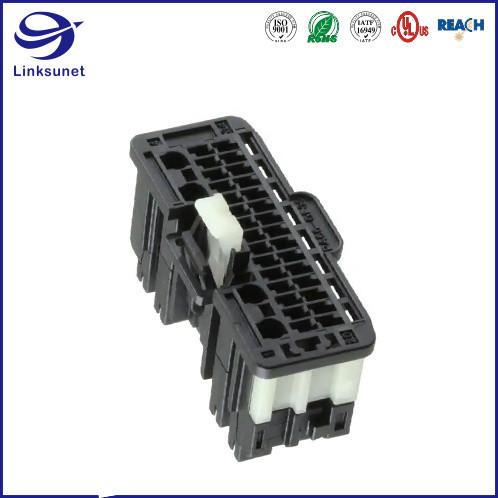

Molex Mini50 Unsealed Automotive Connectors

Molex's unsealed miniature Mini50 is a wire-to-board connection system with smaller terminals

to fit more low-current electrical circuits in interior, unsealed, transportation-vehicle environments.

The CTX50 mating terminal wire grip design offers the ability to reduce wire gauge sizes while

maintaining retention strength. The design achieves a 50% space savings compared to traditional

USCAR standard 0.64mm unsealed connector systems. Orientation features are molded into the

header, vertical or right angle options provide wire-routing and module design flexibility. This

system includes gold, SMT, and 2Ckt size models, tape and reel options, plus models with an

independent secondary lock (ISL) and connector position assurance (CPA). Molex Mini50

Unsealed Automotive Connectors are well-suited for automotive and commercial transportation

applications including headliners, clusters / navigation, radios, cameras / sensors, HVAC,

switches, lighting, mirrors, and steering wheel columns.

Terminal

CTX50 Receptacle Terminal, Unsealed, Tin Plating, M-Grip, D-Wind, Left Payoff

FAQ

Standard Confirm

Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer

Requirements and Acceptance for Cable and

Wire Harness Assemblies

Sample L/T,MOQ

We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks

when under you order form,we return the delivery(usually)

sample expense MOQ: Depends on the main material

Wire &Cable Customized

High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6

Apha, Belden, 3M, or Customer specified weeks

Mid-ranking : Ltk, Wonderful, Cableplus,

Honglin

Packing Connector

Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,

Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.

Q How can I get the sample to check your quality?

After price confirmation, you can require for samples to check our product’s quality. We are must charge

the sample expense, when under you order form, we return the sample expense.

Q What can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please

tell us in your email so that we will regard you inquiry priority.

Q What is your term of delivery?

We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective

for you.

Q What about the lead time for the mass production?

Honestly, it depends on the order quantity and the season you place the order.
