Resolution 0.05 Microns Cnc Tool Grinding Machine / Cnc Internal Grinding Machine
Resolution 0.05 Microns Cnc Tool Grinding Machine / Cnc Internal Grinding Machine
Specifications
Certification :
ISO
Place of Origin :
Taiwan
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
Depending
Delivery Time :
Negotiated
Packaging Details :
Export Standard Packing
Hydrostatic Rotatory Table :
Used with Axis C
Roundness :
Approximate 1microns
HEIDENHAIN Linear Encoder :
Fitted with X/Y axis
Resolution :
0.05 microns
Min.Setting Unit :
0.0001mm with X/Z axis
Automatically Tool Changer :
Yes
Description

max.400mm internal grinding diameter CNC vertical Grinding machine

Main parameter

ITEM UNIT 4 4D
Electronic Control System
NC Controller unit 0i-TF 0i-TF
Capacity
Range of internal grinding diameter mm Ø50-Ø400 Ø50-Ø400
Range of external grinding diameter mm Ø450 Ø450
Internal Grinding Length(ID) mm ID<Ø225:225 ID>Ø225:300
External Grinding Length mm 325 325
Swing of work spindle mm Ø450 Ø450
Workpiece height(From the rotatory table to bottom of the wheel) mm 300 300
Max.load on work table kg 250 250
X Axis Travel
Travel from Spindle center to right mm 300 300
Travel from Spindle center to left mm(ATC position) 690 690
Travel Speed mm/min. 0-24000 0-24000
Min.setting unit mm 0.0001 0.0001
Z axis Travel
Travel mm 400 400
Travel Speed mm/min. 0-24000 0-24000
Min.Setting unit mm 0.0001 0.0001
Wheel Spindle
Tool holder HSK-A63 HSK-A63
Wheel Spindle speed rpm 0-20000 0-20000
Wheel diameter mm Ø45-Ø150 Ø45-Ø150
Spindle
Diamention of the work table mm Ø450 Ø450
Spindle Speed rpm 20-200 20-200
Automatic Tool Changer(ATC)
Tool Holder HSK-A63 HSK-A63
Wheel Storage capacity tools 8 8
Max.Wheel(DiameterxLength) Øxmm Ø150x250 Ø150x250
Max.Wheel Weight kg 8 8
Tool Selection Umbrella type Umbrella Type
Motors
Wheel Drive Motor Kw 11/15(In house) 11/15(In House)
Spindle Drive Motor Kw 3.7/5(Spindle motor) 3.8/4.5(directly drive water cooling) ±2Sec.
Option: 4D motor Aiczsensor 1024:±2sec(3.8/4.5)
X axis motor kw 3 3
Z axis motor kw 4 4
machine weight, space and packing
Floor Space mm 3303x2290 3303x2290
machine height mm 3150 3150
Power capacity Kva 33 33
Net weight kg 7000 7000
Standard configuration
Spindle cooling system Turning Wheel
X/Z axis linear scale Pilot Lamp
Bolts and leveling blocks Permanent electromagnetic disc.
Auto lubricating system Spindle oil mist lubrication system
User's manual Oil mist collector
Air Spray
Full Splash Guard
LED work lamp(2sets)
Water blow
RS232/RJ45 port
air conditioner for electrical equipment, heat exchanger
Cooling system including water tank,magnetic and paper filter,pump
Tool kit
Tool box

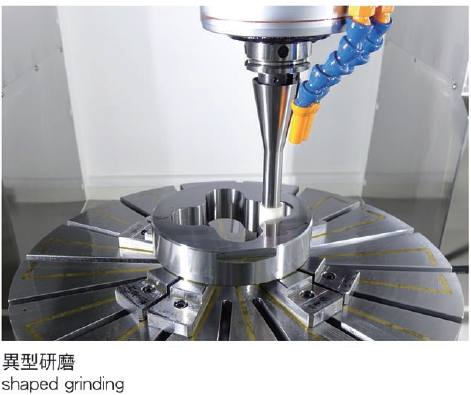

Shaped Grinding

Resolution 0.05 Microns Cnc Tool Grinding Machine / Cnc Internal Grinding Machine

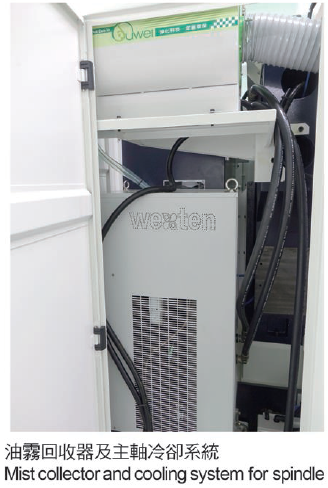

Mist collector and cooling system for spindle

Resolution 0.05 Microns Cnc Tool Grinding Machine / Cnc Internal Grinding Machine

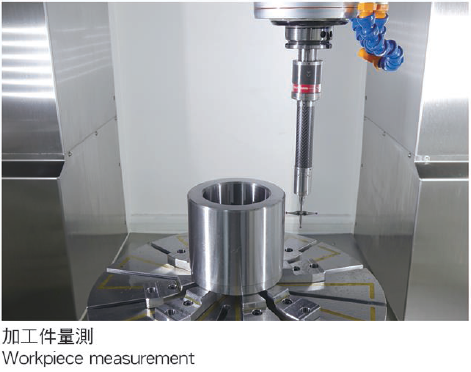

workpiece measurement

Resolution 0.05 Microns Cnc Tool Grinding Machine / Cnc Internal Grinding Machine

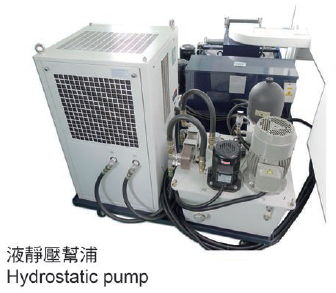

Hydrostatic Pump

Resolution 0.05 Microns Cnc Tool Grinding Machine / Cnc Internal Grinding Machine

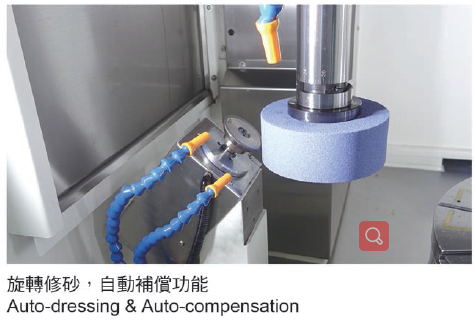

Auto Dressing and compensation

Resolution 0.05 Microns Cnc Tool Grinding Machine / Cnc Internal Grinding Machine

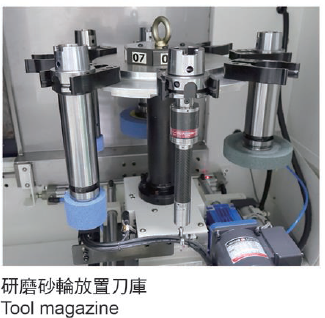

Tool Magazine

Resolution 0.05 Microns Cnc Tool Grinding Machine / Cnc Internal Grinding Machine
