Hospital 800GPD 1000GPD Commercial Ro Membrane
Hospital 800GPD 1000GPD Commercial Ro Membrane
Hospital 800GPD 1000GPD Commercial Ro Membrane
Hospital 800GPD 1000GPD Commercial Ro Membrane
Specifications
Brand Name :
HID Membrane
Certification :
SGS
Place of Origin :
China
MOQ :
Negotiatable
Price :
Negotiatable
Supply Ability :
20000pcs per day
Delivery Time :
5-20 working days after order confirmed by the factory
Stable Desalination :
97%
OEM/ODM :
Accept
Description

HID Commercial Reverse Osmosis Membranes (RO Membranes) include 400GPD, 600GPD, 800GPD, etc. These RO elements are widely used in hospitals, schools, factories, and laboratories.

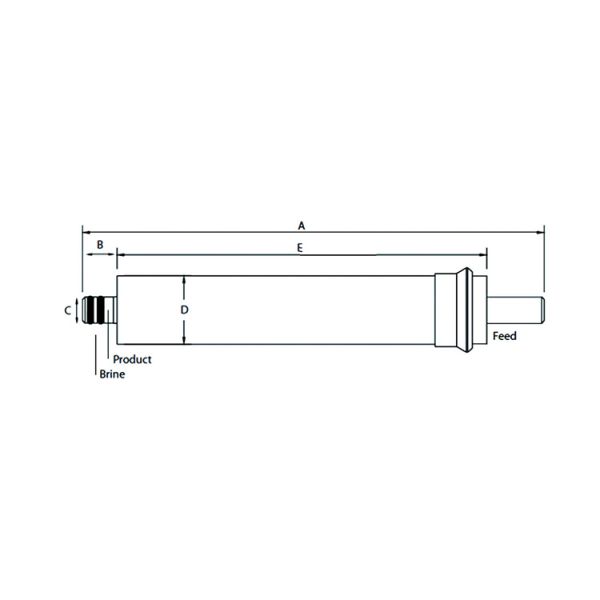

Commercial Membrane Dimensions:

Model No. A (inch/mm) B(inch/mm) C(inch/mm) D(inch/mm) E(inch/mm)
TFC-3012-200 298 20 16.8 67 257
TFC-3012-300 298 20 16.8 72 257
TFC-3012-400 298 20 16.8 72 257
TFC-3013-400 330 19 16.8 68 300
TFC-3012-500 298 20 16.8 72 257
TFC-3213-600 330 19 16.8 76 300
TFC-3213-800 330 19 16.8 78 300

Hospital 800GPD 1000GPD Commercial Ro Membrane

Commercial Membrane Model & Performance:

Model No. Min. Salt Rejection (%) Stabilized Salt Rejection(%) Permeate Flow Rate(gpd) TestTemp. Test Pressure Test Water TDS
TFC-3012-200 95 97 200 25℃ 65psi 500ppm
TFC-3012-300 95 97 300 25℃ 65psi 500ppm
TFC-3012-400 95 97 400 25℃ 80psi 500ppm
TFC-3013-400 95 97 400 25℃ 100psi 500ppm
TFC-3012-500 94 96 500 25℃ 100psi 500ppm
TFC-3213-600 94 96 600 25℃ 100psi 500ppm
TFC-3213-800 94 96 800 25℃ 100psi 500ppm

1. Permeate flow rate and salt rejection is based on testing conditions: 25℃, PH 7.5, 20% recovery.
2. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use, depending upon feedwater characteristics and operating conditions.

Operating Limits:

Model No. Maximum
Operating Temperature		 Maximum
Operating Pressure		 Feed Water PH Range,
continuous operation		 Maximum Feed Water Turbidity Maximum
Feed Water SDI		 Chlorine
Tolerance
TFC-3012-200 45℃ 200psi 4-11 1NTU 5 <0.1ppm
TFC-3012-300 45℃ 200psi 4-11 1NTU 5 <0.1ppm
TFC-3012-400 45℃ 200psi 4-11 1NTU 5 <0.1ppm
TFC-3013-400 45℃ 200psi 4-11 1NTU 5 <0.1ppm
TFC-3012-500 45℃ 200psi 4-11 1NTU 5 <0.1ppm
TFC-3213-600 45℃ 200psi 4-11 1NTU 5 <0.1ppm
TFC-3213-800 45℃ 200psi 4-11 1NTU 5 <0.1ppm
