Screw Structural Formwork Q235 Steel Tie Rod With Wing Nut
Screw Structural Formwork Q235 Steel Tie Rod With Wing Nut
Screw Structural Formwork Q235 Steel Tie Rod With Wing Nut
Screw Structural Formwork Q235 Steel Tie Rod With Wing Nut
Screw Structural Formwork Q235 Steel Tie Rod With Wing Nut
Screw Structural Formwork Q235 Steel Tie Rod With Wing Nut
Specifications
Brand Name :
MF
Model Number :
15/17mm
Certification :
ISO
Place of Origin :
China
MOQ :
500 pcs
Price :
~
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
50000pcs/mouth
Delivery Time :
20~30days
Packaging Details :
/
Name :
Tie Rod with Wing Nut
Material :
Q235/Q245
Size :
90mm
Weight :
1.5kg/m
Tensile strength :
200kN
Surface :
galvanized
Color :
Silver/Customized
Usage :
Construction
Type :
Heavy duty
Description

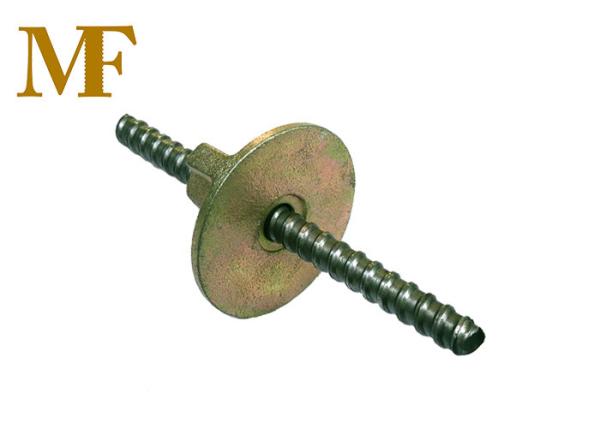

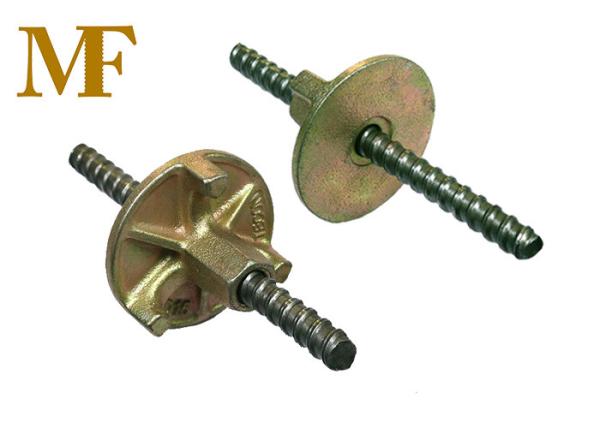

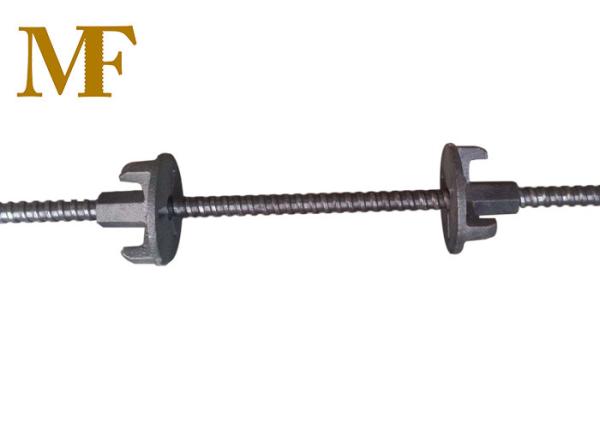

Screw Structural Formwork Q235 Steel Tie Rod with Wing Nut

Formwork Wing nuts are used together with tie rod and washer plate for concrete wall shuttering system. With DW15/17 tie rod, the formwork anchor nut can clamp formwork board closely when cement is injected.With various size and weight , our formwork wing nuts can match different formwork tie rod, and when making tensile strength testing, usually, when the tie rod breaks, the wing nuts still keeps well. Alumium formwork beam connecting accessories. Wholesale and retail, Low price with big quantity.

Formwork accessories also including: Formwork Wing Nut, Formwork Swivel Nut, Formwork Anchor Nut, Formwork Steel Cone, Formwork Water Stopper, Formwork Tie Rod(The formwork tie rod is also named formwork screw rod, formwork bar, formwork threaded rod etc. It is a component used to support and fix the formwork in an engineering building)

Specification of Screw Structural Formwork Q235 Steel Tie Rod with Wing Nut

Tie nut types Formwork wing nut Formwork Ancher tie nut Tie Rod
Weight 0.175/0.25/0.3/0.61kg 0.16/0.36/0.5/0.6/0.65/1kg 1.5kg/m
Pull strength 140-150KN 170-180KN 170-180KN
Photo Screw Structural Formwork Q235 Steel Tie Rod With Wing Nut Screw Structural Formwork Q235 Steel Tie Rod With Wing Nut Screw Structural Formwork Q235 Steel Tie Rod With Wing Nut
Material Casted iron
Surface treatment Natural, Electric Galvanized ,Hot Dip Galvanized
Heat treatment For enhance nut's hardness, tensile strength, etc
Match tie rod 12/17/20MM or customized
Material Ductile casted iron QT450-10
Color Self-color (black), silver galvanized or golden galvanized

Screw Structural Formwork Q235 Steel Tie Rod with Wing Nut

Package(inner package: white woven bag;outer package: ton bag)

Screw Structural Formwork Q235 Steel Tie Rod With Wing Nut

What else we supply:

We also supply formwork accessoris, tie nut, tie rod, plastic sleeve, cone, formwork plate, water stopper, scaffold props, scaffold frame, scaffold coupler, jack base, plastic rebar caps, plastic roman pillar, plastic safety fence, OEM service. Please feel free to contact us for one stop shopping of construction products from China, best price and service will be offered!!!

Our Advantage

1. High Quality

* All processing steps follows ISO & EN1090 Standard.

* Own casting and welding factories insure quality of product (system & accessories all made by ourselves)

2. Stable Supply

* Two casting & one welding factories to sure stable supply.

* All factories have Government-approved environmental qualifications

3. First-Hand price

* Manufacturer with trade ability

* Professional foreign trade business and service team

* OEM available
