4 Pivot Legs Light Tower Generator Double Wall Sub - Fueltank , Construction Light Towers Tail Light Kit
4 Pivot Legs Light Tower Generator Double Wall Sub - Fueltank , Construction Light Towers Tail Light Kit
4 Pivot Legs Light Tower Generator Double Wall Sub - Fueltank , Construction Light Towers Tail Light Kit
4 Pivot Legs Light Tower Generator Double Wall Sub - Fueltank , Construction Light Towers Tail Light Kit
4 Pivot Legs Light Tower Generator Double Wall Sub - Fueltank , Construction Light Towers Tail Light Kit
4 Pivot Legs Light Tower Generator Double Wall Sub - Fueltank , Construction Light Towers Tail Light Kit
Specifications
Brand Name :
Best
Model Number :
BST-Z
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiating Prices
Delivery Time :
20
Packaging Details :
WOODEN PACKING
Length :
2420m
Width :
1360m
Loading container Height :
2600KG
Full extending Height :
9M
Gross weight :
850KG
Model :
D1105(Kubota）
Speed(rpm) :
1500/1800
Number of cylinders :
3
Frequency (HZ) :
50HZ
Alternator protection grade :
IP23
Description

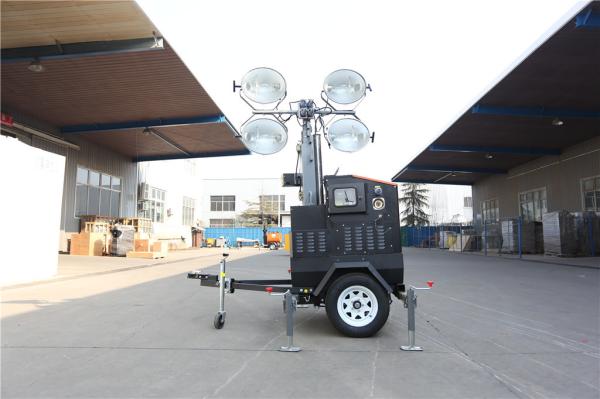

Telescopic Hydraulic Mast Mine Diesel Generator Mobile Light Tower

Quick Details


Place Of Origin:
Shangdong, China


Supply Ability:
100 Set/Sets Per Month


Packaging Details
Packed By Wooden Packing


Port
Qingdao

Key Features Include:

Application

Our mobile light tower is of sample design, easy operation and can be located anywhere for temporary lighting.800w-4000w industrial portable mobile lighting tower with gasoline and diesel generator is usd to municipal, highway bridge, port, mine, construction sector construction and other field work at night lighting. And also can be used for night repair, disaster scene lighting.

Features

400-1000 watt metal halide light fixture, high brightness, long service life.

  • Weatherproof switch/control box – ensures the use safely in the rain day.
  • Height adjustable, prevent fall institutions, good wind resistance, security and stability.
  • Manual lifting mechnaism, lifting flexible, any height, automatic lock.
  • Lamp Frame 4 sections elevating.
  • Powered by Honda petrol generator/ Mitsubishi petrol generator/ Kipor diesel generator.
  • Approximate weight:95kg-230kg
Basic Model I9T4000
Dimensions Length 2420mm
Width 1360mm
Height 3050mm
Loading container Height 2600
Full extending Height 9m
Genset power(1500/1800rpm-KW) 6.5/7.5
Gross weight 850kg
Engine Model D1105(Kubota)
Speed(rpm) 1500/1800
Number of cylinders 3
Engine characters 4 cycles, Water-cooled diesel
Combustion System E-TVS
Engine aspiration Naturally aspirated
Emission level (60Hz) Regular
Alternator Model Mecc alte LT3N-130/4
Frequency (HZ) 50/60
Rating voltage ( 50Hz) 220/110V (50HZ), 240/120 (60HZ) AC
Alternator insulation Class H
Alternator protection grade IP23
Mast & Lights Type of Lights Regular metal halide
Light's fixture Oval
Luminous flux (LM) 110000 LM/light
Number & power of lights 4×1000W
Number of mast sections 6
Mast extension Electrical(Vertical, 3500 lb winch)
Mast rotation 359° Manual rotation with self locking
Light tilt Manually
Trailer Trailer suspension & axle with brakes Leaf springs axle without brake
Tow bar A style frame with a supporting jack
Stabilizing legs & number 4 pcs drawable bar with manual jacks
Wheel's rim size & tires 14" Sunraysia rim with regular tires
Tow adapter 2" ball coupler or 3" pintle ring
Tail lights Complex tail lights
Max towing speed 80km/h
Additional Features Fuel tank Type Rotational moulding plastic
Fuel tank capacity 68 liters
Operating hours with full load 28/23 hours
Generator starting type or controler HGM1780(SMARTGEN)
Power outlet sockets 1 unit of Euro standard 16A/220V single phase power outlet socket
Max. against wind when fully extended 17.5m/s
Acoustic pressure 72dB(A) at 7 meters away
Max. # of units loading in 40' high container (Some components would be detached) 16

OEM Service Of Mobile Light Tower:


We Can Provide Professional OEM Service For Customers.
1. Unique Design And Manufacture Of Mobile Light Tower According To Customers Requirement.
2. Customer Logo Printing Or Painting On The Mobile Light Tower.
3. Installation And Operation Manual Neutral Or Headings Can Be Design According To Customer Requirement.
4. Full Warranty Cover To Support Customers
