Diesel Powered Mobile Light Tower Length 4360mm 320° Mast Rotation Powder Coated Canopy
Diesel Powered Mobile Light Tower Length 4360mm 320° Mast Rotation Powder Coated Canopy
Diesel Powered Mobile Light Tower Length 4360mm 320° Mast Rotation Powder Coated Canopy
Diesel Powered Mobile Light Tower Length 4360mm 320° Mast Rotation Powder Coated Canopy
Diesel Powered Mobile Light Tower Length 4360mm 320° Mast Rotation Powder Coated Canopy
Diesel Powered Mobile Light Tower Length 4360mm 320° Mast Rotation Powder Coated Canopy
Diesel Powered Mobile Light Tower Length 4360mm 320° Mast Rotation Powder Coated Canopy
Diesel Powered Mobile Light Tower Length 4360mm 320° Mast Rotation Powder Coated Canopy
Specifications
Brand Name :
Best
Model Number :
BST-Z
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiating Prices
Delivery Time :
20
Packaging Details :
WOODEN PACKING
Length :
4360mm
Width :
1430m
Loading container Height :
980KG
Full extending Height :
9M
Gross weight :
850KG
Model :
D1105(Kubota）
Speed(rpm) :
1500/1800
Number of cylinders :
3
Frequency (HZ) :
50HZ
Alternator protection grade :
IP23
Description

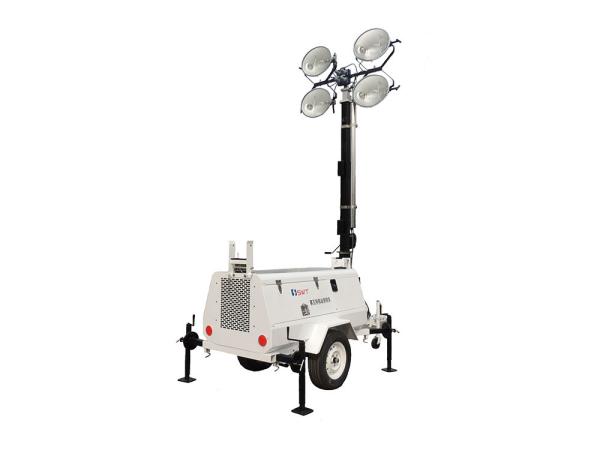

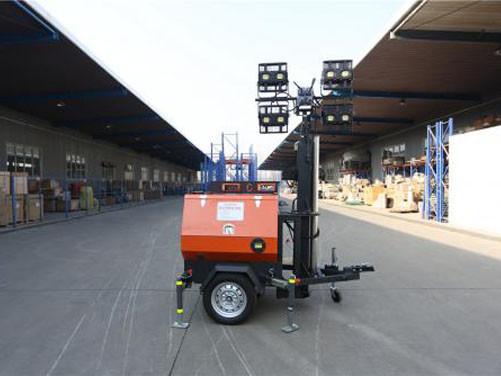

Telescopic Hydraulic Mast Mine Diesel Generator Mobile Light Tower

Key Features Include:

  • 9m hydraulically operated telescopic mast
  • 320 mast rotation
  • Available in 4x720W or 6x480W LED lamps
  • Galvanized mast and powder coated canopy
  • Electronic controlled hydraulic system with sustaining valves and hydraulic locks
  • Fault protection
  • Heavy duty, weather-protective enclosure
  • Fully bunded
Basic Model 4TN6000 4TN1200
Dimensions Length 4360mm (14’4’’)
Width 1430 mm(4’8’’)
Height 1450mm (4’9’’)
Full extending height 9m (29’6”)
Gross weight 980kg (2160lb) 910kg (2010lb)
Engine Engine model D1105 (KUBOTA) Z482(KUBOTA)
Speed(rpm) 1500/1800 3000/3600
Number of cylinders 3 2
Engine characters 4 cycles,Watercooled diesel
Combustion System E-TVCS
Engine aspiration Naturally aspirated
Emission level(50/60Hz) Regular
Alternator Standard configuration SPARKS
Frequency(Hz) 50/60
Rating voltage (50/60Hz) 230/240-120 VAC
Alternator insulation Class H
Alternator protection grade IP23
Mast & Lights Type of Lights Double-end metal halide LED
Light’s fixture Oval Rectangle
Luminous flux 165000 LM/light 390000 LM/light
Number & power of lights 4x1500W 4x3000W
Number of mast sections 3
Mast lifting Manually
Mast extension Manually
Mast rotation Manually,Max.330° lockable
Light tilt Manually
Trailer Trailer suspension & axle with brakes Leaf springs & single axle without brake
Tow bar Retractable & adjustable supporting wheel tow bar
Stabilizing legs & number 4 pcs extendable bar with manually retractable jacks
Wheel’s rim size & tires 14" rim with regular tires
Tow adapter 2" or 50 mm ball adapter
Tail light Tail reflector
Max towing speed 100km/h (62 mph)
Additional Features Fuel tank Type Rotational moulding plastic
Fuel tank capacity 170 liters (45 US gallons)
Operating hours with full fuel 80 hours 360 hours
Wires & electric components Regular
Generator starting type or controler Key starting
Max. against wind when fully extended 20 m/s (45 mph)
Acoustic pressure 72dB(A) at 7 meters away
Standard colour SWT orange or yellow canopy, black chasis, galvanized masts, tow bar & stabilizing legs
Max. # of units loading in 40’ high container (Some components would be detached) 12 or 14
Basic Model 4TN4000
Dimensions Length 4360mm (14’4’’)
Width 1430 mm(4’8’’)
Height 1450mm (4’9’’)
Full extending height 9m (29’6”)
Gross weight 960kg (2115lb) 965kg (2125lb)
Engine Engine model D1105 (KUBOTA) 380D(LD)
Speed(rpm) 1500/1800
Number of cylinders 3
Engine characters 4 cycles,Watercooled diesel
Combustion System E-TVS Direct injection
Engine aspiration Naturally aspirated
Emission level(50/60Hz) Regular
Alternator Standard configuration SPARKS
Frequency(Hz) 50/60
Rating voltage (50/60Hz) 230/240-120 VAC
Alternator insulation Class H
Alternator protection grade IP23
Mast & Lights Type of Lights Regular metal halide
Light’s fixture Oval
Luminous flux 110000 LM/light
Number & power of lights 4x1000W
Number of mast sections 3
Mast lifting Manually
Mast extension Manually
Mast rotation Manually,Max.330° lockable
Light tilt Manually
Trailer Trailer suspension & axle with brakes Leaf springs & single axle without brake
Tow bar Retractable & adjustable supporting wheel tow bar
Stabilizing legs & number 4 pcs extendable bar with manually retractable jacks
Wheel’s rim size & tires 14" rim with regular tires
Tow adapter 2" or 50 mm ball adapter
Tail light Tail reflector
Max towing speed 100km/h (62 mph)
Additional Features Fuel tank Type Rotational moulding plastic
Fuel tank capacity 170 liters (45 US gallons)
Operating hours with full fuel 120 hours
Wires & electric components Regular
Generator starting type or controler Key starting
Max. against wind when fully extended 20 m/s (45 mph)
Acoustic pressure 72dB(A) at 7 meters away
Standard colour SWT orange or yellow canopy, black chasis, galvanized masts, tow bar & stabilizing legs
Max. # of units loading in 40’ high container (Some components would be detached) 12 or 14

FAQ

Q: What certificate do you have for the Mobile Light Tower ?

A: CE certificate for the whole machine. The major parts like LED lamp, batteries and solar panels have CE and UL certificate.

Q: How many countries have the Mobile Light Tower been exported to?

A: Australia (BHP company), Canada, USA, Mexico, UK, Denmark, New Zealand, India, Brazil, Chile, South Korea, Indonesia, the Philippines, UAE, Saudi Arabia, Ghana, South Africa, Cameroom, Sudan, Egypt, Israel, etc.

Q: How to become our agent?

A: As long as you have the marketing resources and the capacity to do after-sale service, contact us for further

details by sending us an inquiry.
