120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current
120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current
120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current
120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current
120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current
120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current
120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current
120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current
Specifications
Brand Name :
WEICHAI
Model Number :
WP6D152E200
Certification :
CE ISO
Place of Origin :
Weifang ,China (Mainland)
MOQ :
1
Price :
Negotiated Price
Payment Terms :
L/C, T/T
Supply Ability :
100set per month
Packaging Details :
Plastic/ Wooden Case Packing Or Customized
Delivery Time :
7 days after received the deposit of 250kva generator
Ambient tempe :
40℃
Speed :
1500/1800rpm
Genset weight (kg) :
1500
Rated Voltage :
400/230V
Rated Power :
120KW
Frequency :
50/60HZ
Rated Current: :
216A
Number of Cylinders :
6
Warranty time :
1 year or 1000 hours
Other function :
AMF,ATS
Description

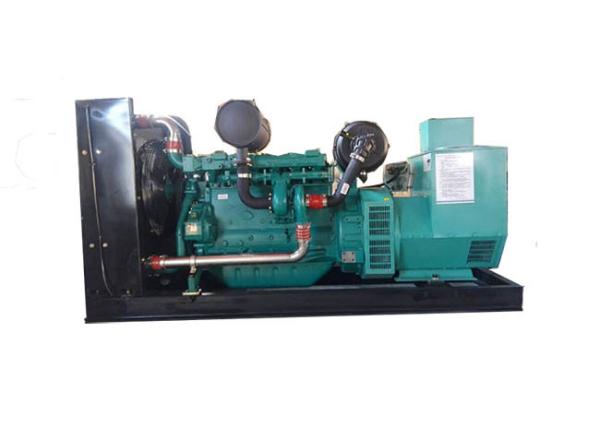

120KW Diesel Generator Powered By WEICHAI Engine WP6D152E200 For Mining Industry

High Efficiency
Low Fuel Consumption
Excellent Workmanship
Competitive Price
Professional Engineer Team
24 Hours After-Sales Service Team

Technical parameters of diesel generator sets:
Generator Set
Generator Model BSTW-120GF
Prime Power 120kw
Rated Voltage 400/230V
Frequency 50/60Hz
Power Factor 0.8(lagging)
Dimension (L×W×H) (mm) 3100*1050*1650
Genset weight (kg) 1500
Diesel Engine
Brand WEICHAI
Type WP6D152E200
Number of Cylinders 6
Rotating Speed 1500RPM
Cycle Four stroke
Cooling Method Water Cooling
Bore×Stroke(mm) 105*130mm
Displacement(L) 6.75L
Compression Ratio 18:1
Speed Governor Electrical
Cooling System Forced Water-cooling cycle
Total Lubrication System Capacity (L) 7.25L
Fuel Consumption at 100% Load 215g/kw.h
Starting Method 24V Electrical starting
Alternator
Brand Shanghai Stamford
Prime/Standby Power 138/152KW
Connecting Type 3 Phase and 4 Wires
Number of Bearing single
Protection Grade IP23
Altitude ≤1000M
Exciter Type Single Bearing,Brushless,Self-excited
Insulation Class H

120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current

120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current

Certificate Show:

120kw Miner Open Type Weichai Diesel Generator 1500kg 216a Rated Current

FAQ:

1. Can I have a sample for test?

A: Sorry,we can not offer a sample,as the unit price is not cheap,so please make the

understanding.

2. What is the frequency and voltage?

A: 50/60HZ,220/380,230/400V,240/415 or duble voltage.

3. What's your power range of diesel generators?

A: We can offer the range from 5kva~3000kva.

4. How do you ship the goods and when do you arrange production?

A: We usually send out the diesel generator by ship,after we received the deposit,we

can arrange the production.

5.What is your payment?

A: We receive 30% TT as the deposit,the balance before shipment.

6. Is it OK to print my logo on the diesel generator?

A: Yes. Please inform us formally before our production and confirm the design by yourself.

7: Do you offer guarantee for the products?

A: Yes, we offer 1 year or 1000 hours whichever comes first warranty time to our diesel

generator.

8: What is your payment term?

A: Our payment term is TT,L/C at sight,Credit Card.
