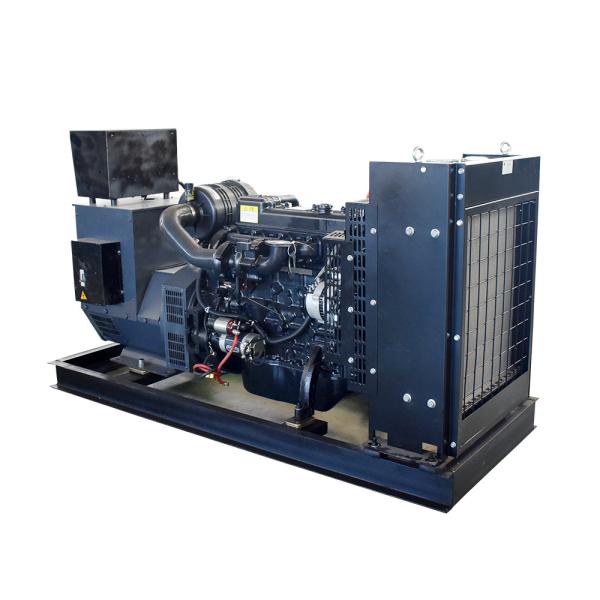

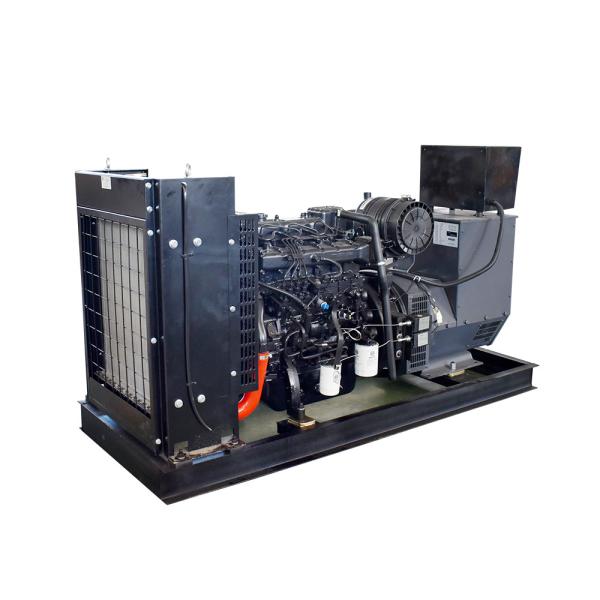

100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200
100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200
100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200
100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200
100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200
100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200
Specifications
Brand Name :
BST -WEICHAI
Model Number :
WP6D132E200
Certification :
CE ISO
Place of Origin :
Weifang ,China (Mainland)
MOQ :
1
Price :
Negotiated Price
Payment Terms :
L/C, T/T
Supply Ability :
100set per month
Packaging Details :
Plastic/ Wooden Case Packing Or Customized
Delivery Time :
30 work days
Rated Power :
100KW
Compression Ratio :
17:1
Speed :
1500/1800rpm
Speed Governor :
Electrical
QC Test :
2 hours QC test before shipment
Exciter Type :
Brushless,Self-excited
Frequency :
50HZ
Rated Current: :
180A
Warranty time :
1 year or 1000 hours
Other function :
AMF,ATS
Description

100KW Diesel Generator Powered By WEICHAI Engine WP6D132E200 For Construction Site

100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200

Supply Ability

Supply Ability:100set per month 100KW Diesel Generator Powered By WEICHAI Engine WP6D132E200 For Construction Site

Packaging & Delivery

Packaging Details : ply-wood case
Port : Port of qingdao or tianjin China
Lead Time :10 work days

Technical parameters of diesel generator sets:
Generator Set
Generator Model BSTW-100GF
Prime Power 100kw
Rated Voltage 400/230V
Frequency 50Hz
Power Factor 0.8(lagging)
Dimension (L×W×H) (mm) 2700*1000*2000
Genset weight (kg) 1550
Diesel Engine
Brand WEICHAI
Type WP6D132E200
Number of Cylinders 6
Rotating Speed 1500RPM
Cycle Four stroke
Cooling Method Water Cooling
Bore×Stroke(mm) 126*130mm
Displacement(L) 12.9L
Compression Ratio 17:1
Speed Governor Electrical
Cooling System Forced Water-cooling cycle
Condition Brand New
Fuel Consumption at 100% Load 200g/kw.h
Starting Method 24V Electrical starting
Alternator
Brand Shanghai Stamford
Prime/Standby Power 120/132KW
Connecting Type 3 Phase and 4 Wires
Number of Bearing single
Protection Grade IP23
Altitude ≤1000M
Exciter Type Brushless,Self-excited
Insulation Class H

Generator basic features:

High reliability :

• Adopting famous brand of Engine,Alternator,Control system.

• Adopting powder spraying process in the surface of the canopy,every part spraying individual before install.Have resistance ability of corrosion,scratch and rust

• The doors locks, hinges and screws have resistance of corrosion and rust because of stainless steel.

Security :

• The design and manufacture of muffle canopy meet the Europe CE standards.

• The sound absorption cotton adopt environmental,flame-retardant material.

100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200

100kw Diesel Generator Set IP 23 , ATS Diesel Electric Generator WP6D132E200

Our Service:

1. If you are interested in our products we sincerely invite you take a visit of our factory when you are in China.We can drive to pick you up and visit our factory.

2. Suggest the best choice or referential suggestion based on customers' information.

3. Build customers' profiles,follow-up service,make regular calls on customers.
