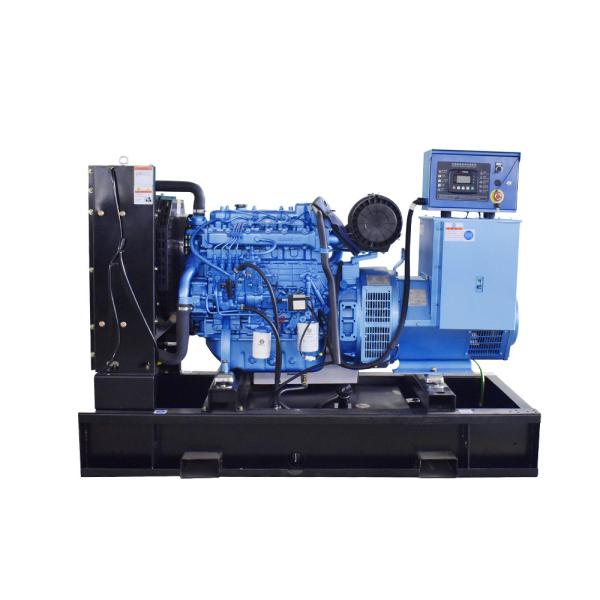

30kw 650kg School Large Diesel Generator With Three Cylinder Engine
30kw 650kg School Large Diesel Generator With Three Cylinder Engine
30kw 650kg School Large Diesel Generator With Three Cylinder Engine
30kw 650kg School Large Diesel Generator With Three Cylinder Engine
30kw 650kg School Large Diesel Generator With Three Cylinder Engine
30kw 650kg School Large Diesel Generator With Three Cylinder Engine
Specifications
Brand Name :
BST-WEICHAI
Model Number :
D226B-3D
Certification :
CE ISO
Place of Origin :
Weifang
MOQ :
1
Price :
Negotiated Price
Supply Ability :
100Set per month
Packaging Details :
Plastic/ Wooden Case Packing Or Customized
Delivery Time :
30 work days
Speed :
1500/1800RPM
Rated Power :
30Kw
Rated Current :
54A
Frequnecy :
50/60Hz
Rated Voltage :
400/230V
Output Type :
AC Three Phase
Genset Weight(kg) :
650Kg
Dimension(mm) :
1650*700*1120
Number of Cylinder :
3
Cooling System :
Water-cooled
Cycle :
Four Stroke
Description

Technical data

Genset Model

BST-30GF

Prime Power

30KW/37.5KVA

Rated Voltage

400/230V

Frequency

50/60Hz

Power Factor

0.8(lagging)

The regulating rate of steady voltage

≤±0.5%

The regulating rate of instantaneous voltage

≤-15%/ +20%

The time of steady voltage

≤1.5sec

The waving rate of voltage

≤1.0%

The regulating rate of steady frequency

≤3%

The regulating rate of instantaneous frequency

≤±10%

The time of steady frequency

3sec

Dimension (L×W×H) (mm)

1650*700*1120

Genset weight (kg)

650

Diesel Engine

Brand

Weichai

Model

D226B-3D

Number of Cylinders

3

Rotating Speed

1500/1800RPM

Cycle

Four stroke

Type

waste gas turbine boost,direct spurting type

Bore×Stroke(mm)

100*115

Displacement(L)

3.6

Lubricating Capacity(L)

10

Speed Governor

Electrical

Cooling System

Water-cooled

Speed Stability (%)

≤5%

Fuel Consumption at 100% Load

236g/kw.h

Starting Method

DC24V Electrical starting

Alternator

Brand

Stamford

Model

30GF

Number of Phase

3

Connecting Type

Three Phase and Four Lines

Number of Bearing

1

Grading Protection

IP22

Altitude

≤1000m

Exciter Type

Brushless (AVR automatic voltage regulating)

Insulation Class

H degree


30kw 650kg School Large Diesel Generator With Three Cylinder Engine30kw 650kg School Large Diesel Generator With Three Cylinder Engine
Certificate Show:
30kw 650kg School Large Diesel Generator With Three Cylinder Engine
Our service :

1. Help Customers find out the suitable power of the diesel generator.
2. Show the detail specifications to customers to choosen.
3. Help customers figure out the freight and arrange it.

FAQ:
1. What is the minimum order quantity for your project ?
Our order quantity is 1 set .
2. What Is Your Delivery Time?
Less than 10sets, 15 working Days After Received The 30%T/T Deposit.
3. Can You Make Your Own Brand For Your Customers ?
We Can be Your OEM Manufacturer With Your Authorization Of Brand.
4. What Are Your Payment Terms?
30% TT As Deposit,70% TT Before Shipment.
5. What is your company's available production capacity?
We Can Provide 100 Sets Per Month.
6. What ls The Warranty Period For Your Diesel Generator?
Our Warranty Period: 12 Months Or 1000 Hours Of Work!
