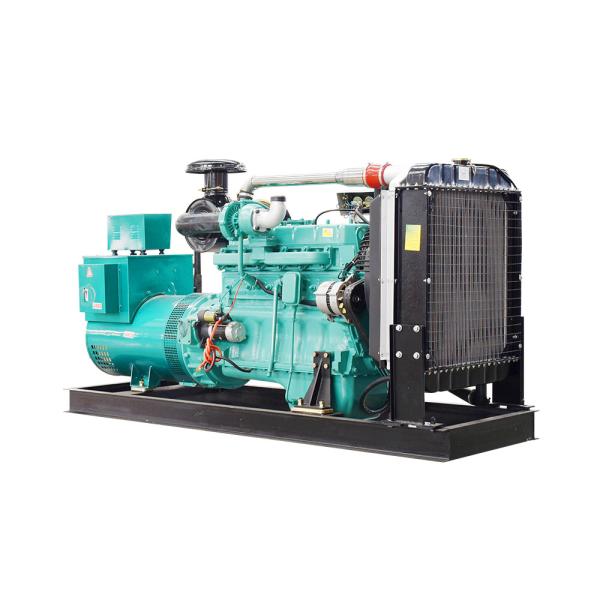

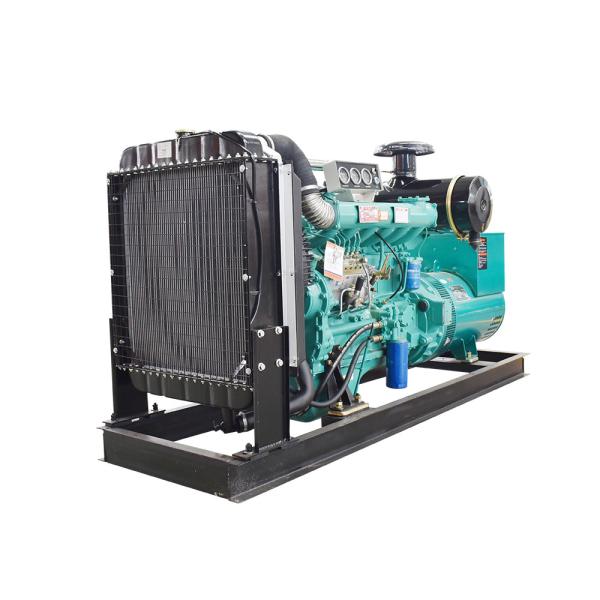

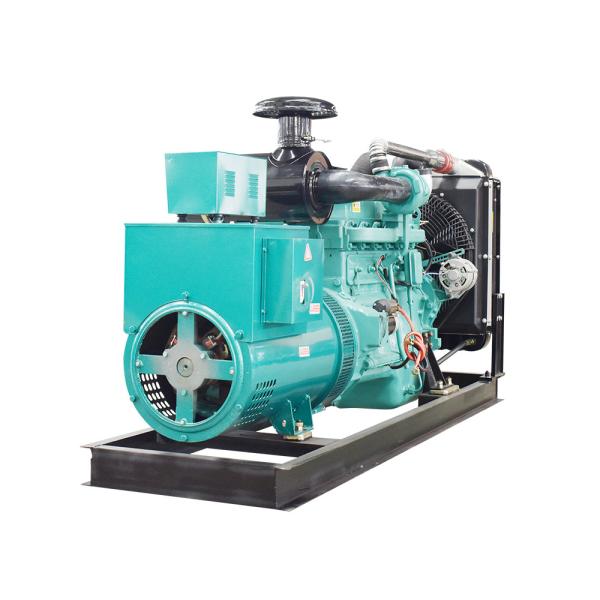

AC 3 Phase Electric Diesel Generator Set 40kw 4 Wires 72A Rated Current
AC 3 Phase Electric Diesel Generator Set 40kw 4 Wires 72A Rated Current
AC 3 Phase Electric Diesel Generator Set 40kw 4 Wires 72A Rated Current
AC 3 Phase Electric Diesel Generator Set 40kw 4 Wires 72A Rated Current
AC 3 Phase Electric Diesel Generator Set 40kw 4 Wires 72A Rated Current
AC 3 Phase Electric Diesel Generator Set 40kw 4 Wires 72A Rated Current
Specifications
Brand Name :
BST-WEIVHAI
Model Number :
TD226B-3D
Certification :
CE,ISO
Place of Origin :
Weifang,China(Mainland)
MOQ :
1
Price :
Negotiated Price
Packaging Details :
Plastic/ Wooden Case Packing Or Customized
Supply Ability :
100 set per month
Delivery Time :
30 work days
Output Type :
AC Three Phase
Speed :
1500rpm
Frequency :
50Hz
Rated Current :
72A
Control Panel :
LCD Digital Display
Cooling System :
Watered-Cooled
Options :
Battery Charger/ATS
Warranty :
1 year
Description

Product description :

1. Open type
2. CE,ISO9001,ISO14000
3. Low fuel consumption.
4. Global warranty service.

Genset
Model
BST-40GF
Rated Voltage
220/380V
Output Power
40KW
Dimension
1600*650*1180mm
Frequency
50HZ
Weight
620KG
Engine
Brand
Weichai
Rotating speed
1500rpm
Model
TD226B-3D
Displacement
3.12L
Cylinder
3
Fuel Consumption
215g/kw.h
Alternator
Brand
Stamford(adjustable)
Insulation
H degree
Number of Bearing
1
Exciter Type
Brushless
Connecting Type
3 Phase and 4 Lines
Grading Protection
IP22

AC 3 Phase Electric Diesel Generator Set 40kw 4 Wires 72A Rated Current

AC 3 Phase Electric Diesel Generator Set 40kw 4 Wires 72A Rated Current

Our service :

1. Help Customers find out the suitable power of the diesel generator.
2. Show the detail specifications to customers to choosen.
3. Help customers figure out the freight and arrange it.

Generator basic features :

High Reliability :

• Adopting famous brand of Engine,Alternator,Control system.

• Adopting powder spraying process in the surface of the canopy,every part spraying individual before install.Have resistance ability of corrosion,scratch and rust

• The doors locks, hinges and screws have resistance of corrosion and rust because of stainless steel.

Security :

• The design and manufacture of muffle canopy meet the Europe CE standards.

• The sound absorption cotton adopt environmental,flame-retardant material.

Diesel generator sets optional accessories (costs are extra):

1. The diesel generator set starts the battery float charger.
2.ATS dual power load automatic transfer switch).
3. Rainproof diesel generator set (rainproof generator set cabinet).
4. Silent diesel generator set (low noise generator set cabinet).
5. Self-protection of diesel generator set, self-starting control panel of diesel generator set, control panel with "three remote" function diesel generator set.
6. Mobile trailer diesel generator set (can be customized for two-wheel, three-wheel, four-wheel) and low-noise mobile power vehicle diesel generator set.
7. Diesel generator oil heater, diesel generator diesel heater, diesel generator water jacket heater.
8. Diesel generator set fuel tank (optional specifications: 200L, 500L, 800L, 1000L) integrated diesel generator base fuel tank.
