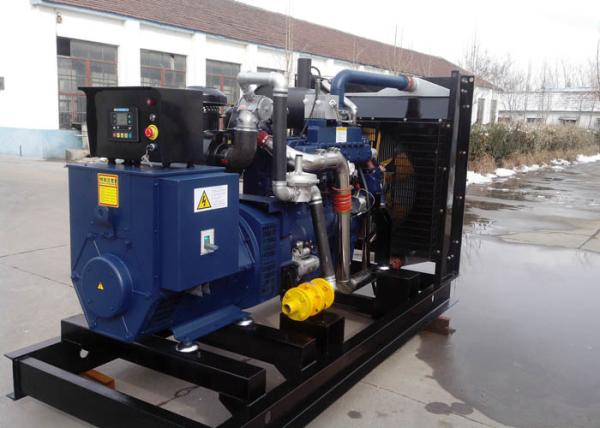

200 Kw Natural Gas Generator Set Electric Control Ignition Pre - Mixed Lean Burn
200 Kw Natural Gas Generator Set Electric Control Ignition Pre - Mixed Lean Burn
200 Kw Natural Gas Generator Set Electric Control Ignition Pre - Mixed Lean Burn
200 Kw Natural Gas Generator Set Electric Control Ignition Pre - Mixed Lean Burn
200 Kw Natural Gas Generator Set Electric Control Ignition Pre - Mixed Lean Burn
200 Kw Natural Gas Generator Set Electric Control Ignition Pre - Mixed Lean Burn
Specifications
Brand Name :
BST
Model Number :
BSTR-200GF
Place of Origin :
China
MOQ :
1 set
Price :
USD 20800 set
Payment Terms :
T/T, L/C
Supply Ability :
500 sets per month
Delivery Time :
10 work days
Packaging Details :
ply-wood case
Certification :
CE ISO
Rated Power (kW/KVA) :
200/250
Rated Current(A) :
160
Rated Voltage(V) :
400/230
Overall dimension (L x W x H)(mm) :
2650X1460X1880
Type :
electric control ignition, pre-mixed lean burn, turbocharged after cooled
Bore x Stroke (mm) :
126*155
Total displacement (L) :
11.9
Shaft :
Single bearing
Description

200kw Gas Generator Set,BSTR-200GF With CE ISO Electric Control Ignition

BST Natural Gas Generator Advantage:

1. Special design engine has longer life and overhaul time of 30000hours

2. High quality steel

3. Green environmental protection paint

4. ISO, CE, SONCAP approval

5. Global warranty: 12months or 1500hours

200KW Natural gas generator parameters

Generating set general Model BSTR-200GF
Structure integral
Exciting method AVR Brushless
Rated Power (kVA/kW) 250/200
Rated Current(A) 160
Rated Voltage(V) 400/230
Rated Frequency(Hz) 50
Rated Power Factor 0.8 LAG
Overall dimension (L x W x H)(mm) 2650X1460X1880
Net weight (kg) 2250
Gas Engine Model R6126IZLD
Type

electric control ignition, pre-mixed lean burn,
turbocharged after cooled
Cylinder number 6
Bore x Stroke (mm) 126*155
Total displacement (L) 11.9
Rated Power (kW) 220
Rated Speed (r/min) 1500
Fuel type natural gas
Alternator Model 200GF
Brand BST
Shaft Single bearing
Rated Power (kW) 200
Rating(kVA) 250
Enclosure protection IP23
Efficiency(%) 92.5



Why chooes us


Engine :


1. Forged steel crankshaft made in a single piece.
2. Cylinder head made out of high-quality alloy cast iron.
3. Imported cylinder block rough cast features with smaller in size,lighter in weight.
4. Less vibration, lower noise and higher reliability.
5. Low fuel consumption and lower emission
6. Strong power, and the overall period (more than 12000hours)

Alternator:


Brushless exciting, built in AVR ,excitation with permanent magnet motor or auxiliary winding , providing over three times of continuous current for 10 seconds.
1. Enameled pure copper wires.
2. Silicon steel stator.
3. Stator coiling with pure copper wires.

Genset:


1. Adopting famous brand engine.
2. With competitive price.
3. Power from 15kw-1000kw.
4. Can work for 12hours everyday.

Certificate Show

200 Kw Natural Gas Generator Set Electric Control Ignition Pre - Mixed Lean Burn

Company Profile

Weifang Best Power Equipment Co., Ltd Located In "World Kite Capital "--Weifang Shandong Province Was Founded In Apri-24th 2014.The Company Is A Production, Sale, Import And Export Trade In An Integrated Enterprise, With Independent Legal Person Qualification.Main Business:10kw--1000kw Diesel Engine Which Used For Generator, Drainage And Irrigation Equipment, Fire Unit, And The Ship.
