Specifications
Brand Name :
BST
Model Number :
6105IZLD-G
Certification :
CE ISO
Place of Origin :
weifang
MOQ :
1 set
Price :
can be discussed
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
10 work days
Packaging Details :
ply-wood case
Rated Current(A) :
180A
Rated Voltage(V) :
400/230V(applied to 110V/220V/240V/380V/440V/480V)
Output Type: :
AC Three Phase
Optional: :
Soundproof / Waterproof canop
Frequency :
50/60HZ
No.of cyls :
6
Cooling method :
open/closed water cooling
the total displacement :
9.726
speed :
1500/1800rpm
Description

AC Three Phase Water Cooling Natural Aspiration Gas Generator Set 100KW

  • 10-1000kw(12.5kva-1250KVA) gas generator (Natural gas/Biogas/ LPG,biomass etc) with Deutz,Steyr,Ricardo, Weichai,Yuchai,Man brand engine etc.
  • alternator. Brushless excitation and "H" class insulation.
  • Moistureproof and derusting processing, effectively protect the generator from humid weather
  • High quality steel
  • Green environmental protection paint
  • Cooling system: combined cooling water tank fitted to meet the requirement
  • Global warranty: 12months or 1500hours
Genset Model BSTR-200GF
Continuous Power (kW/kVA) 100
Rating Power Factor 0.8
Rating Voltage 430/230V
Rating Current 180A
Frequency 50/60Hz
Speed 1500/1800rpm
Air inlet Natural Aspiration
Gas Engine Model 6105IZLD-G
No.of cyls 6
Bore /trip 126/130
Cooling Type open/closed water cooling
Start Mode Electrical start motor, 24VDC
Genset Open Type Size 3200*1000*1566 mm
The total displacement (L) 9.726



  • Alternator:
  • Brushless exciting, built in AVR ,excitation with permanent magnet motor or auxiliary winding , providing over three times of continuous current for 10 seconds.
  • Enameled pure copper wires.
  • Silicon steel stator.
  • Stator coiling with pure copper wires.
  • Genset:
  • Adopting famous brand engine.
  • With competitive price.
  • Power from 15kw-1000kw.
  • Can work for 12hours everyday.

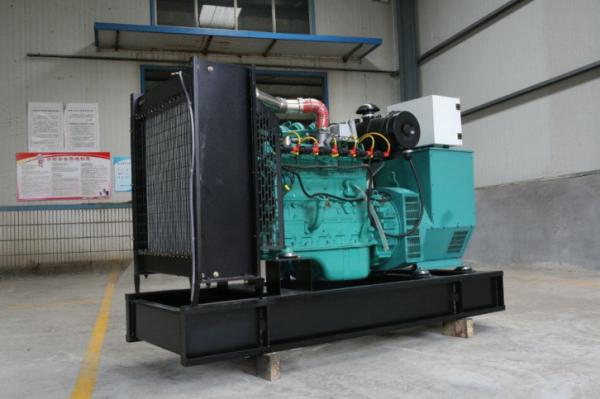

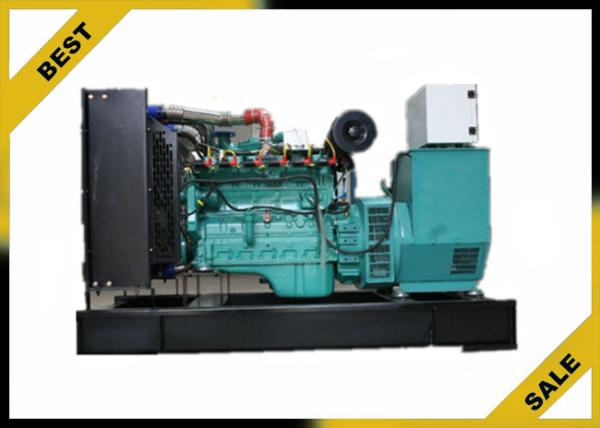

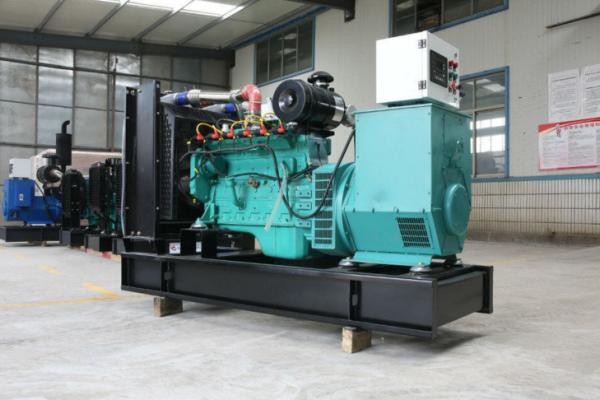

product show

50 / 60 HZ Natural Gas Generator Set 6105IZLD - G Water Cooling Smooth Running

OEM Service of Natural Gas Generator Set:


We can provide professional OEM Service for customers.


1. Unique design and manufacture of Natural Gas Generator Set according to customers requirement.
2. Customer logo printing or painting on the Natural Gas Generator Set genset.
3. Installation and Operation manual neutral or headings can be design according to customer requirement.
4. Full warranty cover to support customers
