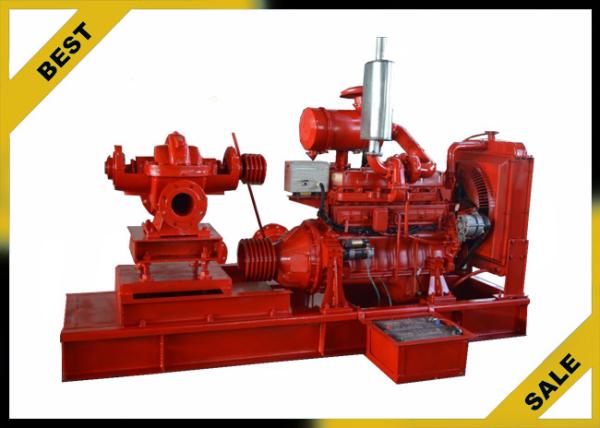

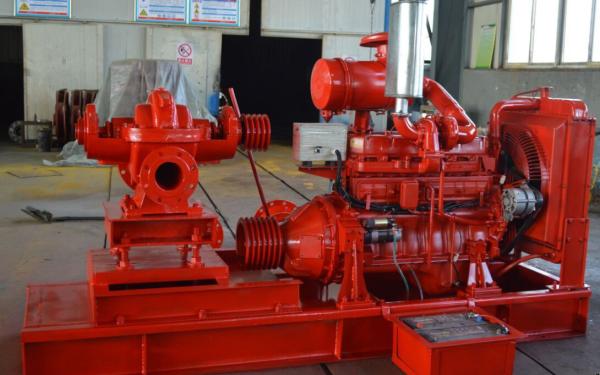

Professioal Diesel Water Transfer Pumps Powerful , Petrol Water Pump For Fire Fighting
Professioal Diesel Water Transfer Pumps Powerful , Petrol Water Pump For Fire Fighting
Professioal Diesel Water Transfer Pumps Powerful , Petrol Water Pump For Fire Fighting
Professioal Diesel Water Transfer Pumps Powerful , Petrol Water Pump For Fire Fighting
Professioal Diesel Water Transfer Pumps Powerful , Petrol Water Pump For Fire Fighting
Professioal Diesel Water Transfer Pumps Powerful , Petrol Water Pump For Fire Fighting
Specifications
Brand Name :
BEST
Model Number :
ZH4105ZD
Certification :
CE ISO
Place of Origin :
ChIna
MOQ :
1
Supply Ability :
150/mon
Packaging Details :
186m³/h,head lift:27.8m
Model of Diesel pump set :
BSTB-240-55
Usage :
Fire fighting pump
Treated Water :
FRESH WATER/RIVER WATER
Rated Speed (r/min) :
1500
Shaft Power :
38.3KW
Inlet diameter :
200mm(8inch)
Outlet diameter :
150mm(6inch
name :
diesel water pump machine
Shaft material :
cast iron
ImpImpeller material :
cast iron
Sealing method :
stuffing sealing
Type :
Electric Diesel Engine
Description

Professioal design fire fighting diesel engine water pump with powerful 56KW engine​

The mobile diesel water pump can be widely used for warehouse,docks,airport,petrochemical,texitile,flood,drought and other occasions of water supply and drainage,according to customer demand customize various mobile,mute,self-starting,remote control,etc.

Diesel Pump Set BSTB-240-55 (Q=240m3/h H=55m)
Model Diesel Engine Ricardo R4105ZD (or DEUTZ engine)
Treated Water Fresh water
Rated Output 56KW
Speed(r/min) 1500
Starting Method 24V DC Electric motor
Cooling Method Closed water cooling
Governing Method Mechanic governing
Cylinders 4
Type Closed water cooling,in-line,4 stroke ,humid liner ,direct injection
Model Pump IS200-150-400
Type Single-stage ,single suction, centrifugal pump
Outflow 240 m3/h
Head lift 55m
Shaft power 38.3kw
Suction lift 6.6m
Inlet diameter 200mm (8inch)
Outlet diameter 150mm (6inch)
Casing material Cast iron
Shaft material Cast iron
Impeller material Cast iron
Sealing method Stuffing seal
Control System Display oil pressure ,speed ,water temperature ,oil temperature.
Standard Equipments Diesel engine: one set
Water pump:one set
Common base with 8 hours fuel tank:one set
Oil filter:one set
Fuel filter:one set
Air filter:one set
Display meters: four sets
Battery: DC 12V*2 pics
Spare parts
Technical file: one set
Packing Plywood case
Payment Terms T/T30% deposit ,balance before shipment
Delivery Time 15working days after received 30%deposit
MOQ One set

Company Profile

Weifang Best power equipment co., LTD was founded on April 27, 2014, is located in the beautiful world kite - shandong weifang,The company is a production , sale , import and export trade in an integrated enterprise, with independent legal person qualification. Main business: 10KW--2000KW diesel engine which used for generator, drainage and irrigation equipment, fire unit,and the marine engine .

Product Usage

1: petrochemical

2: textile

3: irrigation

4: drought

5: airport
