As a professional manufacturer and trading enterprise, specialized in the export of wheel loaders, skid steer loader ,tractors,forklifts and all kinds of attachments, around 12 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,and Specialized testing,we ensure every machine that you received has very reliable quality and stability.

Features:
1. The hydraulic oil tank is integrated with the chassis, saving space and making the machine more robust.
2. Adopt national famous engine and hydraulic parts to ensure that the machine can handle all kinds of work.
3. Self-developed leveling system, when the boom is raised, the bucket can keep flat.
4. When the working device is working, the boom lift and bucket rotation can be performed at the same time, which greatly improves the work efficiency.
5. The handle imported from Italy is easy to operate and saves labor, so that the operator can quickly and skillfully operate the machine.

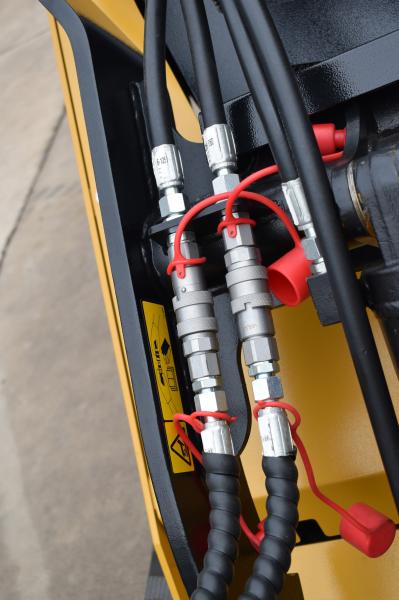

6. Adopt international quick-change device, which can quickly and easily replace various auxiliary equipment. The joints of pipelines also adopt international general standards.
7. The stand-up operation has a good field of vision, and all the instruments are arranged in a place that is easy to observe.

Technical specifications:
PERFORMANCE
Operating Capacity (35%) ........................................................................................................................................ 238 kg
Operating Capacity (50%) ..................................................................................................................................340 kg
Tipping Capacity.................................................................................................................................................680 kg
Weight (no attachment) .....................................................................................................................................1090 kg
Travel Speed .................................................................................................................................................... 5.6 km/h
ENGINE/ELECTRICAL
Make/Model ................................... Kubota // D1105-E4B-CSR-1
Fuel/Cooling ................................... Diesel/Liquid
Horsepower (SAE Gross) ............... 18.5kW
Maximum Governed RPM .............. 3000 RPM
Torque @ 2200 RPM (SAE Net) ..... 71.5 Nm
Number of Cylinders ...........................3
Displacement ................................. 1.123L
Bore/Stroke .................................... 78mm/78.4 mm
Fuel Consumption .......................... 6.1 L/h
Lubrication ..................................... Gear Pump Pressure
Crankcase Ventilation .................... Closed
Air Cleaner ..................................... Dry replaceable cartridge with safety element
Ignition ........................................... Diesel-Compression
Engine Coolant ............................... Propylene glycol/water mix (53%-47%)
with freeze protection to -37°C
Starting Aid .................................... Glow plugs
Alternator ....................................... Belt Driven;40 amps;Open
Battery ........................................... 12 V;45Ah
Starter ............................................ 12 volt;Gear Reduction Type;1.4 kW
HYDRAULIC SYSTEM
Pump Type ............................................... Engine driven, Two Gear type
Pump Capacity ........................................ 53.4L/min@ 3000 RPM
System Relief @ Quick Couplers ............. 210 Bar
Hydraulic Filter ......................................... Full flow replaceable, 10 micron synthetic media element
Hydraulic Cylinders .................................. Double-acting
Main Control Valve ................................... 5-Spool, open center series parallel configuration
Attachment Control Valve.........…. 2-Spool, open center series parallel configuration
Bore Diameter
Lift Cylinder (2) .................................. 45mm
Tilt Cylinder (1) .................................. 55mm
Rod Diameter
Lift Cylinder (2) .................................. 25 mm
Tilt Cylinder (1) .................................. 30 mm
Stroke
Lift Cylinder (2) .................................. 345 mm
Tilt Cylinder (1) .................................. 292mm
Hydraulic Function Times
Raise Lift Arms .................................. 3.5 Seconds
Lower Lift Arms .................................. 2.4 Seconds
Bucket Dump ..................................... 2.5 Seconds
Bucket Rollback ................................. 1.8 Seconds
DRIVE SYSTEM
Main Drive .............. Fully hydraulic rubber track drive
Transmission .......... Direct drive of hydraulic motor to main undercarriage drive sprocket
Tracks .................... 200 mm wide
Rollers......….. 3 Each side
Pressure ........ 25.4 kPa
CAPACITIES
Cooling System ..................................... 5.2 L
Fuel Tank ................................................ 35 L
Engine Oil with Filter .............................. 5.1L
Hydraulic Reservoir ............................ …34 L
Hydraulic System ............................... ….40 L
CONTROLS
Vehicle Steering ................... Direction and speed controlled by two handle
Lift & Tilt ........................ Controlled by one hand lever
Front Auxiliary (Std.) ...... Controlled by one hand lever
Auxiliary Pressure Release .. Fore and aft movement of hand lever after engine has been shut off.
Engine ................................. Hand lever throttle: Key-type starter switch and shutdown
Starting Aid .......................... Glow Plugs - Activated by key switch
INSTRUMENTATION
The mini track loader conditions are monitored by a combination of gauges and warning lights in the operator's line of
sight that monitor the following functions. The system shall alert the operator of
monitored loader malfunctions by way of an visual warning lights.
Gauges Warning Lights
Hourmeter Engine Oil Pressure
Fuel Engine Coolant Temperature
System Voltage

Packaging & Shipping:

small farm equipment mini multi-purpose machine skid steer mini
* LCL:Steel pallet with ply-wood cover for sample order,It's very strong to protect mini skid steer loader .
* FCL:Direct load into the container: 20'ft container: 4 unit ; 40'ft container: 8unit
