Road construction, side ditch, foundation construction, building houses, strengthening roads, etc.
This high-productivity automatic concrete mixer is reasonably priced, easy to use, and has excellent day-to-day performance and reliability: due to these characteristics, it is also an ideal solution for rental and use.
Ergonomics and safety
Protecting the safety of workers is an obligation no organization can neglect nowadays. We are proud of this machine, which has been specially designed to provide full handling, the best ergonomic features for the driver and the latest safety devices available on the market. Our machines are in fact equipped with fan and air conditioner, with ergonomic controls and multi-function joystick, and with reversible driver's seat.Reflector and camera, increases the range of vision,help the operator observe the situation around .

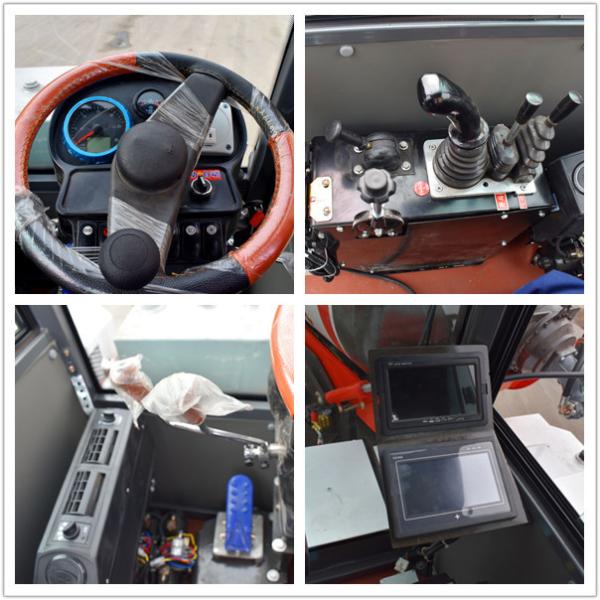

Comfort and visibility
1).Pilot operation, flexible and convenient, the touch screen quantitatively adds water to make the mixing more uniform, more in line with the standard
2).Multi-function joystick make operator easy to control.
3).The cab has air conditioner (optional), comfortable and cool.
4).Reflector and camera, increases the range of vision,improves work efficiency, eliminates safety hazards and blind spots in the cab .
5).The spacious cabin windshield and specially designed loading arm greatly improve operational visibility.
Machine size (mm) | 4750*2200*2850 |
Wheelbase (mm) | 2180 |
Total weight (kg) | 4500 |
Engine | YunNei 490 supercharged |
(Weichai, Cummins optional) | |
Power (kw) | 55 |
Gearbox | 265 Integral |
Drive axle | 1.8T wheel side deceleration bridge |
Tires | 20.5-16 |
Bucket capacity (m³) | 0.33 |
Drum power (m³) | 7.5 |
Roller capacity | >=0.9 |
Reduction ratio | 1:24 |
Rotating speed (RPM) | >=15 |
Reducer | Made in China |
Drum rotation angle | ±90 ° |
Tank capacity | 1500L |
Loading qty | 2sets /40 HC |
Concrete yield | 8-10m³/h |
Warranty period | Engine:6 months/Hydraulic system:12months |
Company introduction
Established in 1992, Weifang Best Power Equipment Co., Ltd. is a collectivized company integrating production, sales, and trade. Now we have five subordinate factories, a product development team including 30 professional researchers and 300 staff members. The production fields include construction machinery, power machinery and food machinery. The main products, like concrete mixer truck, gensets, and pumps, have been exported to Australia, the Middle East, Malaysia, Mongolia, Russia, etc. we have 7 dealers worldwide. With the tenet, "Credit First, Mutual Benefit and Common Development", Best power has become an excellent enterprise which is deeply trusted by customers.
Our advantages
1.Low cost of consumption
No need to use a mixer, save 100 degrees every day, no concrete carrier, no loader loading, and save at least 3 workers per day!
2.Two-way driving
The cab operator station can be rotated to perform two-way driving in front and rear.No need to turn the head, it's more conveninet and efficient.
3.Roller rotation system
The boom and drum can be rotated horziontally 90° at the same time,a total of 180°,flexible feeding and unloading.
4.Efficient unloading
Tiltable unloading function for mor complete discharge and faster speed.
5.Simple operation and best performance
It's easy to operate with best performance.
6.Factory direct selling price
We make,we sell.We promise the quality and price.
Certifications
Customers
FAQ
1.Q:Do you have any features difference from other suppliers?
A: Imported hydraulic press to ensure the swivel joint finish the rotation smoothly. We have the imported hydraulic motor can reach the speed at 20-25 revolutions/minute, but other supplier's can only reach at 13-15 revolutions/minute
2.Q:What is the suitable construction for the product?
A:Highway engineering in level road and mountain areas;Building; Construction sites ,etc.
3.Q: How long is your delivery time?
A: If you order within five units, the delivery time will be five to seven days. If the quantity is more than 5 units, then the delivery time will be ten to fifteen days.
4.Do you provide free spare parts?
A: Yes, we provide free spare parts within the warranty period.
5.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
