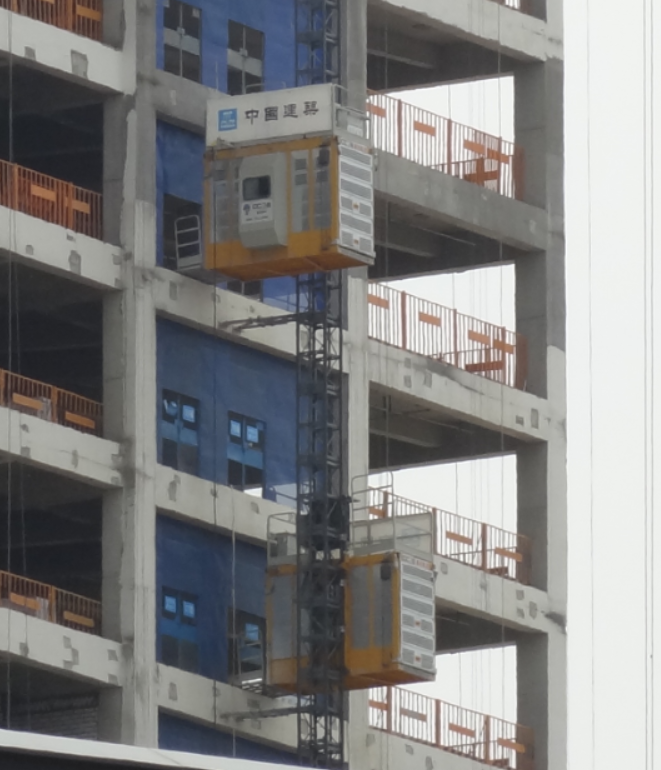

SC320/320 Passenger And Material Hoist For Construction Site And Plants Max 450M
SC320/320 Passenger And Material Hoist For Construction Site And Plants Max 450M
Specifications
Brand Name :
KANGBO
Model Number :
Construction site lift rack and pinion type SC300BG MP-B15 SC300/300BG MP-B16
Certification :
TUV, CCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
25-30 days
Packaging Details :
One 20'GP container can load a 50mtrs single cage lift
Name :
Passenger and Material Construction Elevator
Max Height :
450M
Application :
Vertical transportation of man and material
Production :
Standardized production, Processed by CNC machines, Laser, Robots in assembly line
Motor Control :
VFC (Variable Frequency Control)
Color :
Colors available
Description

Material And Passenger Lift SC320/320 For Construction Site And Plants Max 450M

Passenger and Material Construction Elevator Introduction

Construction lifter is mainly used to transport workers and materials to multistoried building.

The Construction lifter has advantages, such as steady satety, reliability, flexible and good adaptability, etc.

It improves work efficiency and reduces work intensity.

Our Material Elevator Features and Advantages
* The modular and standardizing system makes our construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost.
* The passenger and material hoist runs stably and smoothly, and starts and stops without surging or jerking.
* The passenger and materail elevator is reliable with very little breakdown and is durable with very long work-life.
* The helical gearboxes which made specially for rack and pinion elevators, are extremely strong, reliable and durable.
* The integrated elevator car roof, which made by a steel plate with edges fully welded, enhance hoist cage strength and ensure no leakage.
* Easy access to electrical panels of elevator for maintenance.
* Full set of certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.

Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.

Technical Data

Item & Article No. SC320, KP-B17; SC320/320, KP-B18
Payload Capacity 3.2 Ton per Cage
Lifting Speed 0–46 m/min.
Max. Lifting Height 450 m
Cage Size (internal) 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage
Cage Doors Flap type as a ramp is available
Motor Control FC (Frequency Control)
Engine Power 3x15 KW per Cage
Gearbox Helical Gearbox
Safety Device Type Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 Phase
Type of Mast Square Column 650*650 mm with Bolted Rack
Length Mast Section 1.508 m
Rack Module 8
