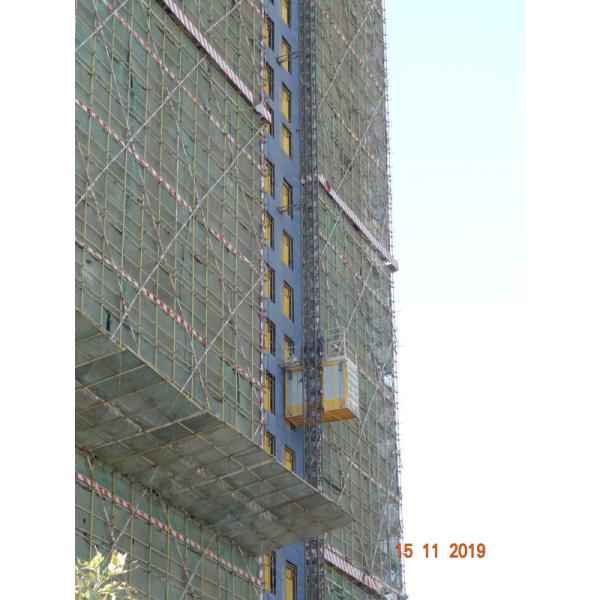

Safety 2000 KG Per Cage Rack Pinion Hoist
Safety 2000 KG Per Cage Rack Pinion Hoist
Specifications
Brand Name :
KANGBO
Model Number :
Construction rack and pinion material hoist SC200BD, MP-B05; SC200/200BD, MP-B06
Certification :
TUV, CCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate in USD
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
25-30 days
Packaging Details :
Export package
name :
Construction Material Lifting Equipment
Application :
Construction site, building site
Design :
Modular
Material :
Q345B steel
Production :
Standardized production, Processed by CNC machines, Laser, Robots in assembly line.
Capacity :
2,000 KG Per Cage
Description

Safety 2,000 KG Per Cage Construction Material Lifting Equipment

We can produce the following kinds of building hoist:

1. Normal building hoist

2. High-speed frequency conversion hoist

3. Multifunctional building hoist

4. Curved & Inclined hoist

5. Double pillar Heavy duty hoist

6. Mini Hoist

Production and Materials


KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.

Configuration


There is a small crane for conenient assembly of the construction lift.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.

Technical Data

Item & Article No. SC200BD, MP-B05; SC200/200BD, MP-B06
Payload Capacity 2,000 KG per Cage
Lifting Speed 0–36 m/min.
Max. Lifting Height 450 m
Cage Size (internal) 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage
Cage Doors 3 doors, Entry Door + Exit Door + Side Door
Motor Control FC (Frequency Control)
Engine Power 2x11 KW per Cage
Gearbox Helical Gearbox
Safety Device Type Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 Phase
Type of Mast Square Column 650*650 mm with Bolted Rack
Length Mast Section 1.508 m
Rack Module 8
