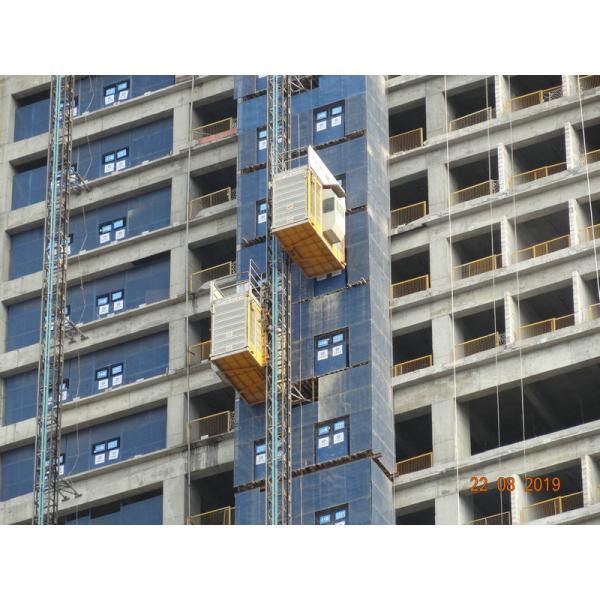

Modular Design Double Cage 3000kg Construction Hoist Elevator
Modular Design Double Cage 3000kg Construction Hoist Elevator
Specifications
Brand Name :
KANGBO
Model Number :
Rack and pinion hoist SC300BG KP-B15 SC300/300BG KP-B16
Certification :
TUV
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
150 sets
Delivery Time :
30 days
Packaging Details :
export package
name :
Construction Hoist Elevator
Application :
Construction site, factory
Design :
Modular Design
Production :
As per EN 12159:2012, EN 60204-1:2006/A1:2009.
Motor Control :
Frequency Control
Description

Modular Design Double Cage Construction Hoist Elevator

Construction Hoist Elevator Application

It is widely used in building construction, industrial and mining enterprises, multi-storey workshop, warehouse, terminal stations, construction sites as industrial and civil architecture, bridge, underground, large chimney, bridge, underground, large chimney, ship industry and so on.

Construction Hoist Elevator Design


It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.

Multiple choice of construction lifts car doors or ramps is available.

Construction Hoist Elevator Production and Materials


KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.

Construction Hoist Elevator Parameters

Item & Article No. SC300BG, KP-B15; SC300/300BG, KP-B16
Payload capacity 3000 kg
Lifting speed 0–60 m/min.
Max. lifting height 250/400 m*
Cage width (internal) 1.5 m
Cage length (internal) 3.2 m
Cage height (internal) 2.35 m
Motor control Frequency Control
Engine power 3x23 kw
Gearbox Helical reducer
Safety device type centrifugal brake
Power supply range 380–500 V, 50 or 60 Hz, 3 phase
Mast Section Square column 650*650*1508 mm with bolted rack
Rack module 8
