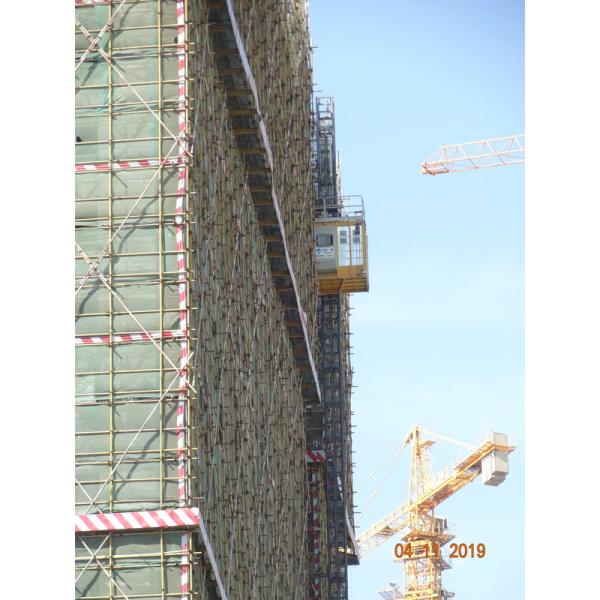

Interchangeable 2000 Kg Rack Pinion Lift Construction Hoist Elevator
Interchangeable 2000 Kg Rack Pinion Lift Construction Hoist Elevator
Specifications
Brand Name :
KANGBO
Model Number :
SC200/200(BD) KP-B07, KP-B08
Certification :
TUV
Place of Origin :
CHINA
MOQ :
1 unit
Price :
negotiate
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
30 days
Packaging Details :
Export package
Item :
Construction Hoist Elevator
Design :
Modular design
Material :
Q345B cool roll steel plate
Production :
Processed by CNC machines, Laser, Robots in assembly line.
Feature :
Interchangeable
Load :
2,000 Kg
Description

Interchangeable 2,000 Kg Construction Hoist Elevator

Construction Hoist Elevator Design


It is the truly modular rack and pinion hoist design, so the construction elevator drive devices and cars are generic and interchangeable.

Construction Hoist Elevator Production and Materials


KANGBO implements the true modular design of construction rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.

Construction Hoist Elevator Features and Advantages


* The Construction Site Lift runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and material elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.

Construction Hoist Elevator Parameters

Technical Data SC200/200BZ KP-B0708 Construction Hoist Elevator
Payload Capacity 2,000 kg
Lifting Speed 0–46 m/min.
Max. Lifting Height 450 m
Cage Width (internal) 1.5 m
Cage Length (internal) 3.2 m
Cage Height (internal) 2.35 m
Motor Control Frequency Control
Engine Power 2x15 kw
Gearbox Helical Gearbox of KANGBO Make
Safety Device Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 phase
Mast Section Square column 650*650*1508 mm with bolted rack
Rack Module 8
* Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer.
