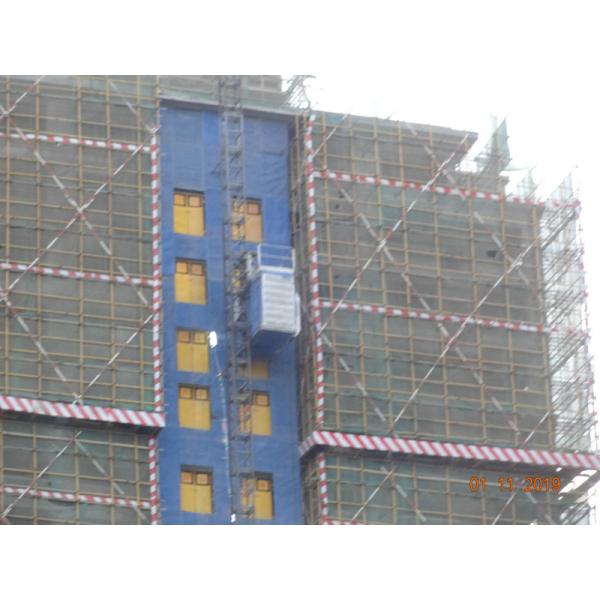

Motor Control Double Cage 36m / Min Construction Site Lift
Motor Control Double Cage 36m / Min Construction Site Lift
Specifications
Brand Name :
KANGBO
Model Number :
SC200/200, KP-B05,B06
Certification :
TUV
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
150 units per month
Delivery Time :
30 days afetr receipt of T/T or L/C
Packaging Details :
Export package
name :
Construction Site Lift
Material :
Q345B steel
Processing :
Cut by Laser, Processed by CNC machines
Apply location :
Construction site, plants, etc.
Purpose :
Vertical transportation of materials and persons
Control :
VFC Motor Control
Description

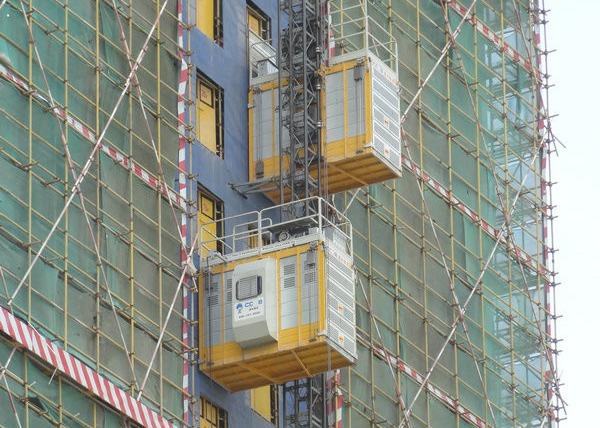

VFC Motor Control Double Cage Construction Site Lift

Introduction

construction elevator, adopt external setting meshing rack and pinion type design,rated load is 2T, rated lifting height is 150m. Equipped with a national patent approved progressive safety device, can brake automatically when falling situation occurs. And the drive system is on the top of the cage, reliable and easy to operate and maintenance.The highest working lifting height can up to 300M. Construction Elevator is widely used in Construction Projects, Such as industrial and residential building projects, bridge construction, underground construction, large chimney construction buildings and shipping building industry and other place.Which is a vertical transport equipment used for material and personnel as a permanent and temporary elevator also van be used for warehouse and high towers buildings projects.

Product Features


Adopt own-make high efficient gear type reducers.
Typesof exit doors are availble, including Flap Door as loading/unloading ramp.


Production


Main parts are made of Q346 cool roll steel plate, cut by Laser and processed by CNC machines and robots.
Enlarged and thickened main steel channel of the cage frame.
The fully welded cage roof edges make the cage roof waterproof.

Technical Data KP-B05, KP-B06
Payload capacity 2,000 kg
Lifting speed 0–36 m/min.
Max. lifting height 400 m
Cage width (internal) 1.5 m
Cage length (internal) 3.2 m
Cage height (internal) 2.35 m
Motor control VFC control
Engine power 2x11 kw
Gearbox Gear Type Reducer
Safety device type Centrifugal Brake
Power supply range 380–500 V, 50 or 60 Hz, 3 phase
Type of mast square column 650*650 mm with bolted rack
Length mast section 1.508 m
Rack module 8
