Specifications
Brand Name :
KANGBO
Model Number :
Building site rack and pinion hoist SC200BD MP-B05 SC200/200BD MP-B06
Certification :
TUV, CCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate in USD
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
25-30 days
Packaging Details :
Export package
name :
Construction Material Lifting Hoist
Application :
Construction site, building site
Material :
Q345B cool roll steel plate
Production :
Standardized production, Processed by CNC machines, Laser, Robots in assembly line
Finishing :
Sandblasting and paint
Color :
customized
Max Speed :
36 M/Min
Description

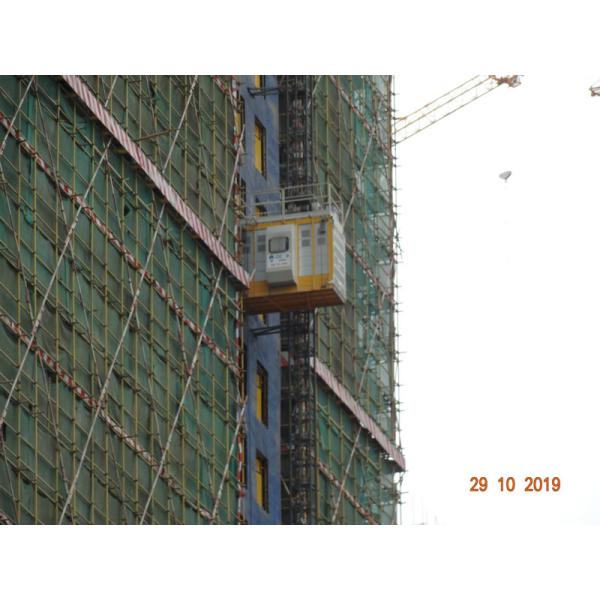

High Efficency 36 M/Min Construction Material Lifting Hoist

Construction Material Lifting Hoist Application:

We are special supplier of building hoist in China, our building hoist have been Widely exported to all over the world and won good reputation, whose payload capacity is as much as 4000kg, lifting speed can reach up to 96m/min, and the erection height reaches up to 350m., our products have been widely used for transportation for both men and cargo in field of general buildings, but also industry, electric power, mining well, oil, chemical industry etc.

Construction Material Lifting Hoist Features and Advantages


* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* The additional big size third door at the cage side let the users to use fork trucks to load/unload extremely heavy and big size materials.
* Easy access to electrical panels of elevator for maintenance.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Frequency control unit (FC), with closed-loop, which gives the passenger and material hoists very smooth starting and stopping with low starting current and less wear and tear.

Construction Material Lifting Hoist Techical Data

Item & Article No. SC200BD, MP-B05; SC200/200BD, MP-B06
Payload Capacity 2,000 KG per Cage
Lifting Speed 0–36 m/min.
Max. Lifting Height 450 m
Cage Size (internal) 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage
Cage Doors 3 doors, Entry Door + Exit Door + Side Door
Motor Control FC (Frequency Control)
Engine Power 2x11 KW per Cage
Gearbox Helical Gearbox
Safety Device Type Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 Phase
Type of Mast Square Column 650*650 mm with Bolted Rack
Length Mast Section 1.508 m
Rack Module 8

36 M / Min Construction Material Lifting Rack & Pinion Hoist
