FC Motor Control 450m Rack & Pinion Building Site Hoist
FC Motor Control 450m Rack & Pinion Building Site Hoist
Specifications
Brand Name :
KANGBO
Model Number :
Building site hoist SC320(BZ) KP-B17 SC320/320(BZ) KP-B18
Certification :
TUV
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate in USD
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
25-30 days
Packaging Details :
Export package
name :
Building site hoist
Application :
Man and material transportation at building site
Material :
Q345B cool roll steel plate
Hight :
450m
Finishing :
Sandblasting and Painted, Galvanised
Control :
FC Motor Control
Description

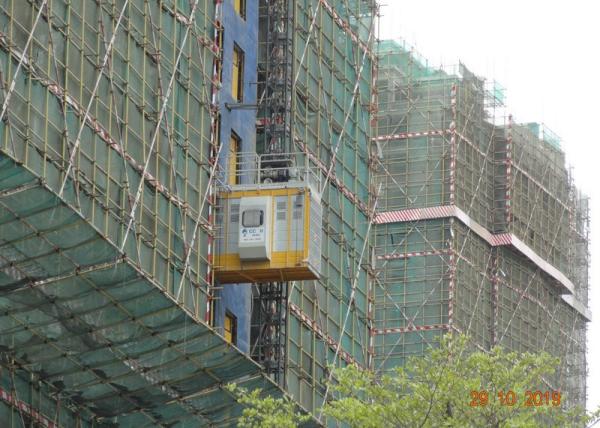

FC Motor Control 450m Building Site Hoist

Building Site Hoist Details

The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.

Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.

Building Site Hoist Standard Configuration


There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.

Building Site Hoist Optional equipment


An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.
Multi-function Control System of fault detect, display and alarm, and automatic cage landing/stop and floor selection is available.

Building Site Hoist Technical Data

Item & Article No. SC320(BZ) KP-B17, SC320/320(BZ) KP-B18 Building Site Hoist
Payload capacity 3,200 kg per cage
Lifting speed 0–46 m/min.
Max. lifting height 450 m
Cage width (internal) 1.5 m
Cage length (internal) 3.2 m
Cage height (internal) 2.35 m
Motor control FC control
Engine power 3x15 kw per cage
Gearbox Helical reducer
Safety device type centrifugal brake
Power supply range 380–500 V, 50 or 60 Hz, 3 phase
Mast section square column 650*650*1508 mm with bolted rack
Rack module 8

FC Motor Control 450m Rack & Pinion Building Site Hoist
