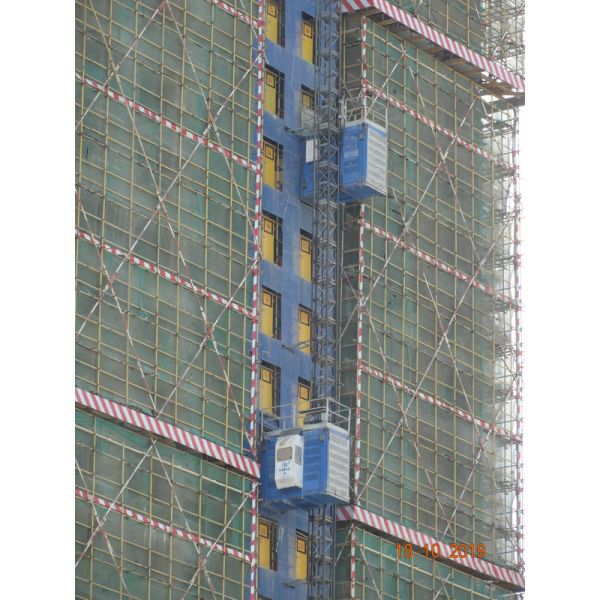

Frequency Conversion 3 Doors Rack Pinion Building Site Hoist
Frequency Conversion 3 Doors Rack Pinion Building Site Hoist
Specifications
Brand Name :
KANGBO
Model Number :
Building site rack and pinion hoist SC200BZ MP-B07 SC200/200BZ MP-B08
Certification :
TUV, CCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
In USD
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
25-30 days
Packaging Details :
Export package
Name :
Building Site Hoist
Application :
Building site transportation
Material :
Q345B steel
Production :
As per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Motor Control :
FC
Doors :
3 Doors
Description

High Speed Frequency Conversion 3 Doors Building Site Hoist

Building Site Hoist Advantage

1.Larger hoisting height, stronger transportation capacity

2. Equipped with fully safety devices to guarantee the safe working. Stable running and comfortable adaptability.

3.Variable -frequency construction elevator are safe, steady and comfortable.

4. The transmission system adopted three drive motors and three sets of reduction gears.........................

5.Imported Electrical components are adopted for the circuit control system. It is especially reliable and safe becasue of the mechanical overload limiting unit adopted.

6. The close standard section has the superior rust and damp resistance, easy assembly and disassembly.

7.This product has no counter weight, dismantling easily and working safetly.

Building Site Hoist Production and Materials


KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.

Building Site Hoist Technical Data

Item & Article No. SC200BZ, MP-B07; SC200/200BZ, MP-B08 Building Site Hoist
Payload Capacity 2,000 KG per Cage
Lifting Speed 0–46 m/min.
Max. Lifting Height 450 m
Cage Size (internal) 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage
Cage Doors 3 Doors, Entry Door + Exit Door + Side Door
Motor Control FC (Frequency Control)
Engine Power 2x15 KW per Cage
Gearbox Helical Gearbox
Safety Device Type Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 Phase
Type of Mast Square Column 650*650 mm with Bolted Rack
Length Mast Section 1.508 m
Rack Module 8
