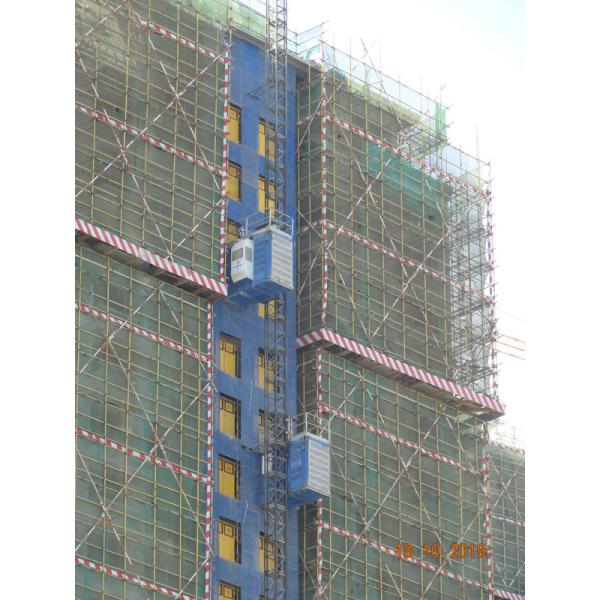

Intelligent Control Steel Construction Rack And Pinion Lift System
Intelligent Control Steel Construction Rack And Pinion Lift System
Specifications
Brand Name :
KANGBO
Model Number :
SC200/200
Certification :
TUV
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
30 days
Packaging Details :
Suitable for export
name :
Hoisting Equipment In Construction
Material :
Q345B cool roll steel plate
Application :
Construction site, plants, etc.
Production :
Processed by CNC machines, Laser, Robots in assembly line.
Color :
Multi Colored
Control :
Intelligent Control
Description

Intelligent Control Steel Hoisting Equipment In Construction

Hoisting Equipment In Construction Features


* Drive devices and cages are generic and interchangeable.
* Apply helical gearaboxes
* Centered racks to reduce Partial load torque of the machine and make it run more stably and smoothly.
* Flap door as loading/unloading ramp is availble.
* Easy access to electrical panels.

Hoisting Equipment In Construction Design


It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.

Hoisting Equipment In Construction Features and Advantages

The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.

Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.

Hoisting Equipment In Construction Parameters

Technical Data KP-B07, B08
Payload Capacity 2,000 kg
Lifting Speed 0–46 m/min.
Max. Lifting Height 250/400 m*
Cage Width (internal) 1.5 m
Cage Length (internal) 3.2 m
Cage Height (internal) 2.35 m
Motor Control FC control
Engine Power 2x15 kw
Gearbox Helical Reducer
Safety Device Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 phase
Mast Section Square column 650*650*1508 mm with bolted rack
Rack Module 8
* Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer.
