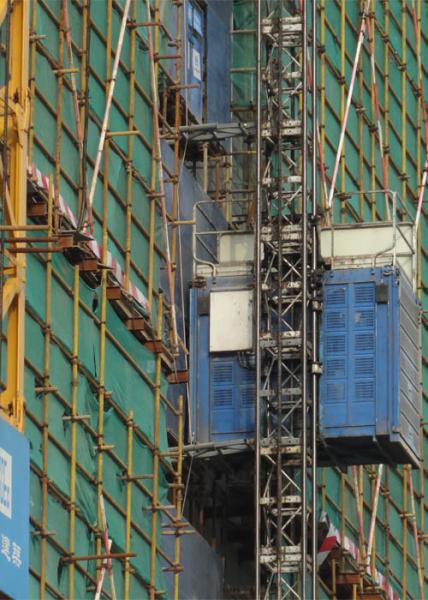

SC200-200 Rack Pinion Type 450M Construction Site Hoist
SC200-200 Rack Pinion Type 450M Construction Site Hoist
SC200-200 Rack Pinion Type 450M Construction Site Hoist
SC200-200 Rack Pinion Type 450M Construction Site Hoist
Specifications
Brand Name :
KANGBO
Model Number :
SC200BG KP-B11 SC200-200BG KP-B12
Certification :
TUV
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
150 sets per month
Delivery Time :
30 days
Packaging Details :
Export package
name :
Construction site hoist
Application :
Construction site, building site, bridges, chimney, plants, etc.
Design :
Truly modular design
Material :
Q355B cool roll steel plate
Processing :
Cut by Laser, Processed by CNC machines in tool fixtures.
Finishing :
Sandblasting, Painted and Galvanised
Motor Control :
Frequency Control (FC)
Description :
SC200/200 outdoor material transport platform
Description

Construction site hoist rack pinion SC200BG KP-B11 SC200-200BG KP-B12

Production and Materials
Implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production.

Apply best quality materials and components.

Features

Truly modular design
This material elevator components is standard and universal.

Smooth running, long work life

Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.

Technical Data

Item & Article No. SC200BG, KP-B11; SC200/200BG, KP-B12
Payload Capacity 2,000KG per Cage
Lifting Speed 0–60 meter/minute.
Max. Lifting Height 450 m
Cage Size (internal) 3.2(Length)*1.5((Width)*2.35(Height) meter
Motor Power 3x15 KW per Cage
Motor Control Frequency Control (FC)
Invertor Power (KW) 1*55KW per Cage
Gearbox PIELI Helical Gearbox
Anti-drop Safety Device Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 Phase
Mast Section Square Column 650*650*1508 mm with Bolted Rack
Rack module 8
