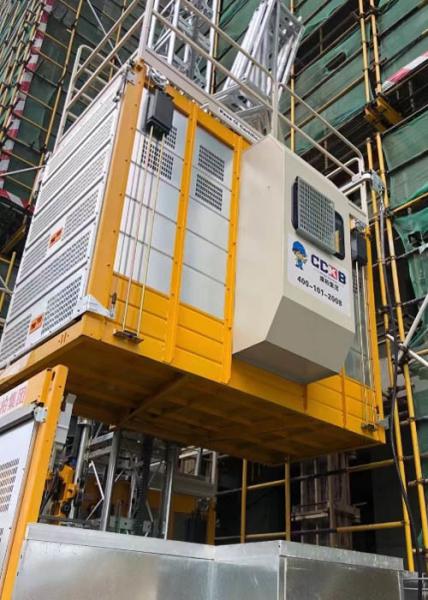

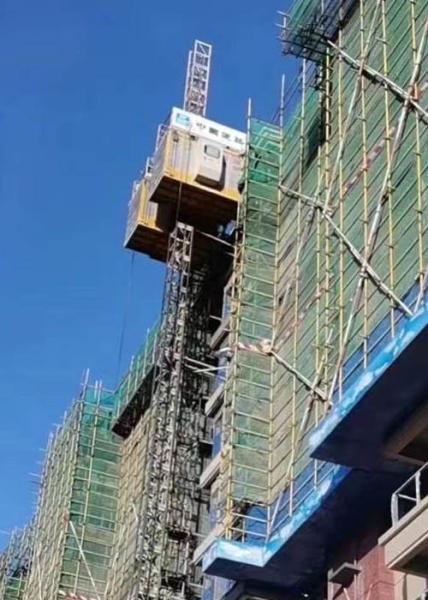

2 Ton Capacity Construction Building Hoist Of Passenger And Material Hoist
2 Ton Capacity Construction Building Hoist Of Passenger And Material Hoist
2 Ton Capacity Construction Building Hoist Of Passenger And Material Hoist
2 Ton Capacity Construction Building Hoist Of Passenger And Material Hoist
2 Ton Capacity Construction Building Hoist Of Passenger And Material Hoist
2 Ton Capacity Construction Building Hoist Of Passenger And Material Hoist
Specifications
Brand Name :
KANGBO
Model Number :
SC200/200
Certification :
TUV
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negociated in USD
Payment Terms :
L/C, T/T
Supply Ability :
300 units per month
Delivery Time :
25 days after receipt of down payment
Packaging Details :
In Containers
Application :
Construction site, building site, bridges, chimney, plants, etc.
Design :
According to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Drive Type :
Rack and Pinion
Motor Control :
VFC
Material :
Q355B steel
Process :
CNC machine tools and robots
Finishing :
Sand blasting and paint and galvanised
Color :
Yellow
Description

2 Ton Capacity Construction Building Hoist Of Passenger And Material Hoist

Product Advantage:
1. Adopting advanced technology and equipment,SC series construction Building Hoist is novel in design,reasonable in structure, simple in operation,covenient in assembly and disassembly,safe and reliable in working.
2. The SC Building Construction Hoist incorporates famous brand electrical components and main parts in transmission mechanism.The steel structure is made of high-quality steel material and welded with CO2 gas shield welding by robots.Surface paint is made with imported raw materials in brmiant ,long lasting colors.
3. The SC Building Construction Hoist is provided with reliable safety interlock devices,safety switch,breakage protection switch,upper and lower limits and limit switches ,etc,Progressive dropping safety devices and safety protection hook are provided.
4. The safety design and configuration fully comply to national standards.
Standard Model Specification for Construction Hoist:
Item SC200/200
Basic parameters Free standing height(m) 9
Max.Lifting height(m) 450
Rated Load(kg) 2*2000
Motor power(kw) (2*2)*11
Lifting speed(m/min) 36
Main cable 3*20mm2+2(National Standard)
Standard section Mast size(mm) 650*650*1508
Main limb material(steel tuble) φ76×4.5/Q345B
Cage cage inner dimensions(m) 3.2*1.5*2.35
2 Ton Capacity Construction Building Hoist Of Passenger And Material Hoist
Our Company
COMWINNING has been in the field of crane and hoist for more than 20 years, so we are experienced and professional in manufacturing and exporting all kinds of cranes (including Tower Crane, Construction Hoist,Overhead Crane, Gantry Crane, Jib Crane), wire rope electric hoist, electric chain hoist, hook block and crane other spare parts.
Warmly welcome our factory.
FAQ:
Please provide the following details so that we can provide exact price to you:
1- Single cage/Double cage?
2- Project height or Lift Height?
3- With inverter control or DOL?
4- Local Power Supply?
5- Other special requirements.
