ISO9001 Used Hydraulic Piling Rig Zr500l 122m Hydraulic Hammer Piling Machine
ISO9001 Used Hydraulic Piling Rig Zr500l 122m Hydraulic Hammer Piling Machine
Specifications
Brand Name :
ZOOMLINE
Model Number :
zr500l
Certification :
CE、ISO9001
Place of Origin :
china
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 set per month
Delivery Time :
confer with
Packaging Details :
Overall transport; Packaged in one flat rack.
Name :
Hydraulic Hammer Piling Machine
Brand :
ZOOMLINE
Model :
zr500l
Max.Crowd Cylinder Pull(kN) :
480
Drilling Diameter :
3000/3500(mm)
Depth :
122m
Description

Used ZOOMLINE Zr500l 122m Hydraulic Hammer Piling Machine Foundation Use

ZOOMLINE Zr500l Hydraulic Hammer Piling Machine Introduction

Hydraulic Hammer Piling Machine is a kind of mechanical equipment for the construction of bored piles by taking soil. The rotary bucket is driven by the drill rod to rotate and cut the soil, and then it is lifted to the periodic cycle operation of unloading the soil outside the hole. The rotary drilling rig adopts a multi-purpose modular design and can be used for the construction of a variety of piles. It is more convenient and efficient than the previous pile driver.

ZOOMLINE Zr500l Hydraulic Hammer Piling Machine Parameters

Torque(KN.M) 500
Drilling Diameter(mm) 3000/3500
Drilling Depth(m) inter-locking 101
Friction 122
Drilling Speed(r/min) 5.8～22
Engine Model QSX15-C600
Rated Power(kw) 447
Max.Crowd Force(kN) 480
Max.Crowd Cylinder Pull(kN) 480
Line Pull(main winch)(kN) 600
Line Speed(main winch)(m/min) 55
Line Pull(aux.winch)(kN) 112
Line Speed(aux.winch)(m/min) 60
Operating Mass(t) 185
Traction Force(kN) 918
Rope diameter(Main winch)(mm) 46
Rope diameter(auxiliary winch)(mm) 22

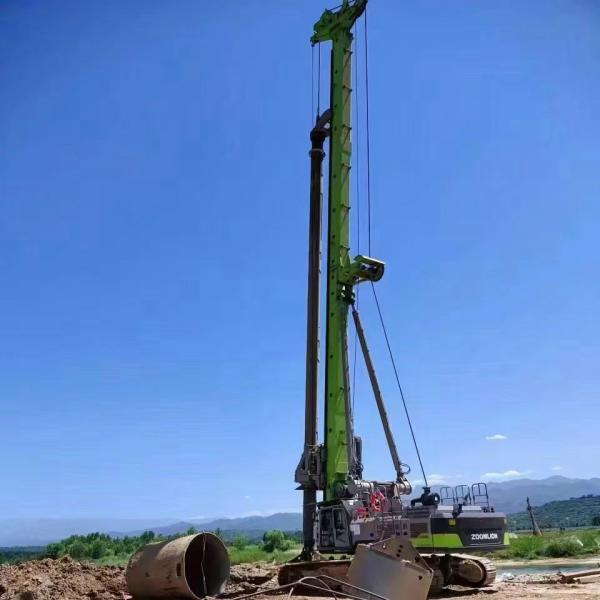

ZOOMLINE Zr500l Hydraulic Hammer Piling Machine Pictures

ISO9001 Used Hydraulic Piling Rig Zr500l 122m Hydraulic Hammer Piling Machine
