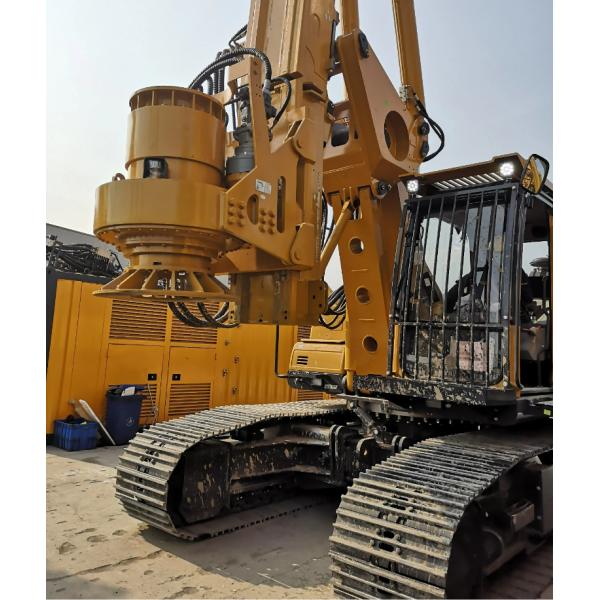

XCMG Xr180dii Hydraulic Piling Machine 1800mm Diameter
XCMG Xr180dii Hydraulic Piling Machine 1800mm Diameter
Specifications
Brand Name :
XCMG
Model Number :
Xr180dii
Place of Origin :
China
MOQ :
1
Price :
Negitionable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10
Delivery Time :
30 days after receiving down payment
Packaging Details :
No packaging
Brand :
XCMG
Model :
Xr180dii
HS Code :
87059091
Production Capacity :
1000/Year
Description

XCMG Official Manufacturer Xr180dii Rotary Dilling Rig

XCMG XR180DII Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.

Description
Unit
XR180D
Max. drilling diameter
mm
1800
Max. drilling depth
m
standard configuration
(5-section friction Kelly bar)46
optional configuration
(4-section-locking Kelly bar)
Allowable luffing scope (from center of drill rod to slewing center)
mm
3560~3900
Drilling rig dimension in working condition (L*W*H)
mm
8350*4200*20480
Drilling rig dimension in transport condition (L*W*H)
mm
14255*3000*3455
Weight of overall unit (standard configuration, excluding drilling tool)
t
58
Engine
Model
QSB6.7
Rated power/speed
kW
194/(2200r/min)
Max. working pressure of hydraulic system
MPa
35
Rotary drive
Max. torque
kN.m
180
Rotational speed
r/min
7~27
Crowd cylinder
Max. Pushing force
kN
160
Max. Pulling force
kN
180
Max. stroke
mm
5000
Main winch
Max. pulling force
kN
180
Max. single-rope speed
m/min
65
Diameter of the steel wire rope
mm
180
Auxiliary winch
Max. pulling force
kN
50
Max. single-rope speed
m/min
70
Diameter of the steel wire rope
mm
16
Rotary table slewing angle
°
360
Traveling
Max. traveling speed of the overall unit
km/h
1.5
Max. climbable gradient of the overall unit
%
35
Crawler
Width of crawler plate
mm
700
External width of crawler (min.-max.)
mm
2960~4200
Center distance between two longitudinal wheels of crawler
mm
4270
Average ground pressure
kPa
94

XCMG Xr180dii Hydraulic Piling Machine 1800mm Diameter
