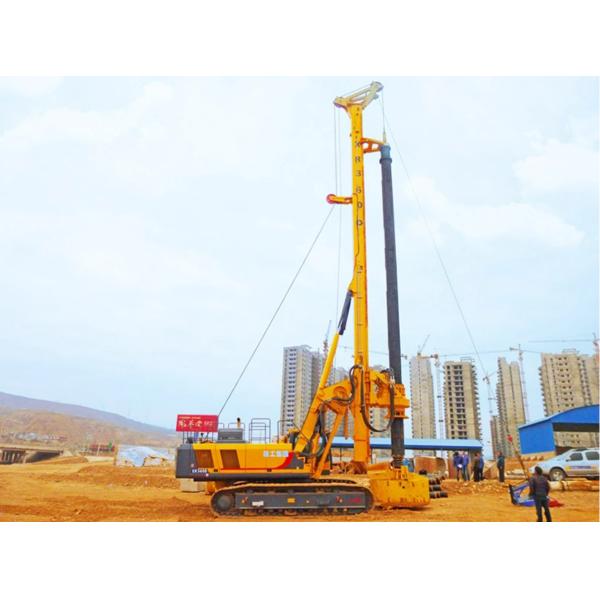

XCMG Official Xr360 Hydraulic Piling Machine Rotary Ground Drill Rigs
XCMG Official Xr360 Hydraulic Piling Machine Rotary Ground Drill Rigs
Specifications
Brand Name :
XCMG
Model Number :
Xr360
Place of Origin :
China
MOQ :
1
Price :
Negitionable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10
Delivery Time :
30 days after receiving down payment
Packaging Details :
No packaging
Brand :
XCMG
Model :
Xr360
Rotary Speed :
5-20r/Min
Type :
Crawler
Specification :
17380*3500*3810mm
Condition :
Used
Description

XCMG Official Xr360 Verticle Drilling Machine Hydraulic Rotary Ground Drill Rigs

The special hydraulic chassis for the rotating drill with extensible crawler is provided with the excellent stability and is convenient to transport. The imported Cummins turbo-supercharged engine (meeting EUIII standard) is powerful, and has sufficient power reserve, which can be operated in plateau. Its noise and emission meet the national standards. The constant power and the best output enable the complete machine to function at its best.

The main and auxiliary hydraulic systems are all adopt the technique of load sensor, which can increase the efficiency of hydraulic system and save energy. It uses heavy load hydraulic units to satisfy the all kinds operating status of drill.

Independent intellectual property rights of the intelligent control system, the application of CAN bus and the PLC control system, including the automatic and manual adjustment of the perpendicularity of the drill mast, the automatic display of the drilling depth, rotary automatic positioning control and the intellectual fault diagnosis control.

Three speed reducers are used in the power head. It can output high torque. The drill mast, which is made of the materials with high strength, is designed to box structure. The higher rigidity and anti-distortion can ensure the drilling accuracy effectively. The hinge provided with the bearing exempt from lubrication can turn neatly. The slag can be discharged at any point of 360° rotation.

Product Parameters
Type
Unit
Parameter
Max. drilling diameter
m
2.5
Max. drilling depth
m
102
Engine
Model
/
QSM11-C400
Power
kW
298
Rotary drive
Max. output torque
kN.m
360
Rotary speed
r/min
5-20
Crowd cylinder
Max. pull-down piston push
kN
240
Max. pull-down piston pull
kN
320
Max. pull-down piston stroke
m
6
Main winch
Max. pulling force
kN
320
Max. speed
m/min
72
Auxiliary winch
Max. pulling force
kN
100
Max. speed
m/min
65
Mast inclination
Lateral/ forwards/ backwards
°
±4/5/15
Undercarrige
Max. traveling speed
km/h
1.5
Max. grade ability
%
35
Min. clearance
mm
445
Track shoe width
mm
800
Distance between tracks
mm
3500-4800
Hydraulic system
Working pressure
MPa
32
Overall weight
Max. traveling speed of the overall unit
t
92
Dimension
Working condition
mm
11000*4800*24586
Transportation condition
mm
17380*3500*3810

XCMG Official Xr360 Hydraulic Piling Machine Rotary Ground Drill Rigs
