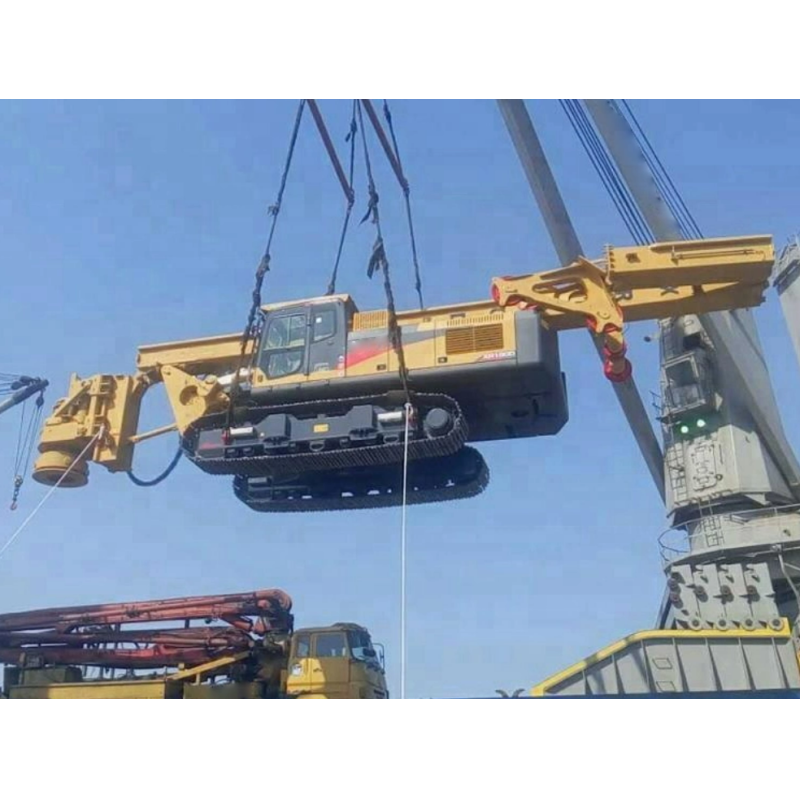

Xr180d Hydraulic Piling Machine Construction Piling Machine Hydraulic With Parts
Xr180d Hydraulic Piling Machine Construction Piling Machine Hydraulic With Parts
Specifications
Brand Name :
Xr180d
Model Number :
Xr180d
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negitionable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10
Delivery Time :
30 days after receiving down payment
Packaging Details :
No packaging
Brand :
Xr180d
Model :
Xr180d
Moving Type: :
Crawler
Max. Torque :
180 Kn.M
Specification :
14255*3000*3455 mm
HS Code :
8429521200
Description
Description Unit Parameter value
Max. drilling diameter mm 1800
Max. drilling depth m 60m -standard configuration
(5-section friction Kelly bar)46
46m -optional configuration
(4-section-locking Kelly bar)
Allowable luffing scope (from center of drill rod to slewing center) mm 3560~3900
Drilling rig dimension in working condition (L*W*H) mm 8350*4200*20480
Drilling rig dimension in transport condition (L*W*H) mm 14255*3000*3455
Weight of overall unit (standard configuration, excluding drilling tool) t 58
Engine Model QSB6.7
Rated power/speed kW 194/(2200r/min)
Max. working pressure of hydraulic system MPa 35
Rotary drive Max. torque kN.m 180
Rotational speed r/min 7~27
Crowd cylinder Max. Pushing force kN 160
Max. Pulling force kN 180
Max. stroke mm 5000
Main winch Max. pulling force kN 180
Max. single-rope speed m/min 65
Diameter of the steel wire rope mm 180
Auxiliary winch Max. pulling force kN 50
Max. single-rope speed m/min 70
Diameter of the steel wire rope mm 16
Rotary table slewing angle ° 360
Traveling Max. traveling speed of the overall unit km/h 1.5
Max. climbable gradient of the overall unit % 35
Crawler Width of crawler plate mm 700
External width of crawler (min.-max.) mm 2960~4200
Center distance between two longitudinal wheels of crawler mm 4270
Average ground pressure kPa 94
